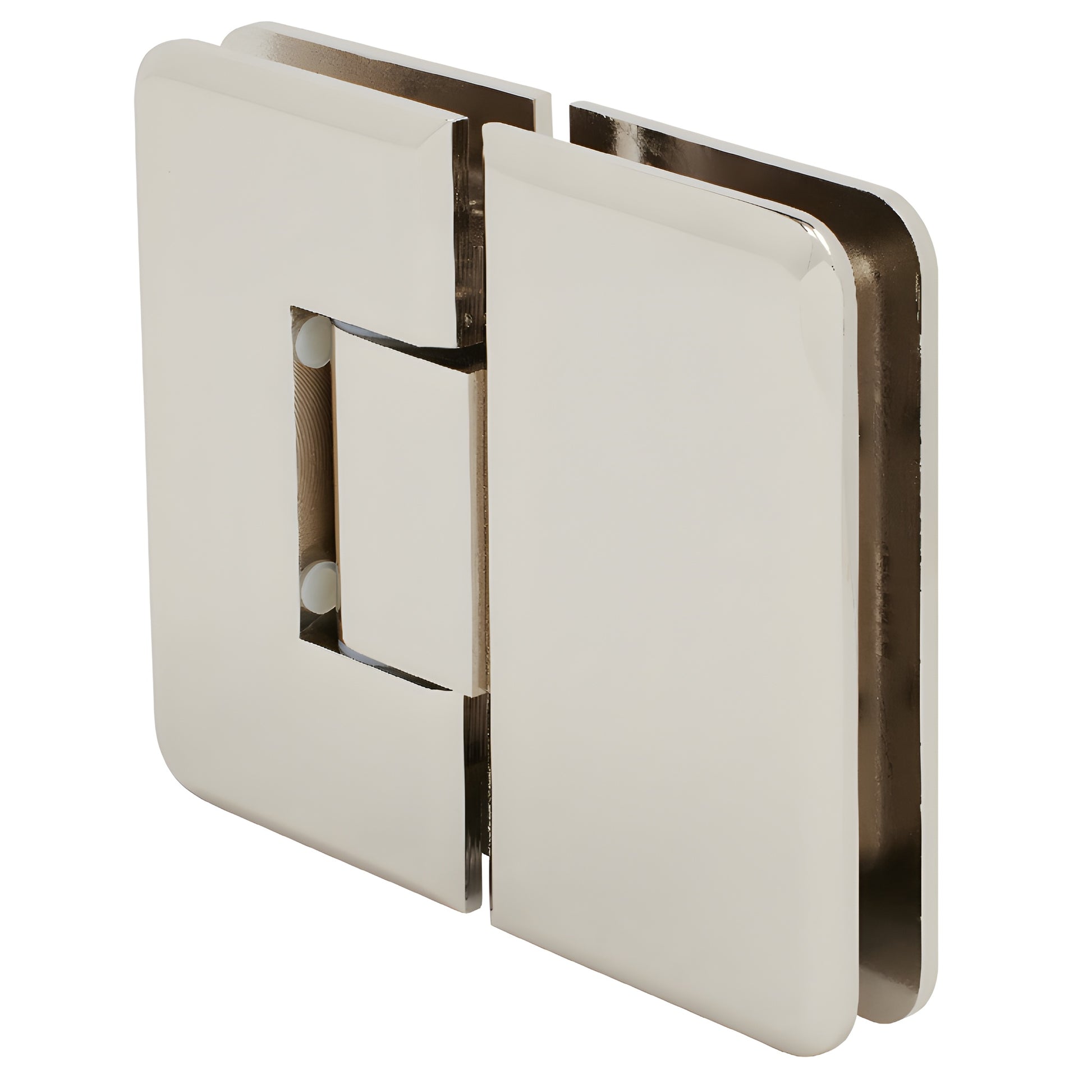

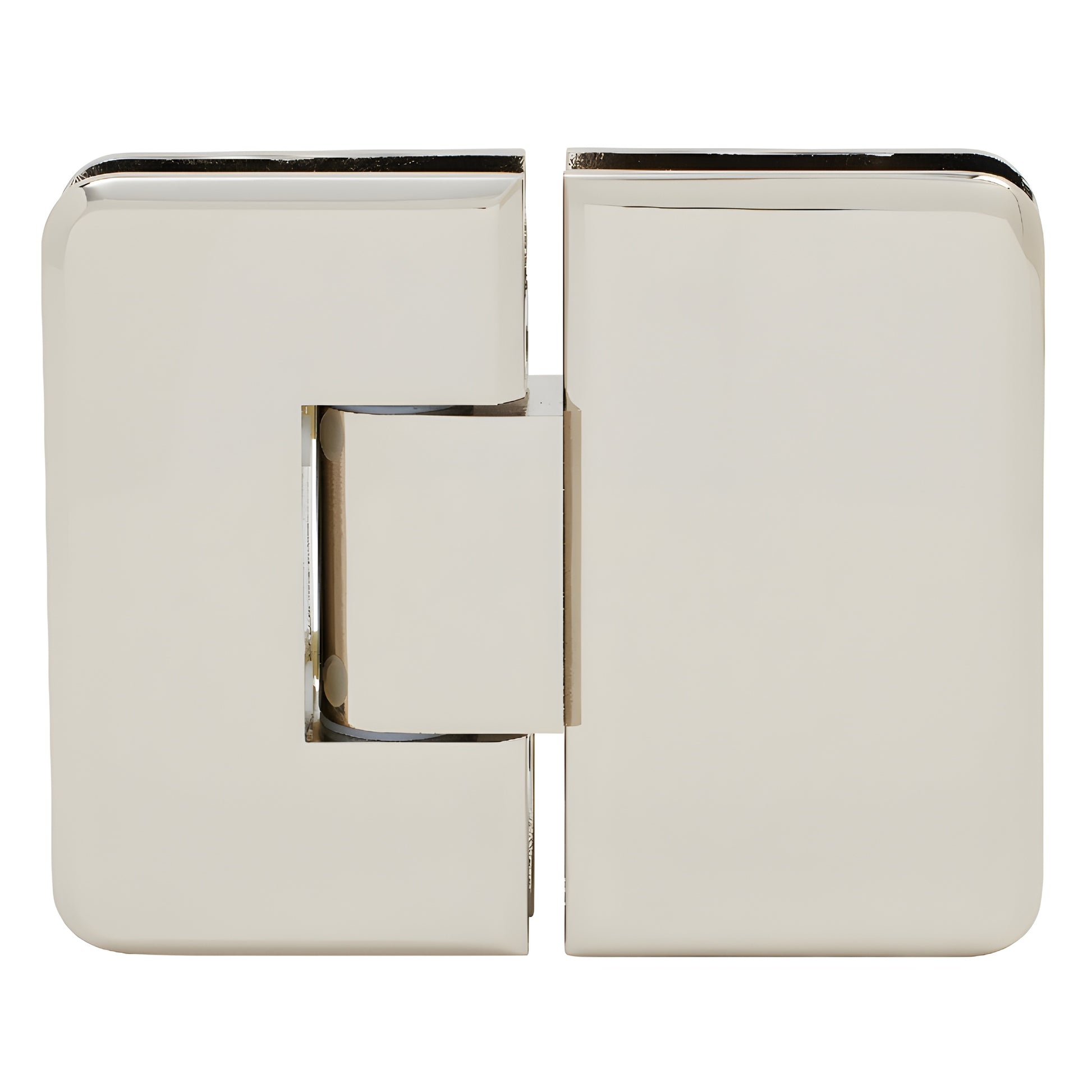

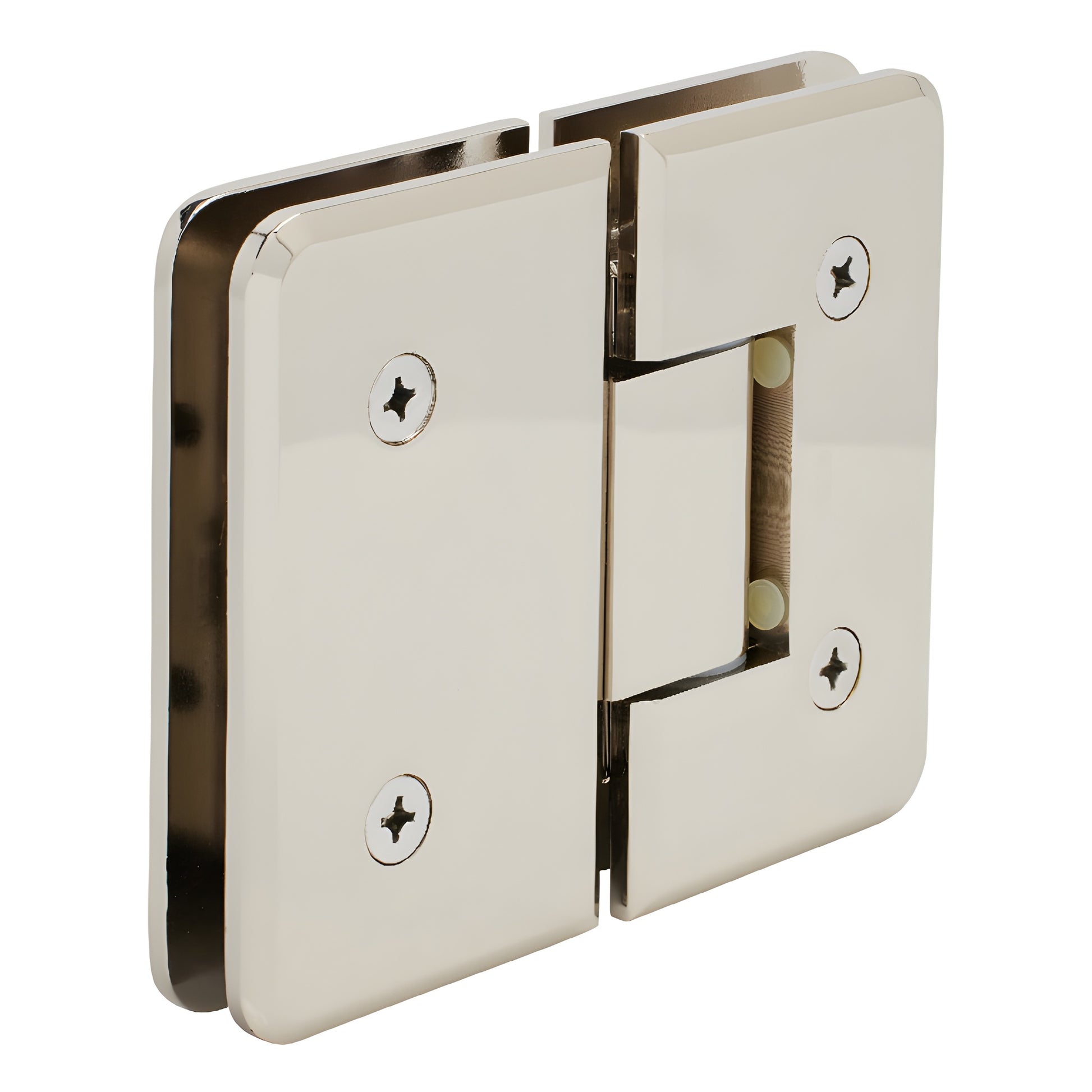

CRL Plymouth 180° Polished Nickel Glass-to-Glass Shower Hinge
Item# PLY180PN
Shipping Weight: 4.38 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.38 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Edge Profile
Beveled
Finish/Color
Polished Nickel
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

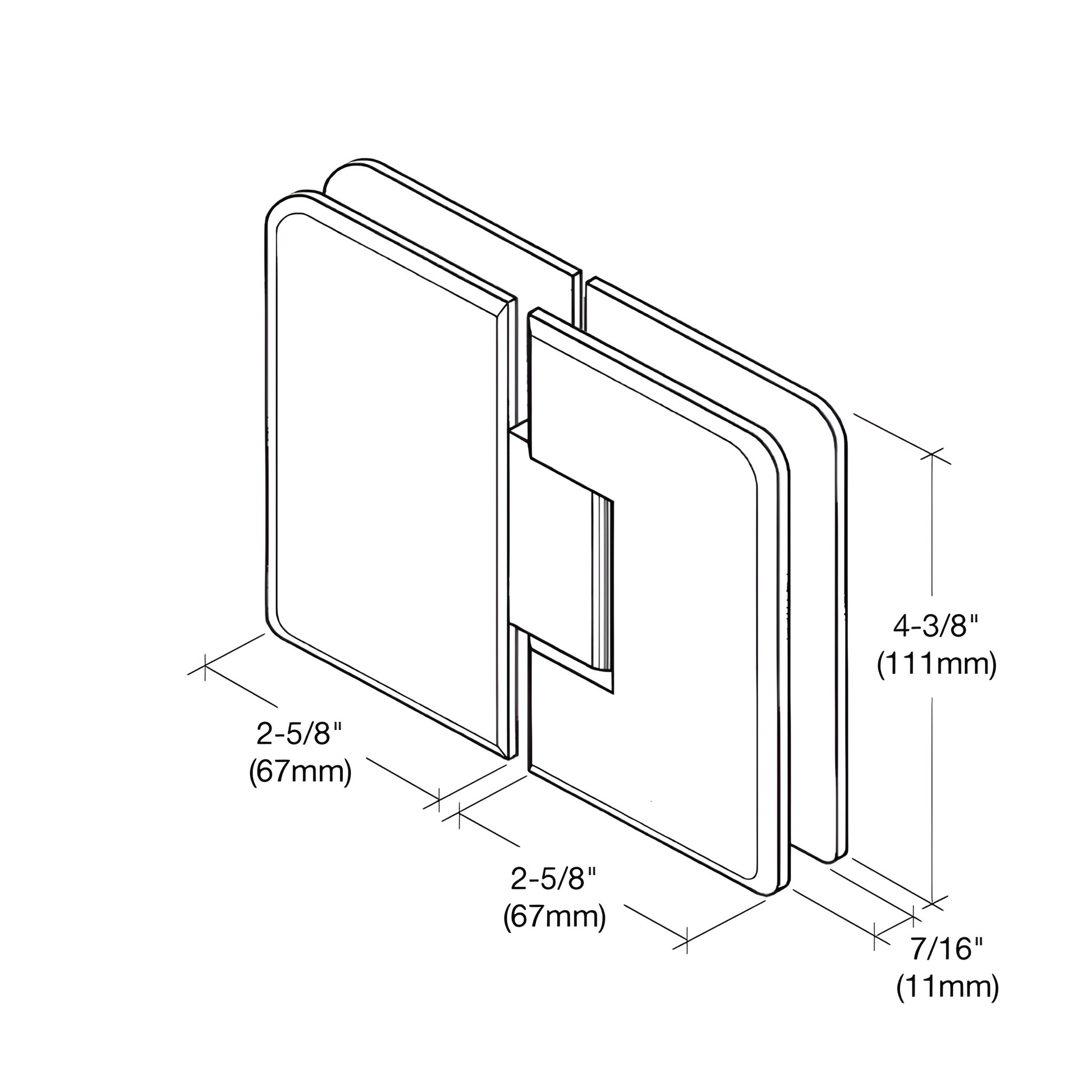

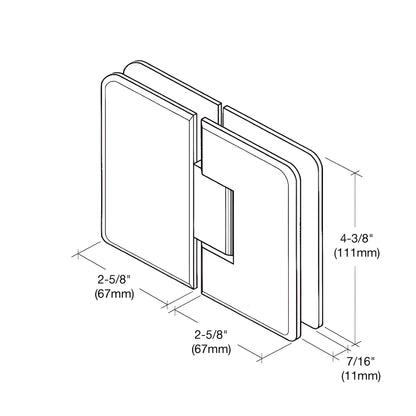

Height
4-3/8 in. (111 mm)
Material
Brass
Maximum Door Weight
140 lbs. (63.5 kg)
Maximum Door Width
39 in. (991 mm)
Mounting Type
Glass To Glass
Self-Centering
Yes
Series
Plymouth
Width - Door Portion
2-5/8 in. (67 mm)
Width - Sidelite Portion
2-5/8
- Excellent choice for heavier, wider frameless shower doors
- Integrated safety interlock and stiffening beam for superior glass control
- Wall-mount and 180° glass-to-glass hinge models available
- For 3/8" to 1/2" (10–12 mm) tempered safety glass
CRL Plymouth Series Hinges (SKU: PLY180PN) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges—delivering a clean, minimalist aesthetic with less visible hardware. These solid brass shower door hinges include an integrated stiffening beam to minimize clamping plate flex, giving exceptional holding power and reduced hardware movement. Heat-treated stainless steel springs increase durability and provide reliable self-centering performance.
Key Differentiators:
- Frameless shower hinge engineered for heavier glass doors
- Integrated safety interlock for enhanced panel control
- Increased self-centering force and durable heat-treated springs
- Available in wall-mount and 180° glass-to-glass configurations
NOTE: Do not use three hinges. Maximum two hinges per door.
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
INSTALLATION & USAGE:
Use only the included hinge template and follow CRL glass fabrication dimensions. Do not exceed the stated door weight or width capacities. These hinges are designed for residential and hotel shower use; for other applications contact CRL Shower Door Technical Sales for approval.
Product Warning:
Cut-out dimensions for CRL hinges may differ from other brands. If exact shipping weight is required to calculate costs, request verification from CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Optimize your frameless shower with CRL Plymouth Series hinges—order SKU PLY180PN today.
Templates
