CRL Polished Nickel 180° Double-Stud Clamp for Frameless Glass
CRL Polished Nickel 180° Double-Stud Clamp for Frameless Glass
Regular price
$58.50 CAD
Regular price
Sale price
$58.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GCB184PN
Shipping Weight: 9.184 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.184 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Nickel
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
Series
Traditional
Overview
- For 5/16" to 1/2" (8 to 12 mm) tempered glass
- Secures fixed panels for frameless shower enclosures
- Solid brass construction
- Provides an all-glass appearance as an alternative to U-channel
- Glass fabrication required to accommodate clamps (hole through each panel)

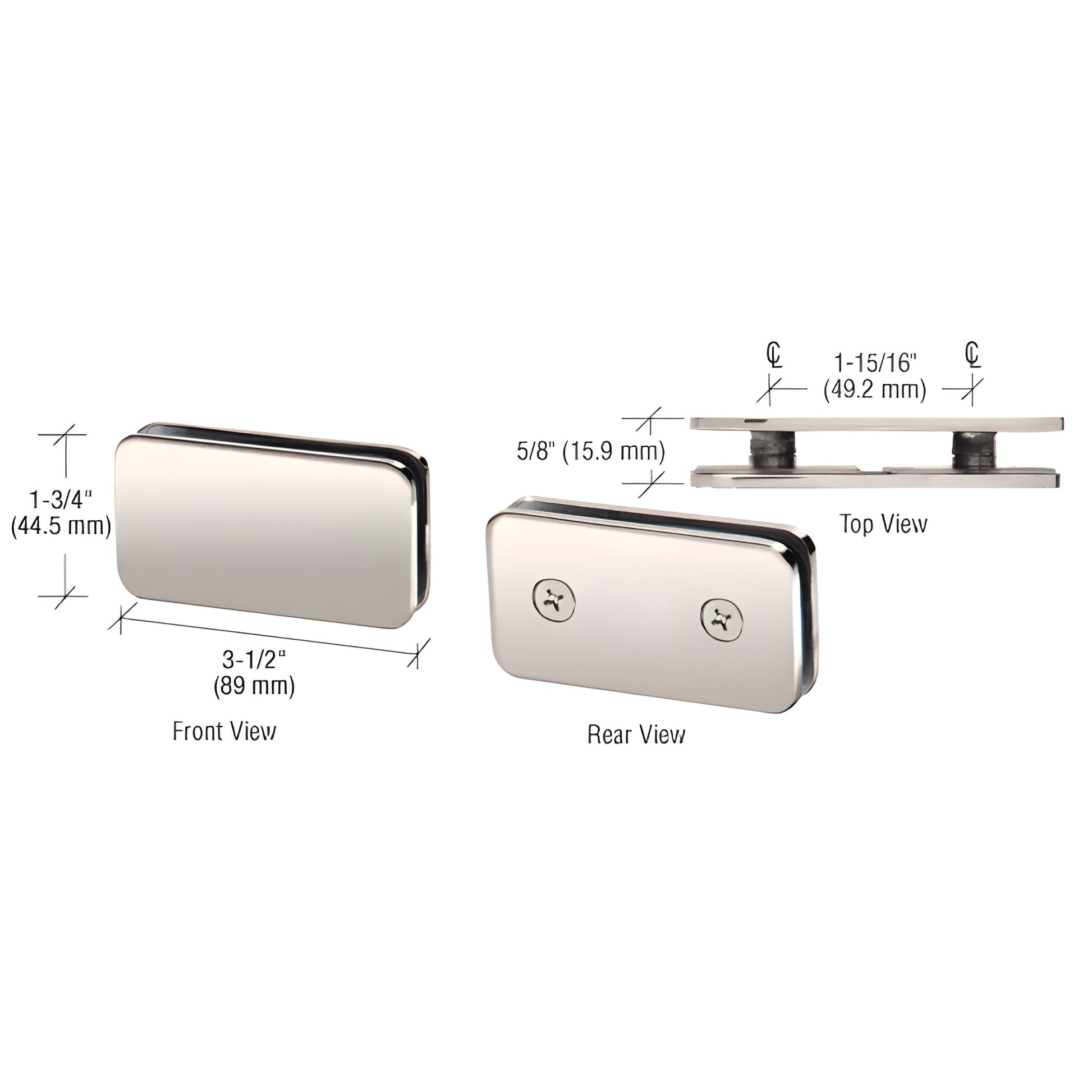

180 Degree double stud clamps connect two inline glass panels for added stability and a seamless look. A drilled hole in each glass panel (5/8" or 3/4" / 16 or 19 mm) is required. Ideal for frameless shower glass installations where an all-glass aesthetic is desired.
Our traditional solid brass glass clamps are finished to match CRL shower door hardware and include mounting screws and one set of clear gaskets. Extra clear gaskets (Cat. No. UCG77) are required for 5/16" (8 mm) glass and may be ordered separately.
SPECIFICATIONS:Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) per panel
Includes: One set of clear gaskets and mounting screws NOTE: Additional gasket set (UCG77) required for 5/16" (8 mm) glass.
Order GCB184PN today to finish your frameless shower enclosure with durable, solid brass 180° double stud glass clamps—contact us for availability or installation guidance.
