CRL Polished Nickel 90° Oversized Glass Clamp for Frameless Shower

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Secures fixed panels of glass for frameless shower enclosures
• Solid brass construction
• Helps achieve an all-glass look compared to traditional U-channel
• Glass fabrication required to accommodate clamps

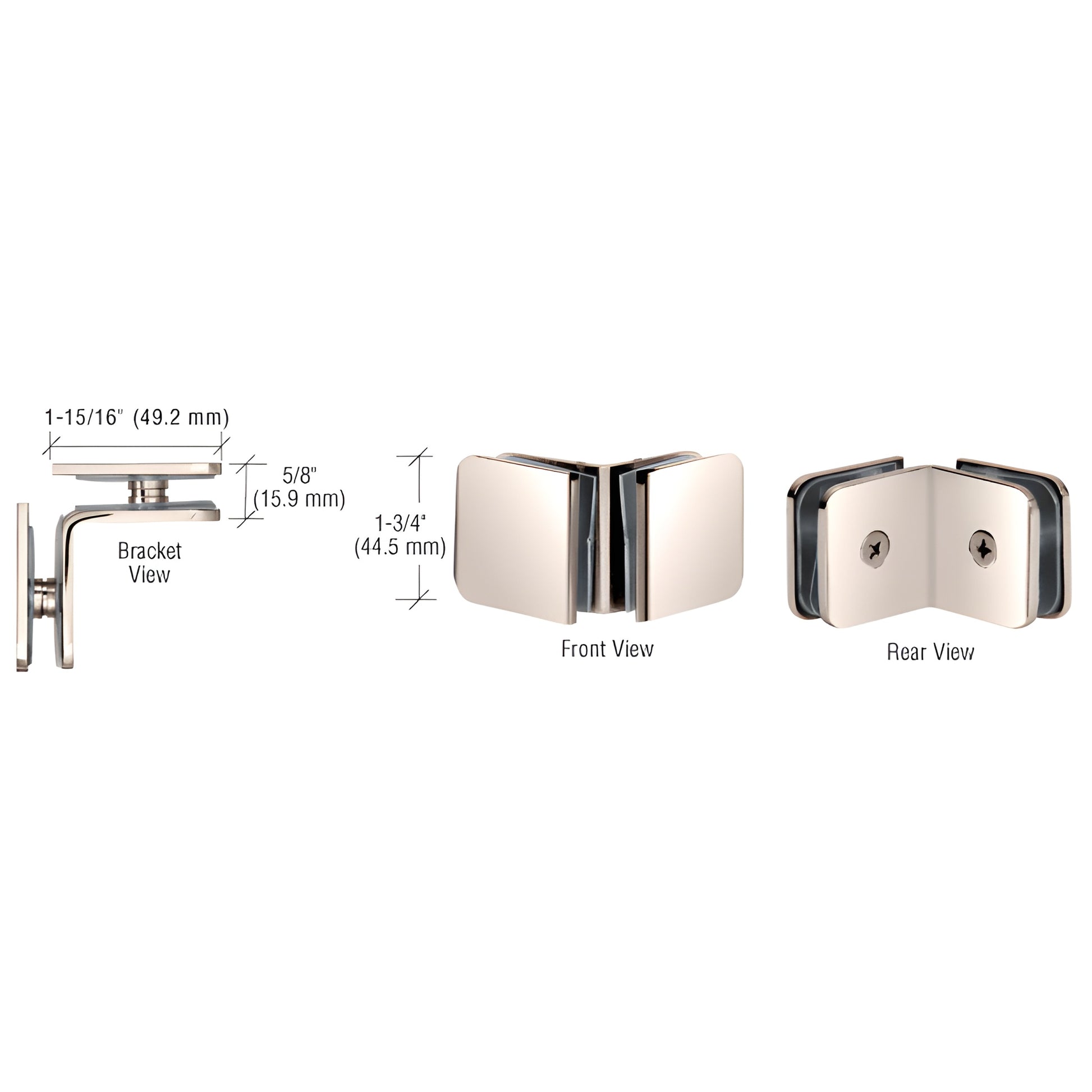

CRL Oversized 90 Degree Glass Clamps (SKU: GCB91PN) perform the same function as our standard 90° clamps but are recommended for 1/2" (12 mm) glass installations where hole placement must be 1-1/2 times the glass thickness from the edge. Ideal for frameless shower glass clamps and oversized 90 degree glass clamp applications.

Our traditional solid brass glass clamps are designed to secure fixed panels in contemporary frameless shower enclosures. They preserve the frameless appearance and provide a cleaner alternative to U-channel. Each clamp includes appropriate mounting screws and one set of clear gaskets. Extra clear gaskets (Cat. No. UCG77) are available separately.

SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel
Includes: Clear gaskets and wood screw for wall mount application
Note: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Order the GCB91PN solid brass oversized 90° glass clamp today to secure your frameless shower panels with a clean, all-glass look.
