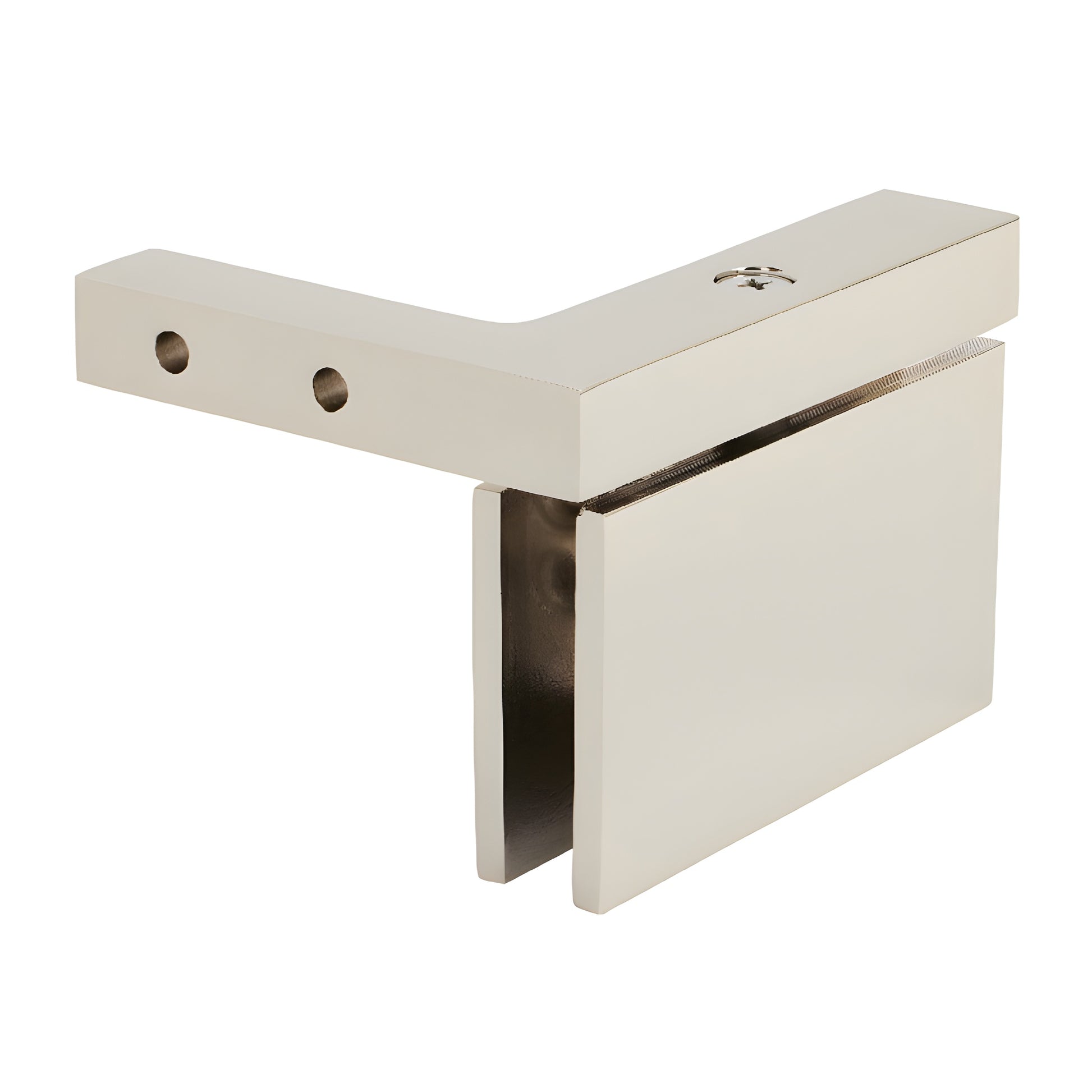

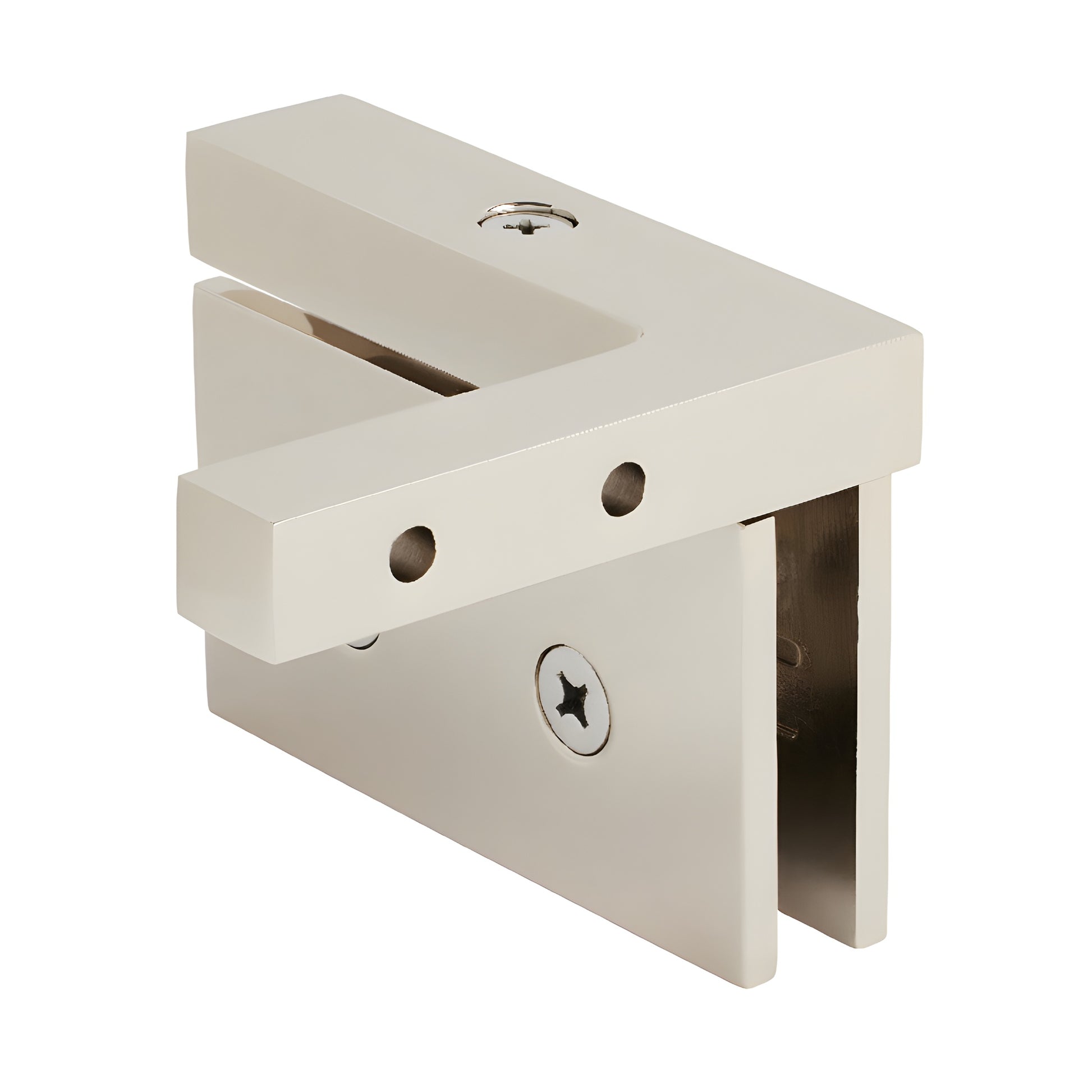

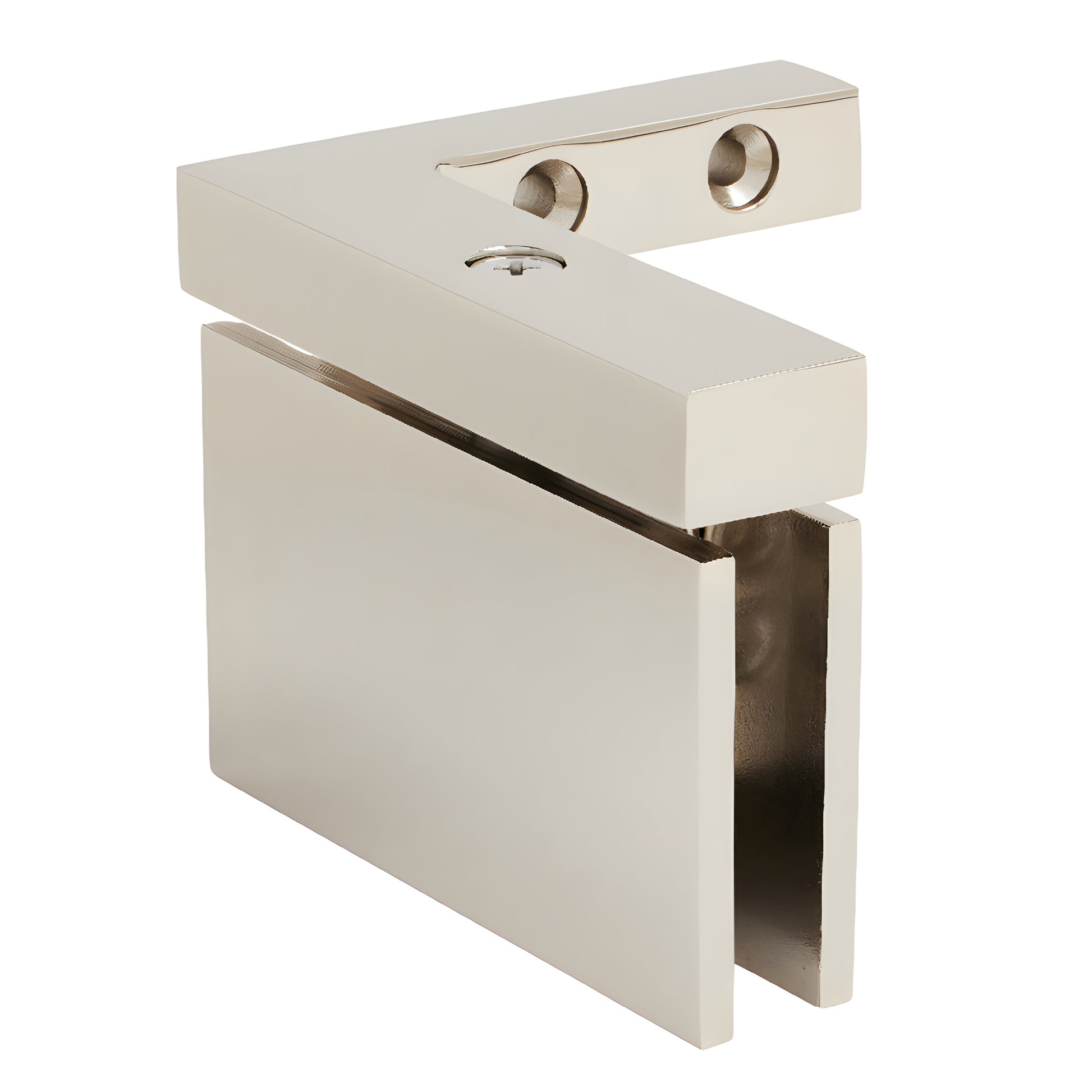

CRL Cardiff Polished Nickel Left-Hand Mount Glass Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside of shower)
• Available in several durable finishes
• 3 Year Warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are precision pivot hinges for frameless shower doors and tempered glass enclosures. Designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, these solid-brass pivot hinges offer high-retention self-centering action with four springs for reliable closing and long-term durability. Their offset bracket left-hand wall mount design allows the door to be inset from the wall, creating clearance for towel bars and other projections—ideal for tight or custom shower layouts. SKU: CAR05LPN.

Advantages & differentiators:

• Top-and-bottom mount design shows more glass for a minimalist frameless shower look.
• Reduces the number of cut-outs vs. standard side-mount glass-to-glass hinges—simplifies glass fabrication.
• Carry majority of weight on the bottom for stable operation; adaptable to a Deluxe Header System for partial-height enclosures.
• Optional 5° pre-set pivot pin sets (sold separately) let you alter the closing position by 5° and can be retrofitted after installation.

NOTE: Optional 5° Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). May be installed before or after hinge installation. Not included with hinge purchase.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm): supports up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount exposes more glass, reduces required cut-outs compared to side-mount hinges; Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
This hinge series is patented (Patent No. 5,297,313).

Product Warning:
