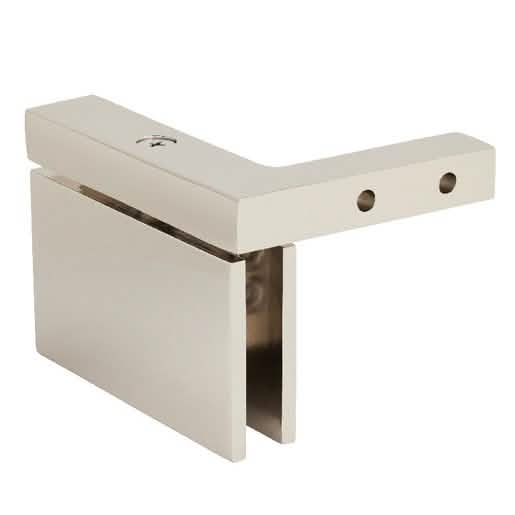

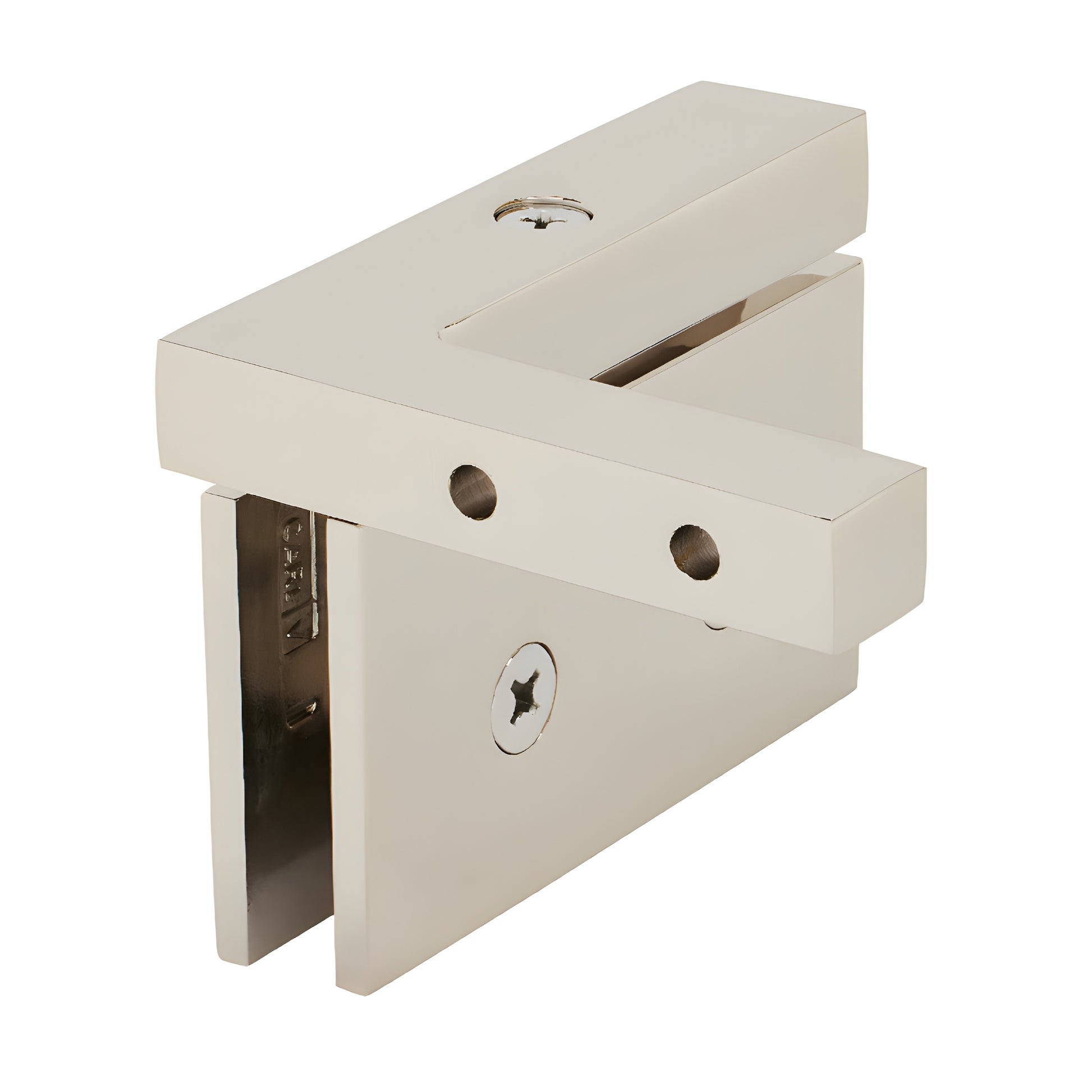

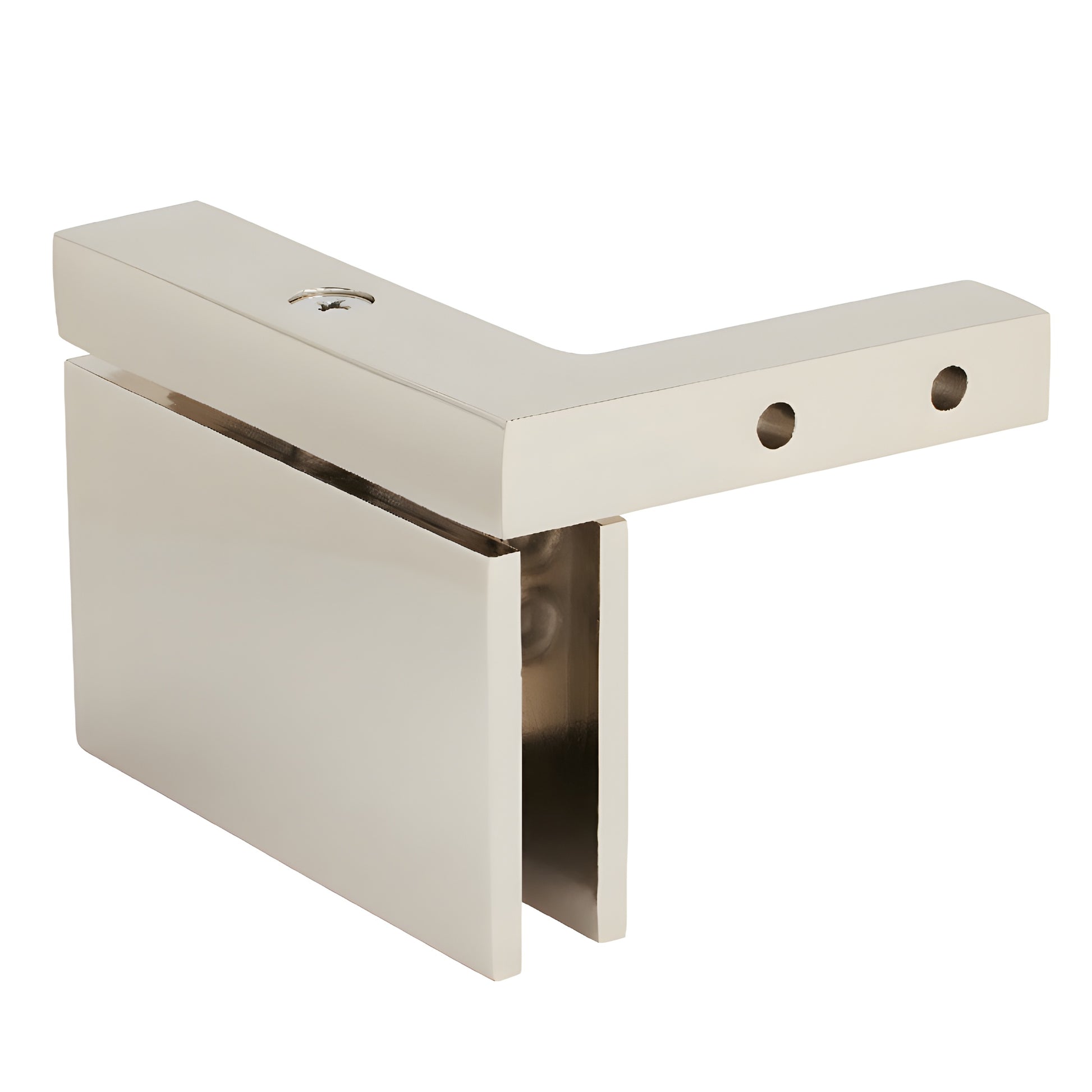

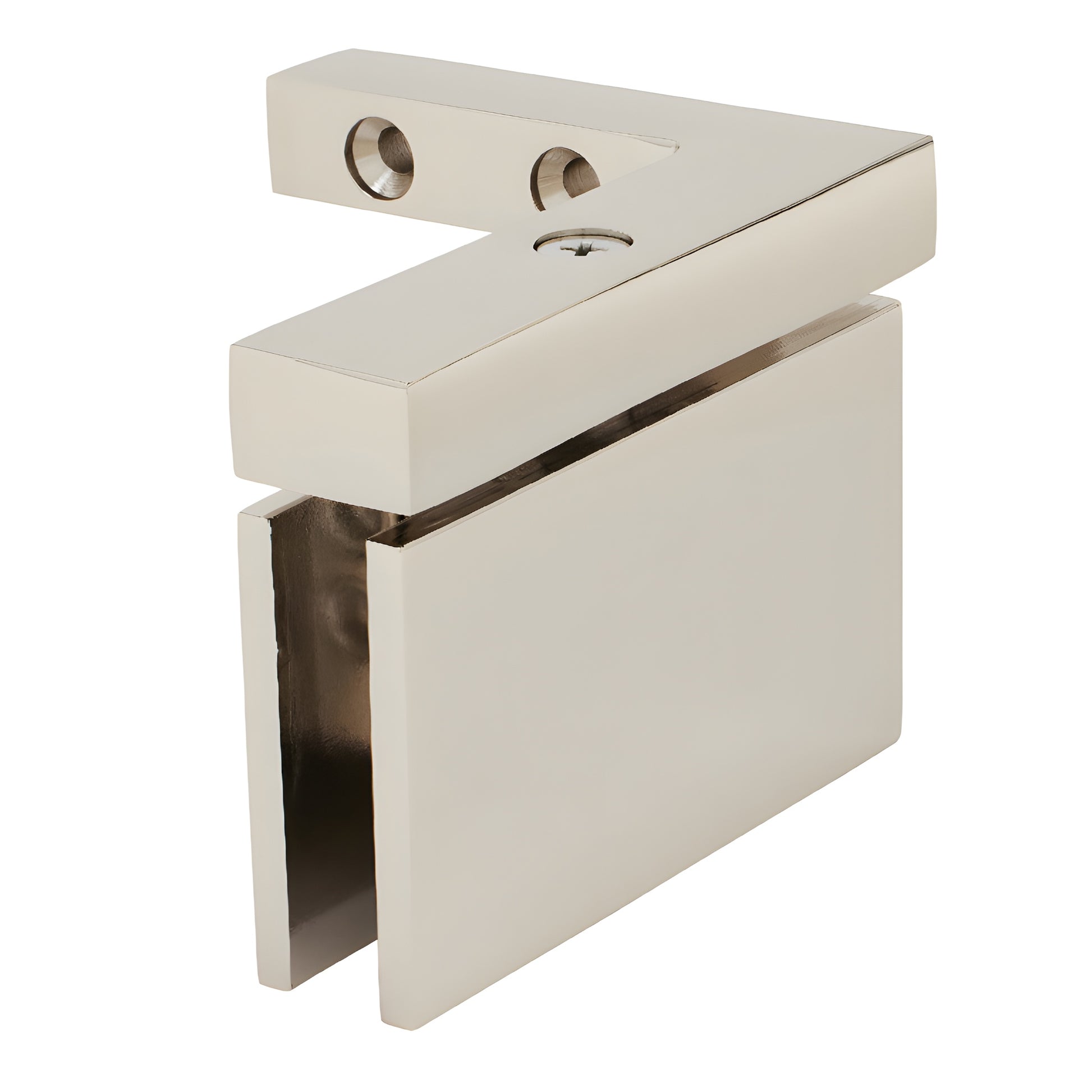

CRL Cardiff Series Polished Nickel Right-Hand Door Hinge

• Offset Bracket Wall Mount (Right-hand mount when viewed from outside of shower)
• Available in several beautiful finishes
• 3 Year Warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR05RPN) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application possibilities for shower doors and enclosures. These pivot-style shower door hinges carry most weight on the bottom, allow inset mounting from the wall for towel-bar clearance, and showcase more glass with a top-and-bottom mount design. Cardiff hinges are self-centering with four springs for maximum retention strength and offer full rotation swing. Optional 5º pre-set pivot pin sets (sold separately) let you alter the closing position by 5º and can be installed before or retrofitted after installation. The series is compatible with CRL’s Deluxe Header System for partial-height enclosures.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). Not included with hinge purchase.

Using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount shows more glass and reduces required glass cut-outs vs. standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; CRL cut-out dimensions may differ from other brands.
