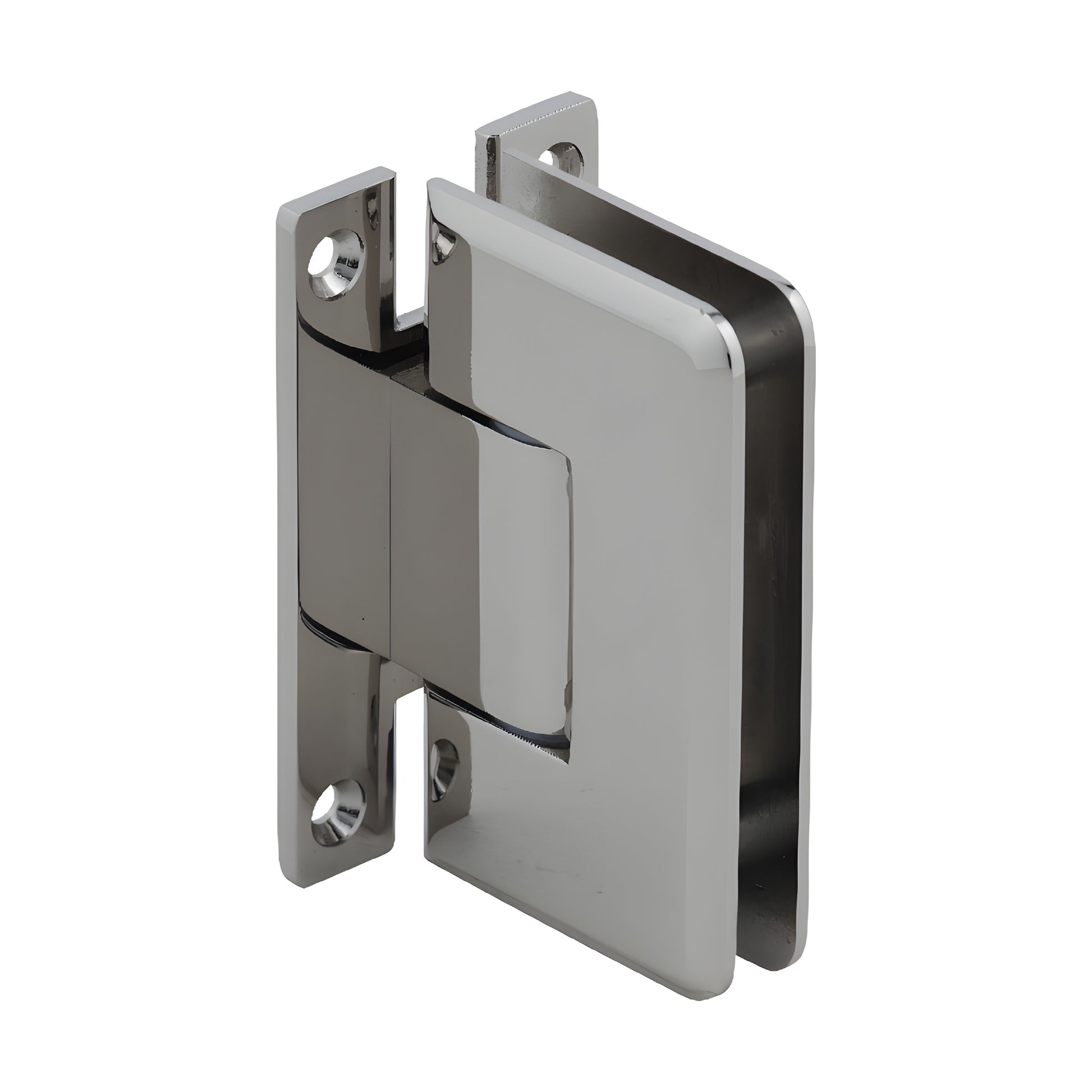

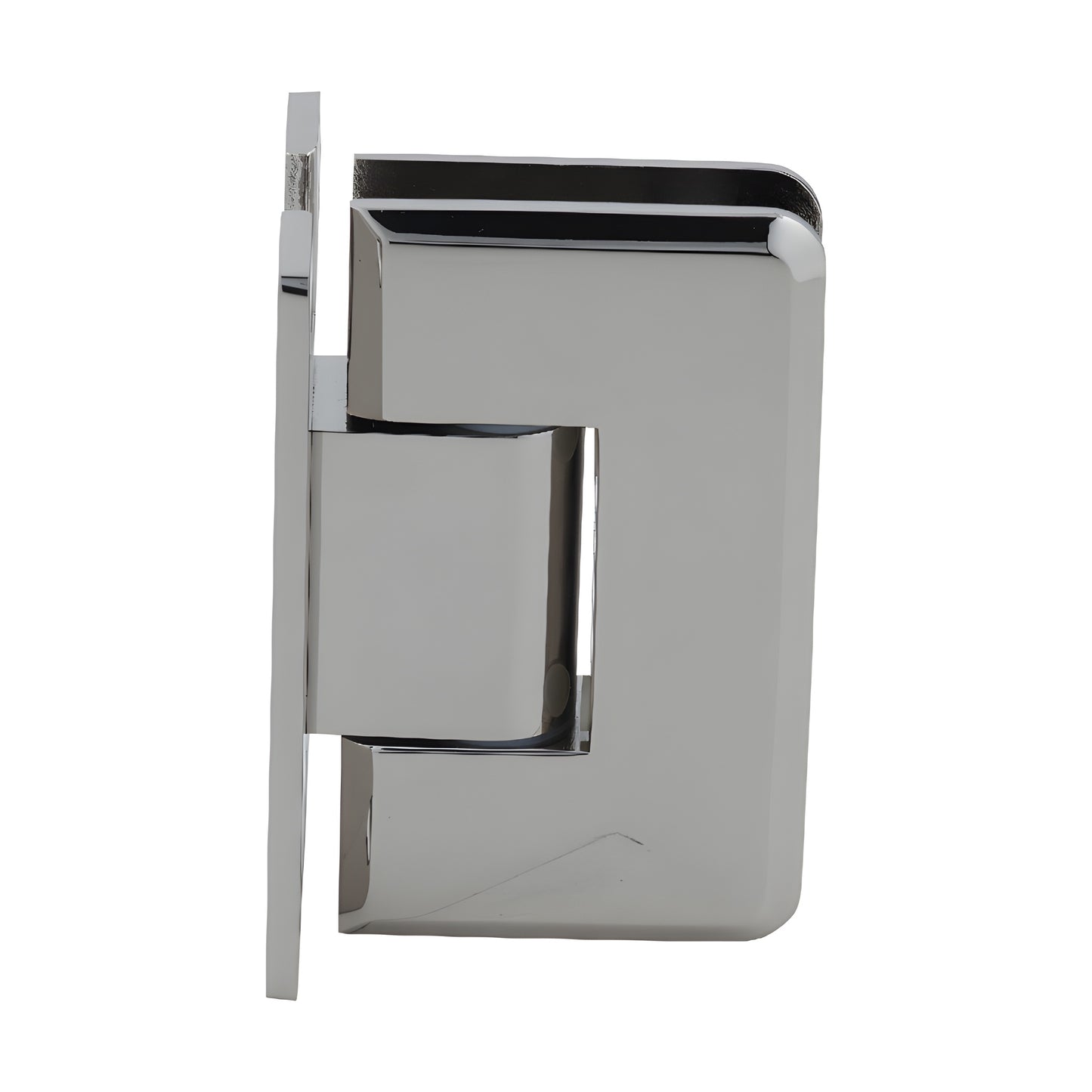

CRL Cologne 337 Polished Nickel Adjustable Hinge for Glass Door

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes

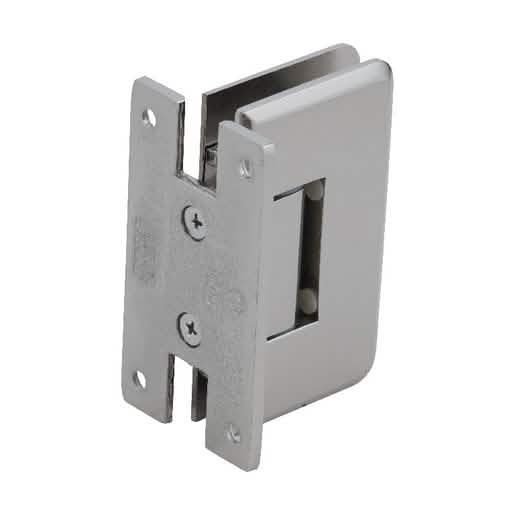

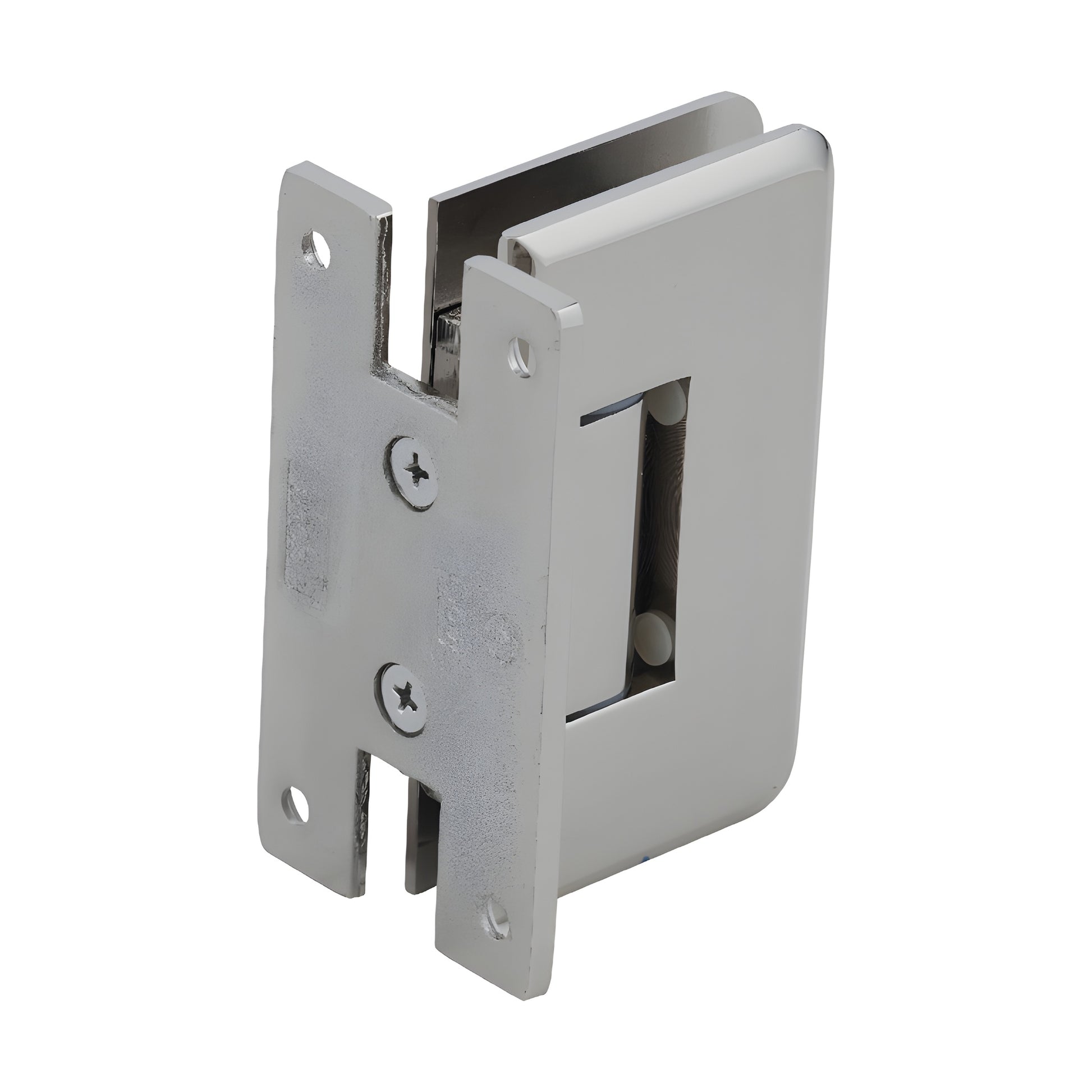

• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

CRL Adjustable Cologne Series — premium adjustable glass shower door hinge engineered for solid brass construction, smooth self-centering action, and on-site angle adjustments. Designed for frameless and semi-frameless glass shower doors using 3/8"–1/2" tempered safety glass. Ideal long-tail keywords: adjustable glass shower door hinge, solid brass shower hinge for 10mm glass, 12mm hinge for frameless shower door.

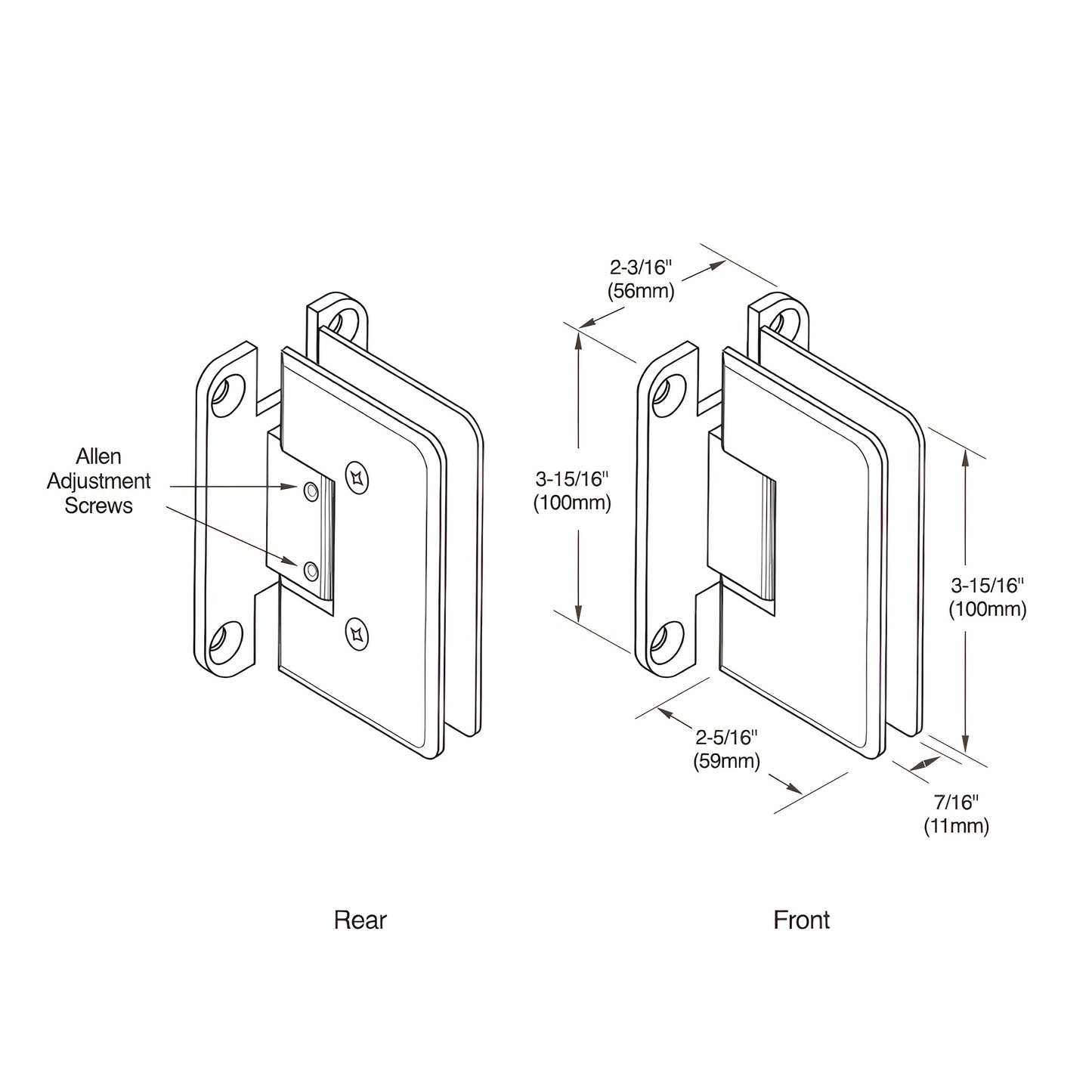

Adjustment to the door angle (up to 90º) is made after installation. Loosen the Allen set screws, rotate the door to the desired closed position, then tighten — the hinge self-centers when within 15º of the closed position. Door swings 90º inward and 90º outward from the factory set position. For outward-swing applications with a clear door jamb, the hinge can be set to close 5º inside the shower to seat snugly against the jamb.

Load Capacity & Installation:

• Two hinges: Holds up to 110 lb (50 kg) with maximum door width 36" (914 mm).
• Three hinges: Holds up to 140 lb (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90º without removing the door
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (at factory set position)
Closing Type: Self-Centering when within 15º of Closed Position
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact CRL Technical Sales.

Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — cut-out dimensions may not match other brands
