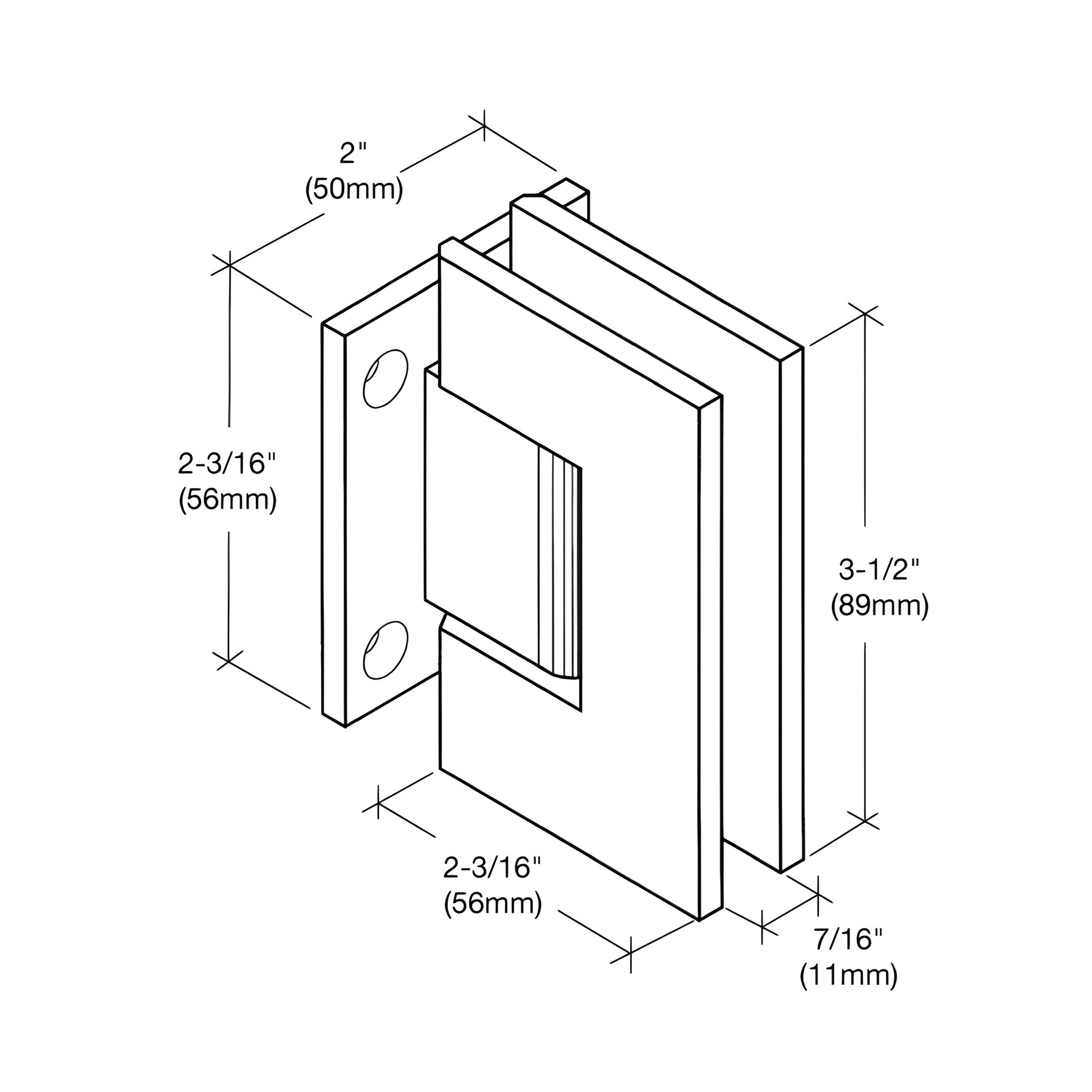

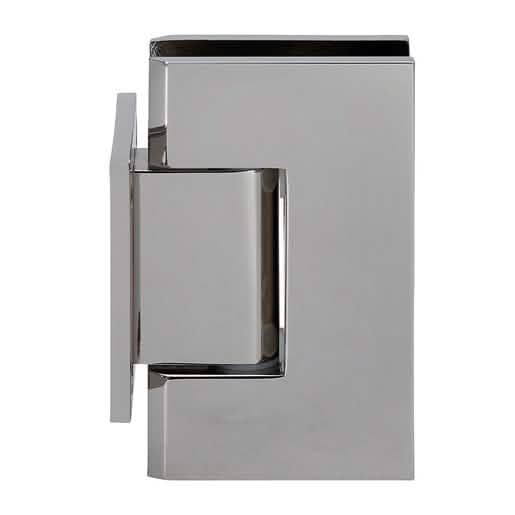

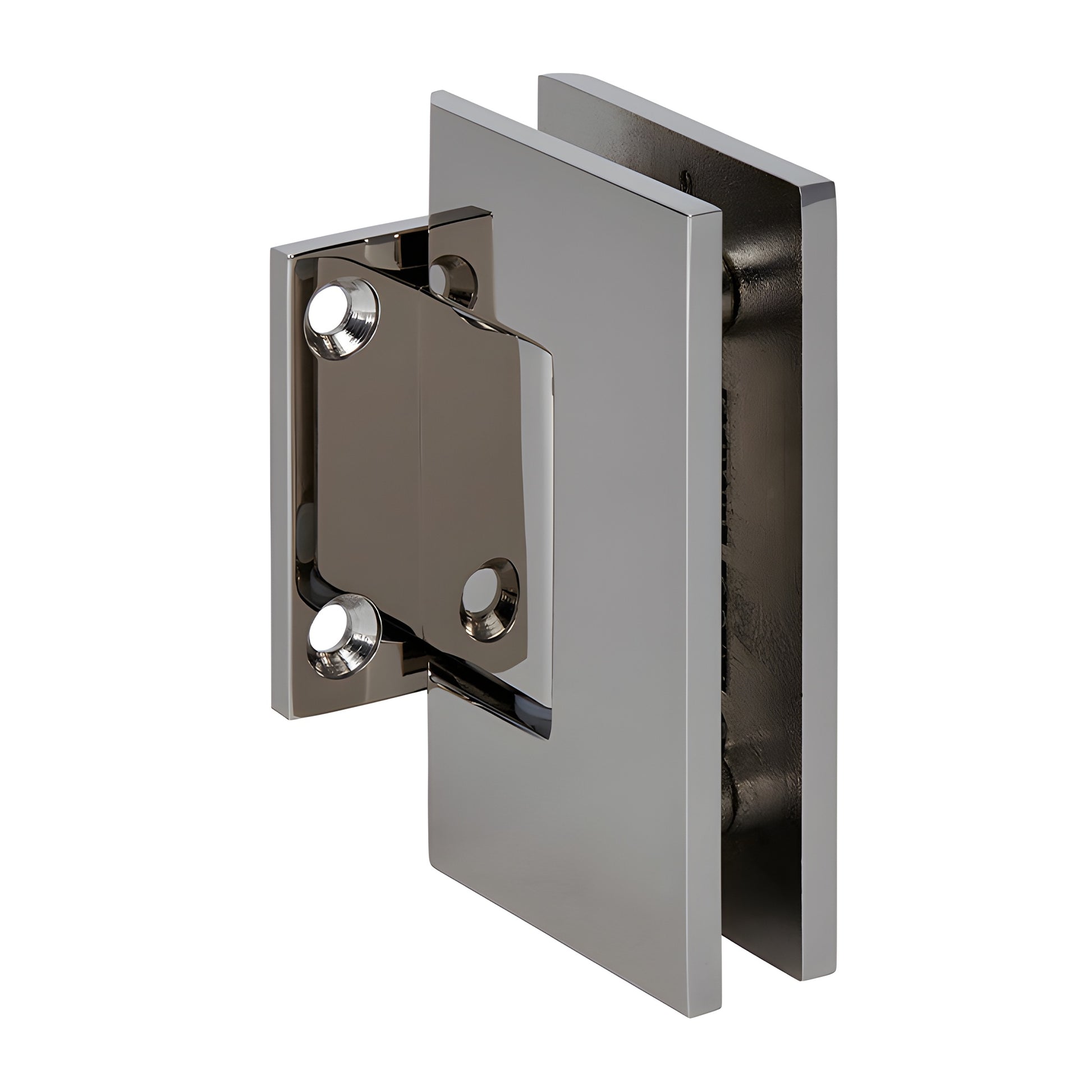

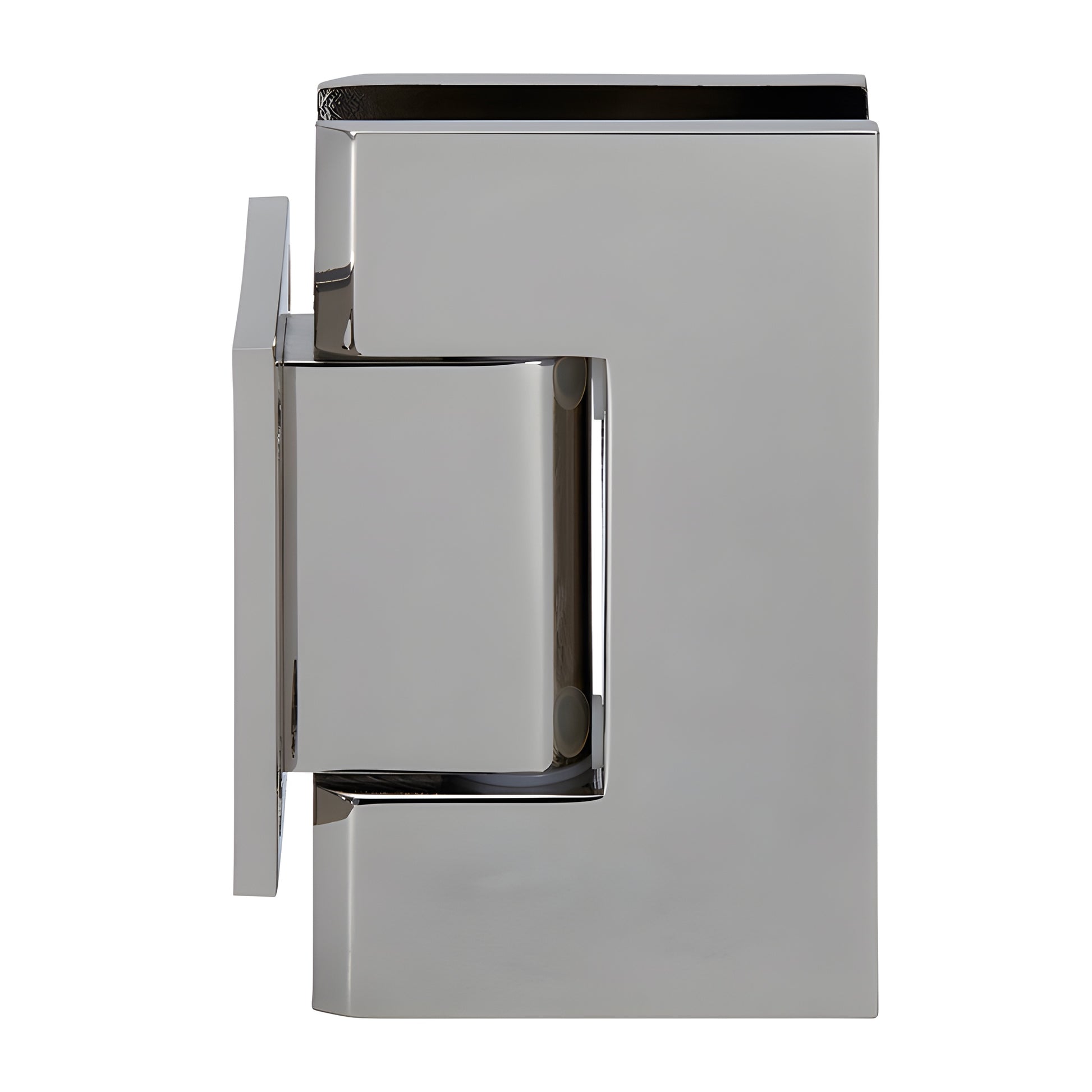

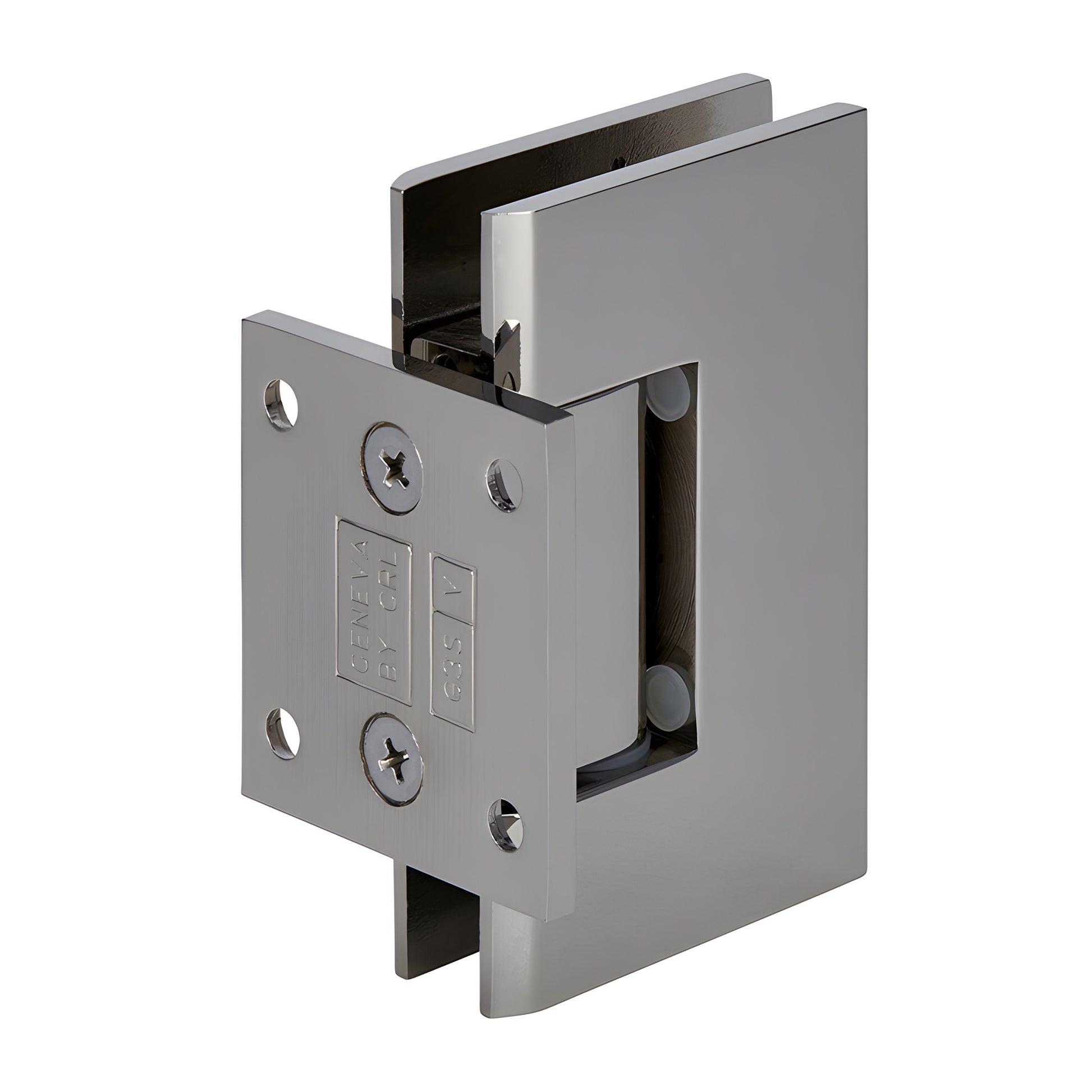

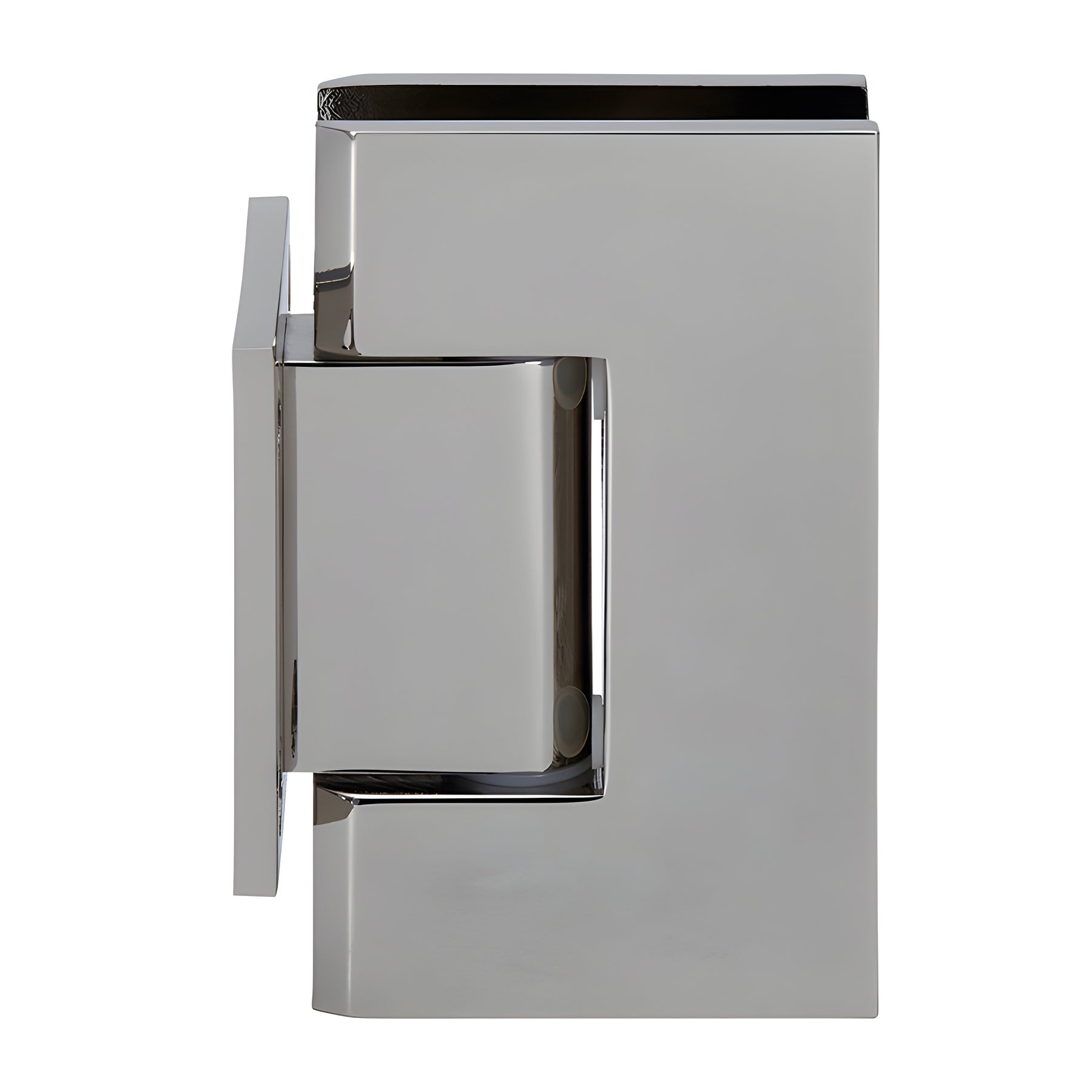

CRL Geneva 074 Polished Nickel Wall-Mount Door Hinge Short Back Plate

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple decorative finishes
• Three-year warranty
• Wall-mount short back plate standard model
• For use with monolithic tempered safety glass

CRL Geneva Series professional glass shower hinges (SKU: GEN074PN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six hinge styles — three Wall Mount and three Glass-to-Glass — provide design flexibility for frameless glass shower enclosures. Made of solid brass with stainless-steel springs and pins, these brass shower door hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with one side marked 90° (standard) and the opposite side marked 85° (5° tighter closure). Standard hinges ship with the 90° side active; offset models are pre-set to 85°. The pin can be rotated to switch the closing angle.

Custom Pivot Pins: Custom Pivot Pins (Cat. No. GENP1N) can be ordered for off-angle shower doors up to 45°. Specifying a custom angle may affect glass dimensions and enclosure aesthetics; contact Technical Sales Shower Door Department for assistance.

Performance: with 5/16"–1/2" (8–12 mm) glass, two hinges support up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm); three hinges support up to 120 lbs (54 kg) and a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Factory-set standard 0° closing or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless-steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Note: Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available upon request — contact Technical Sales Shower Door Division for pricing and lead times.

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge; cut-out dimensions may differ from other brands.
