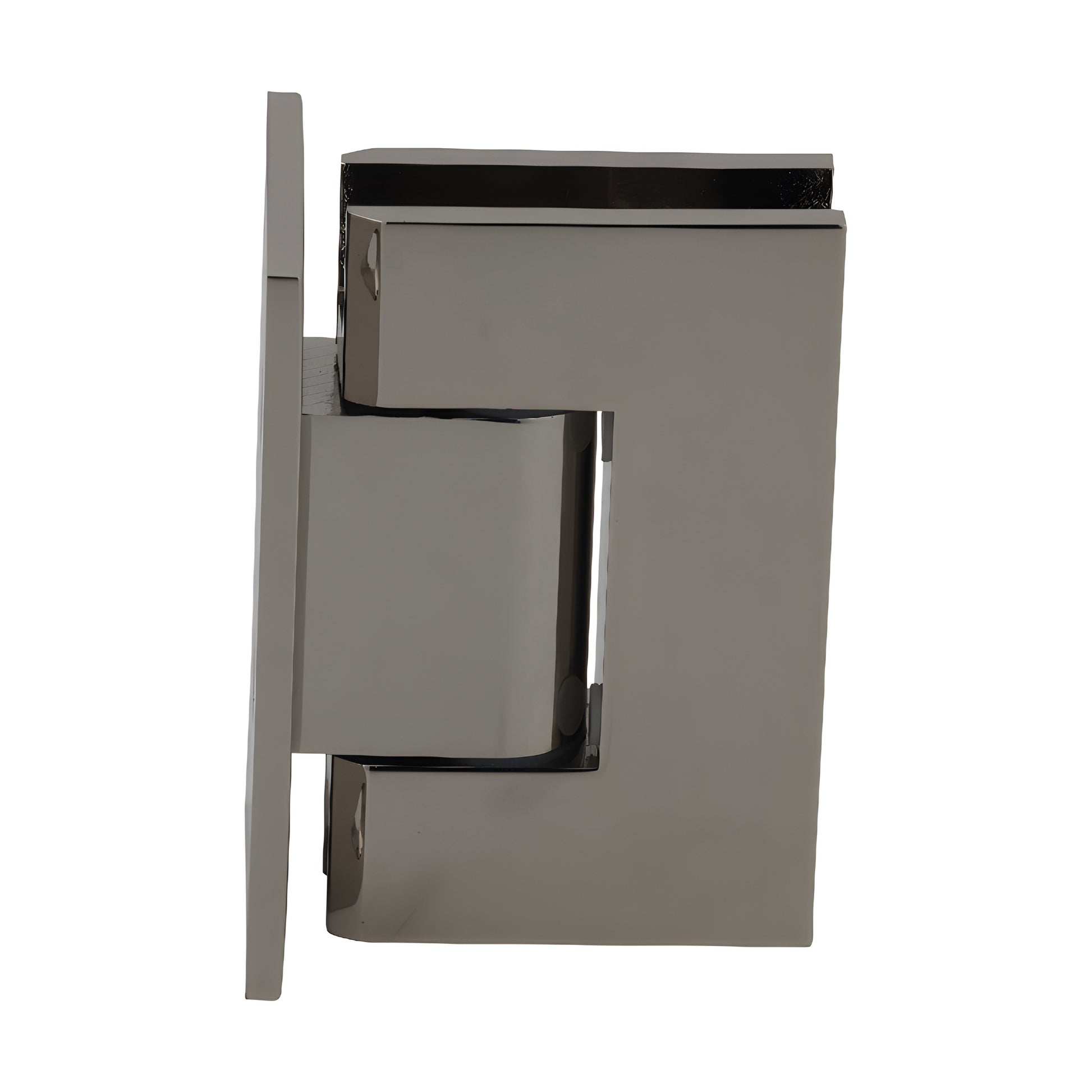

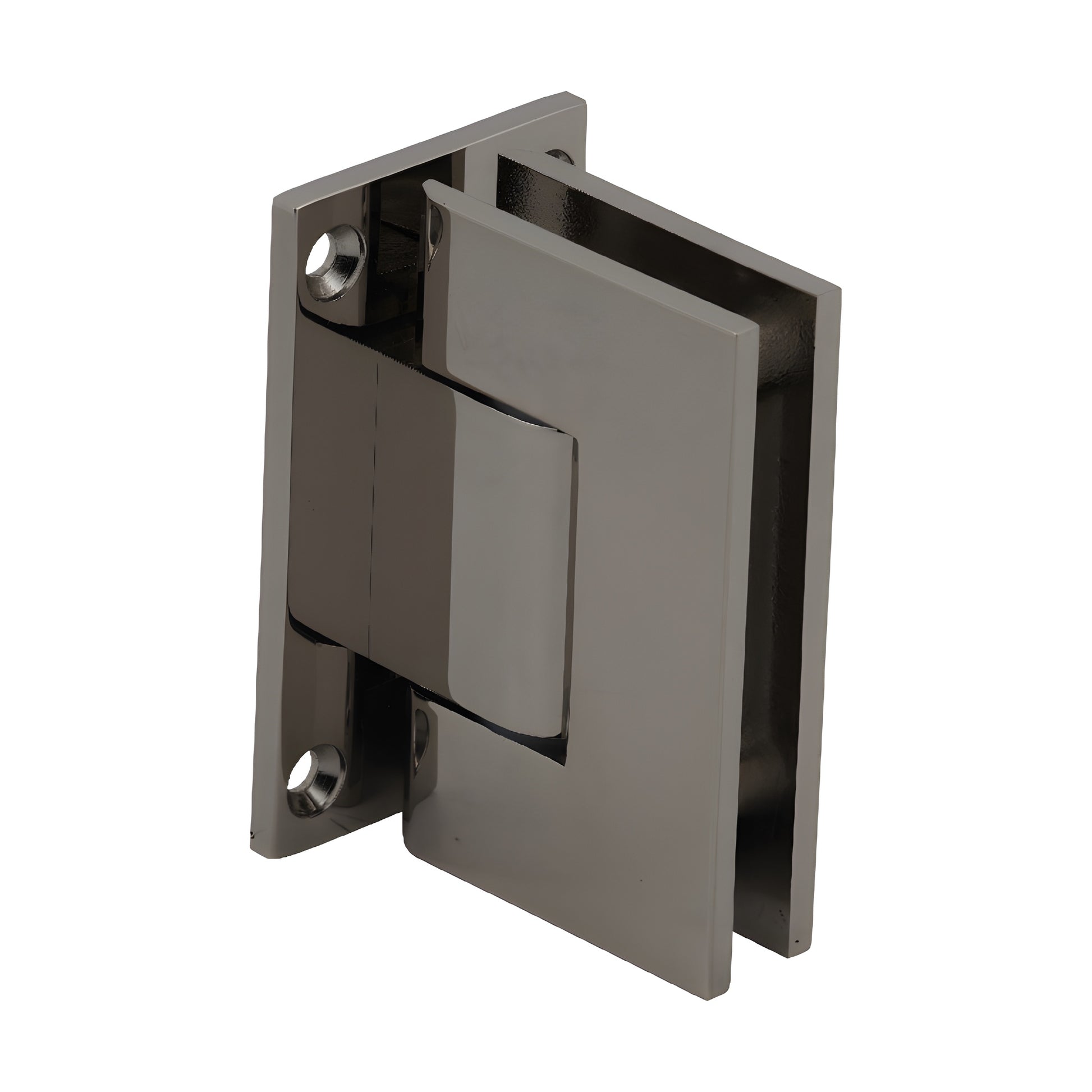

CRL Geneva 337 Polished Nickel Adjustable Wall-Mount Glass Door Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty

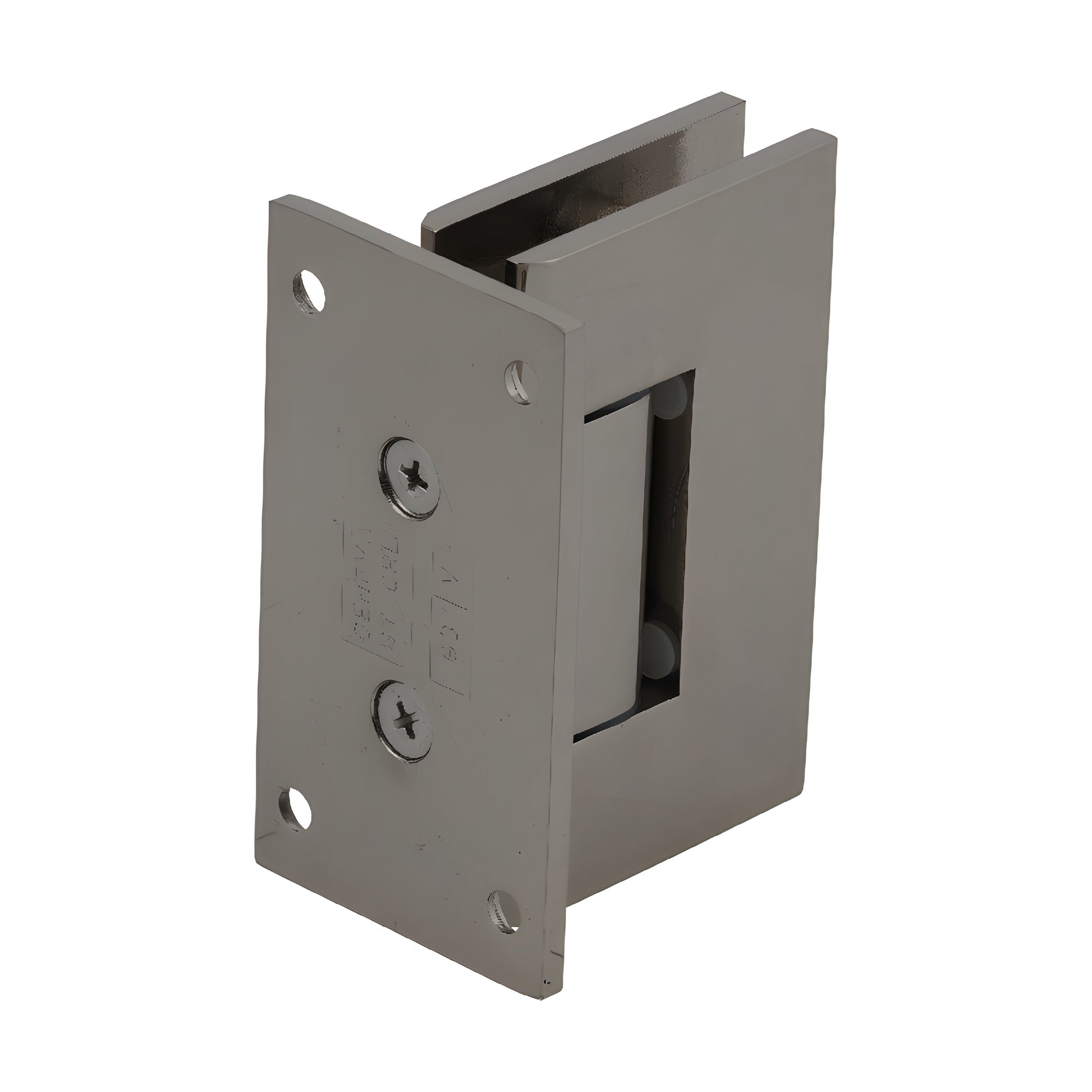

• Adjustable wall mount full back plate
• Designed for use with monolithic tempered glass

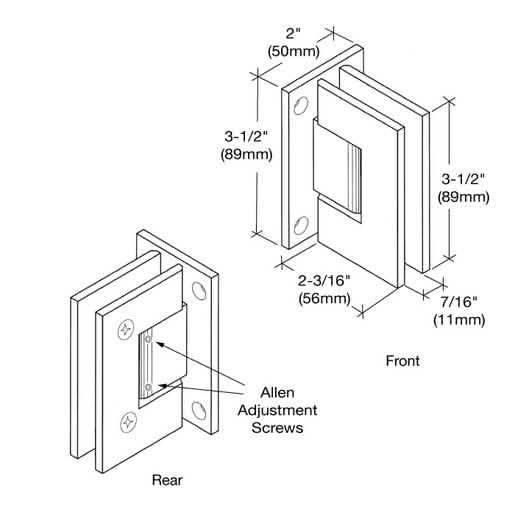

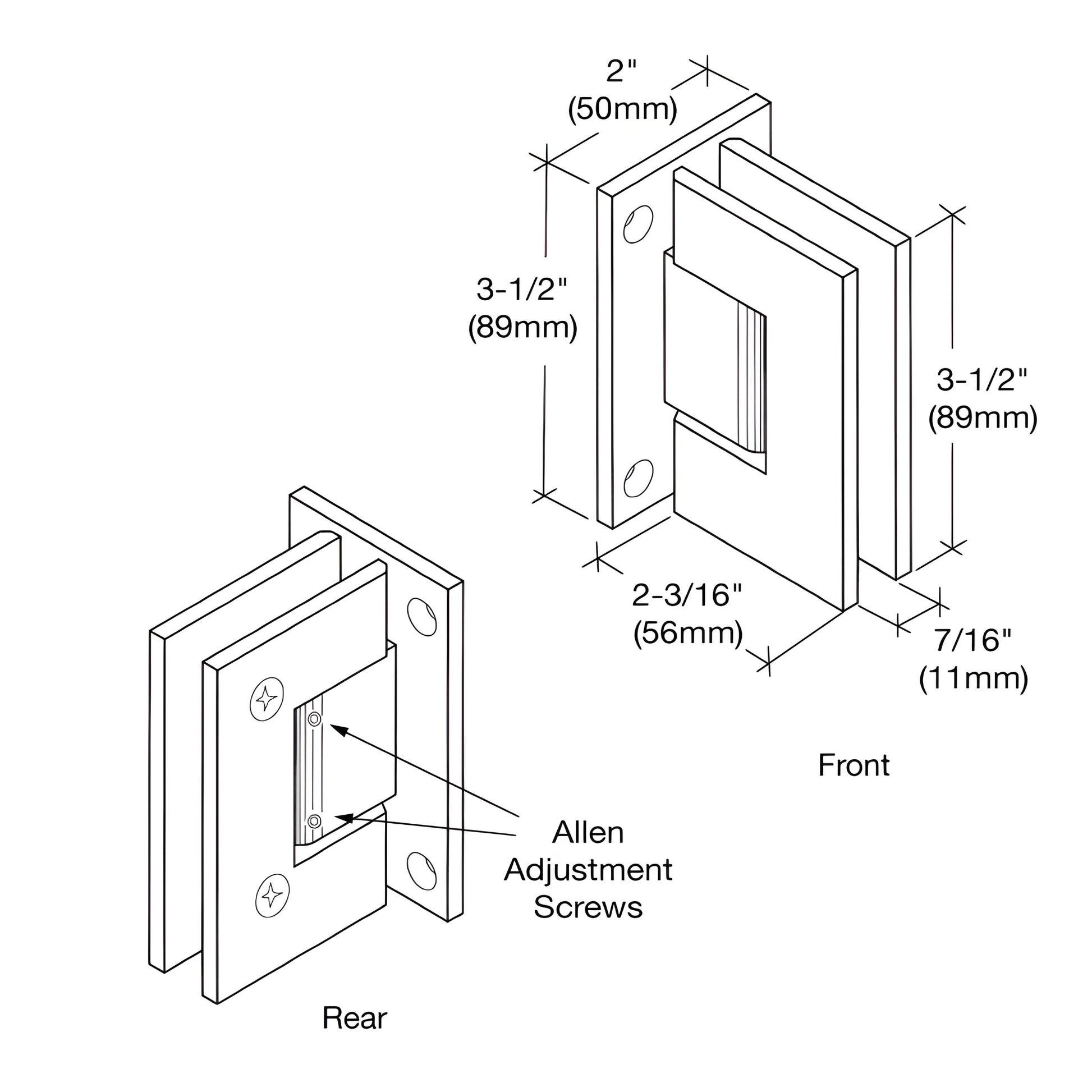

CRL Adjustable Geneva Series builds on the popular Geneva hinge to deliver a fully adjustable shower door hinge for residential and hotel applications. Angle adjustment (up to 90°) is performed after the door is installed: loosen the Allen set screws, rotate the door to the desired closed position, then tighten the screws. The door will self-center at the closing position. The hinge allows 90° swing in and 90° swing out from the factory set position; adjusting the factory angle will reduce swing range in that direction. For outward-swinging doors (clear door jamb), the hinge can be set to close 5° inside the shower so the door seats snugly against the jamb.

Load & glass limits
Using two hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 80 lbs (36 kg), maximum door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 120 lbs (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request; contact the CRL Technical Sales Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
