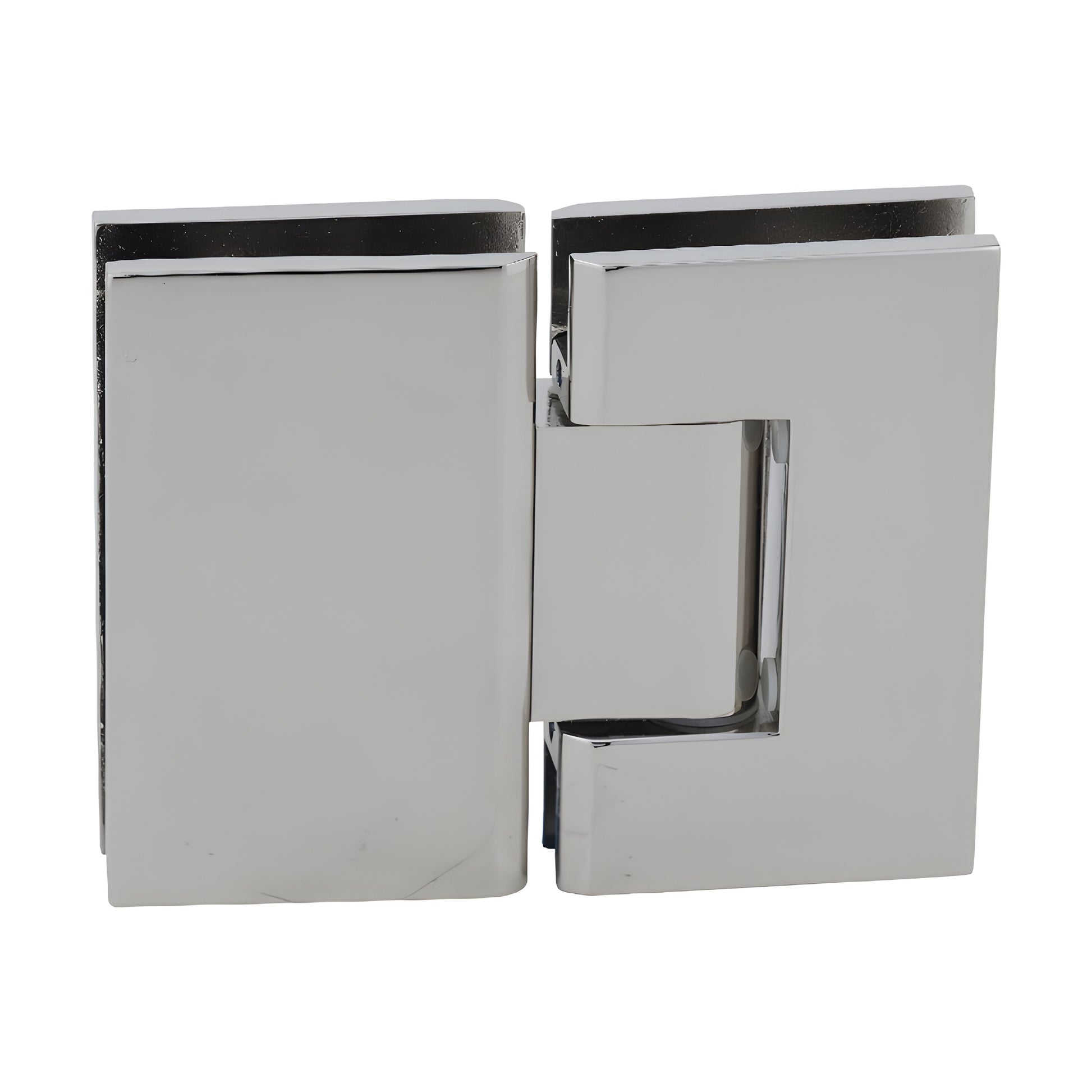

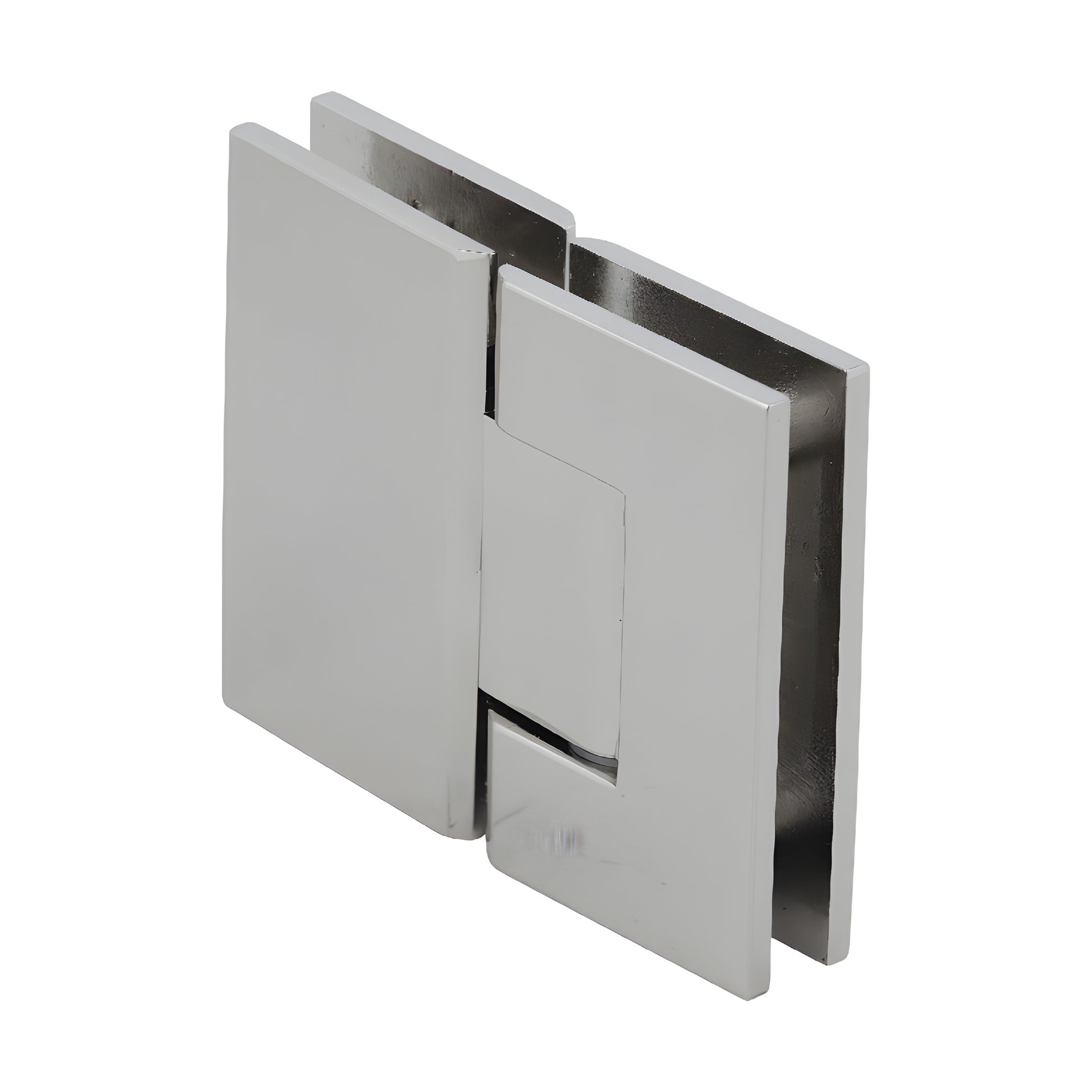

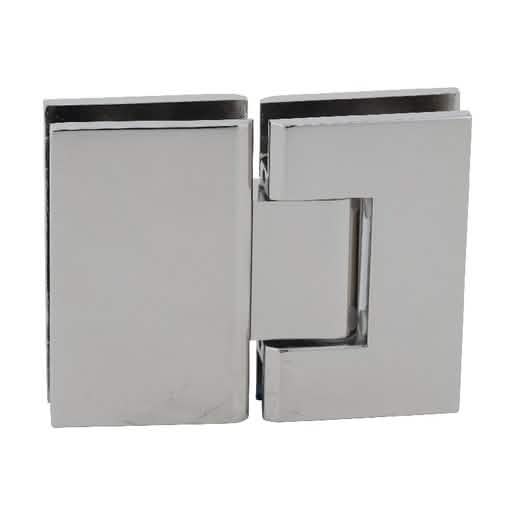

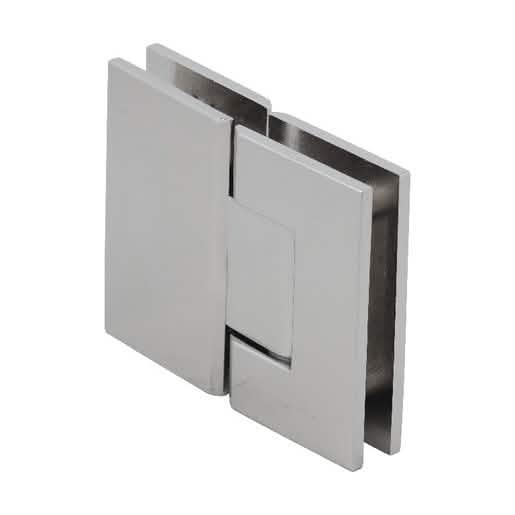

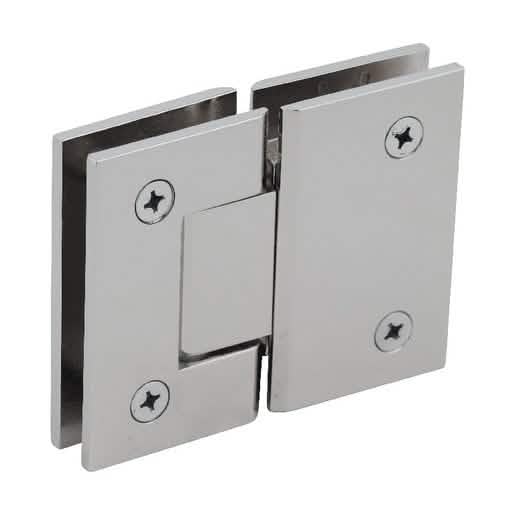

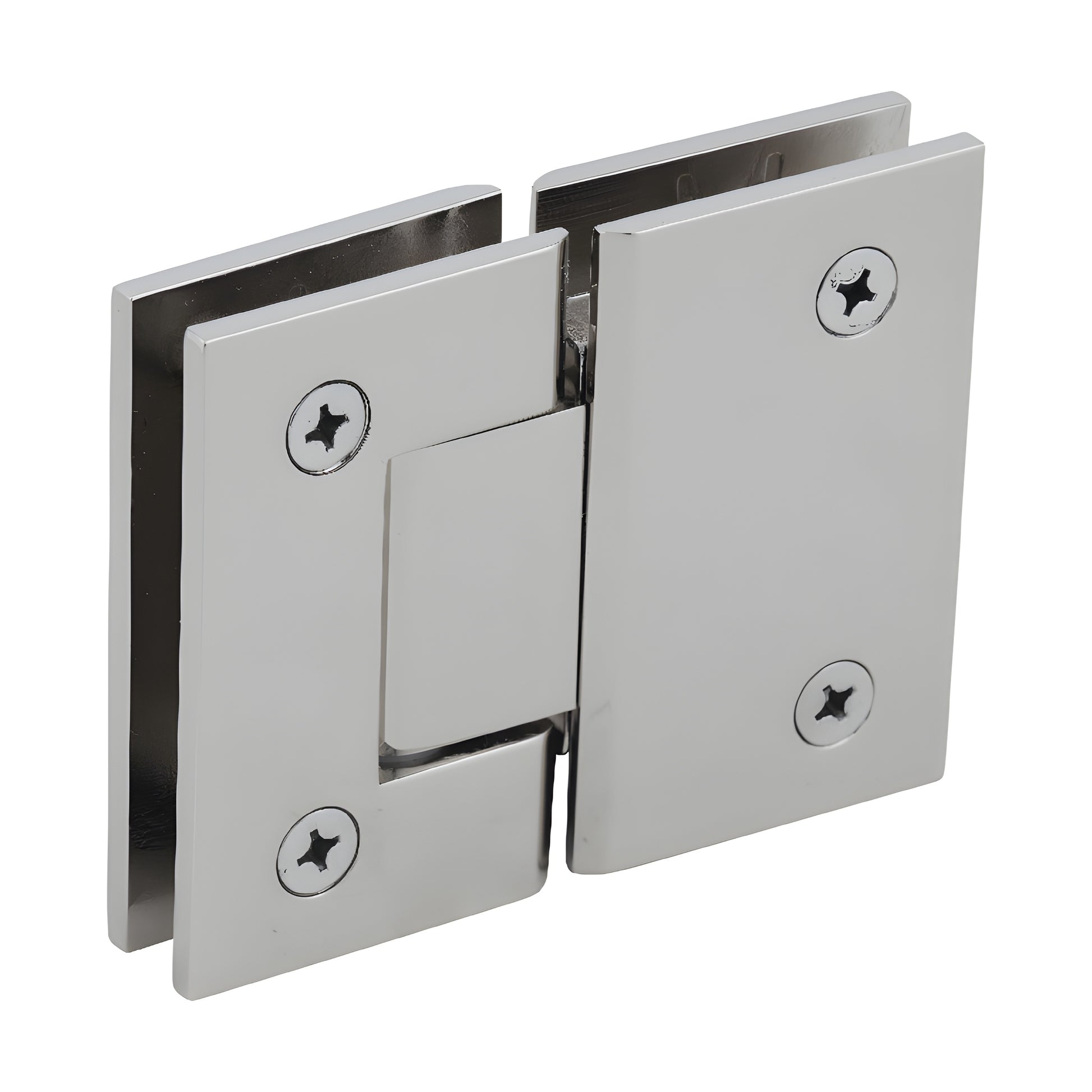

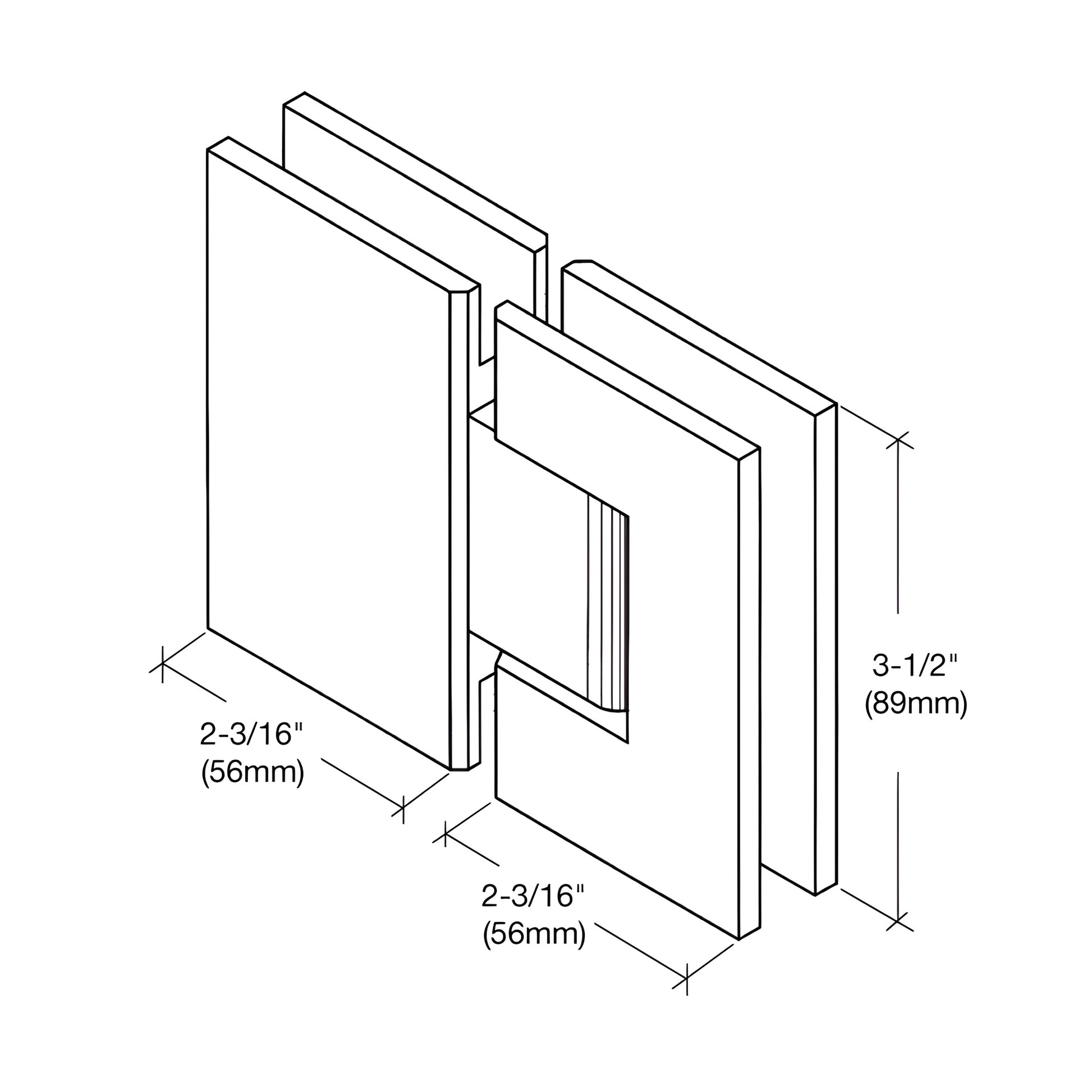

CRL Geneva 580 Polished Nickel 180° Shower Glass Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin for tighter shower closure
• Available in several durable decorative finishes
• Three-year warranty
• 5° pre-set model (factory set for 5° tighter closure into the shower interior)
• Designed for monolithic tempered safety glass (8 mm to 12 mm)

CRL Geneva Series professional shower door hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles provide design flexibility: three Wall-Mount and three Glass-to-Glass types. Geneva Hinges are solid brass with stainless steel pins and springs and include a reversible 5° pivot pin. Custom pivot pins are available for off-angle installations. These features make the Geneva hinge a reliable choice for frameless shower door hardware and designer shower enclosures.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active. Offset/pre-set models ship with the pin set to 85° (5° tighter closure into the shower interior). The pin can be rotated to change the active angle.

Custom Pivot Pin (Cat. No. GENP1N): If the 5° reversible pin does not achieve the desired closing position, specify a custom pivot pin angle up to 45°. Custom pins may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Performance: using two hinges with 8–12 mm glass, maximum load is 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges, maximum load is 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard 0° factory setting or 5° pre-set model for tighter inward closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 8 mm (5/16") tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division for quotes and lead times.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge—CRL cut-out dimensions may differ from other brands.
