CRL Polished Nickel Pinnacle & Prima Wall Mount Bracket for Glass
Item# P190SPN
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Polished Nickel
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Series
Pinnacle
- Beveled clamps to match Pinnacle, Prima, Senior Prima, Cologne, and Estate series hinges
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Constructed from solid brass
- Designed for monolithic tempered glass

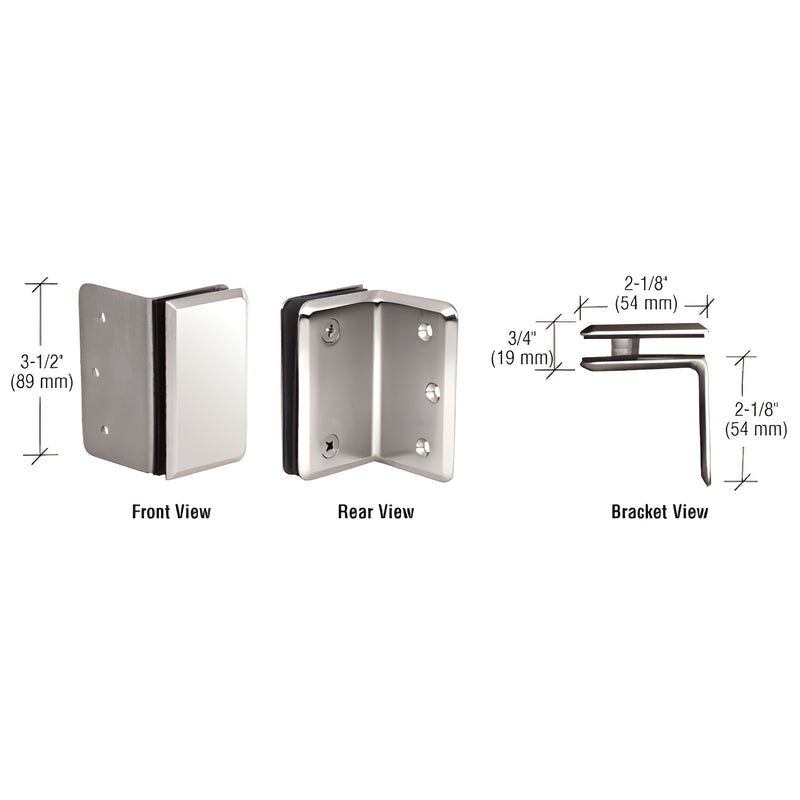

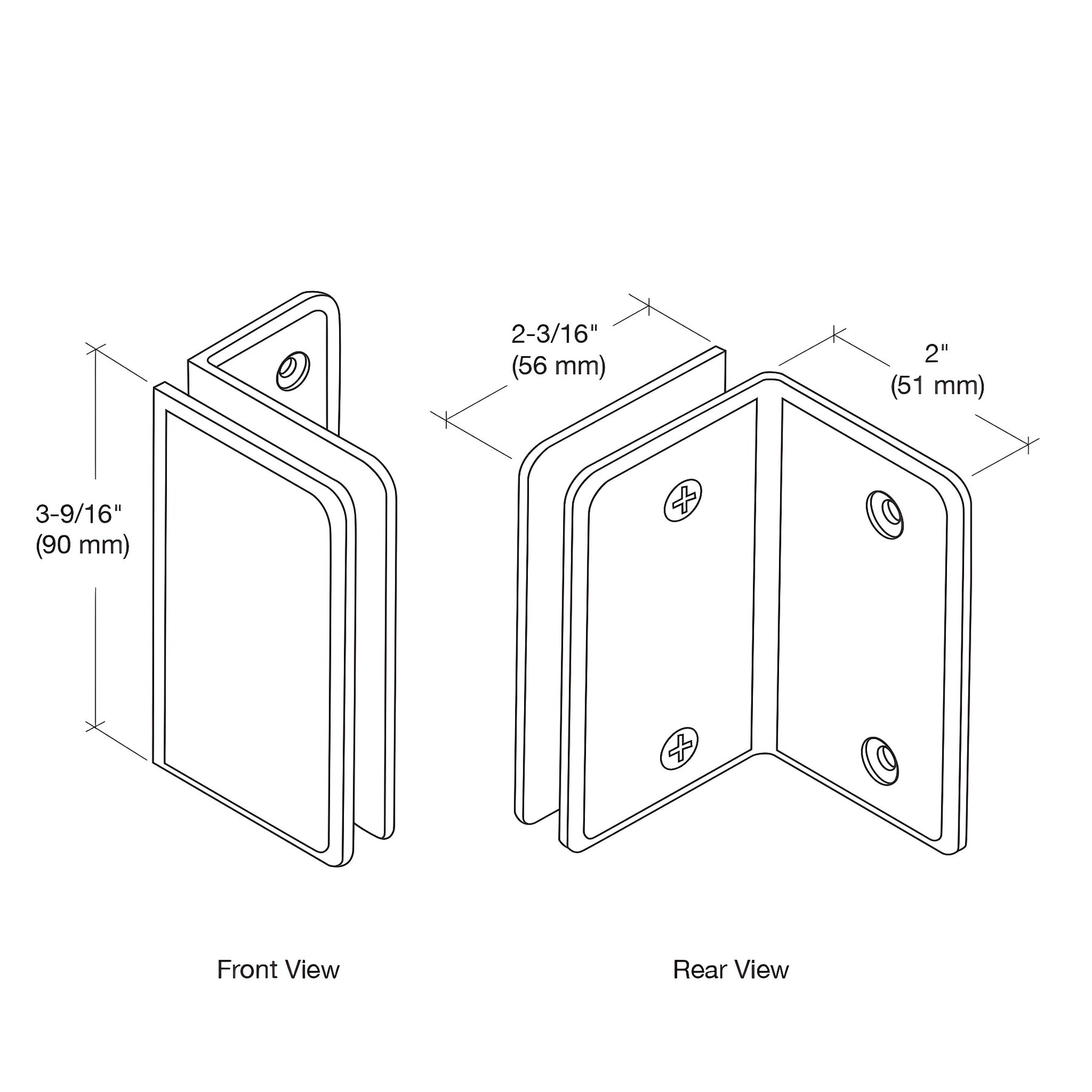

CRL Prima Series Wall Mount Glass Brackets (SKU: P190SPN) — wall-mount glass brackets engineered for 5/16"–1/2" (8–12 mm) tempered glass. These brackets share the Prima/Pinnacle hinge configuration for consistent design across shower doors and glass partitions. Rounded corners and beveled edges come in multiple decorator finishes; solid brass construction provides durability and corrosion resistance. Can also be used as a horizontal glass shelf bracket. Custom finishes available on request.
P612** replacement screws available.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets and mounting screws
Required Hole Diameter: Two 3/4" (19 mm) holes per panel
Most shipping weights are approximate. If exact weight or shipping costs are required to complete your order, contact CRL Customer Service before submitting your order. Product images are representative; colors may vary by monitor settings.
Order P190SPN now to match Prima/Pinnacle hardware and finish your glass installation — contact us for custom finishes or technical questions.
