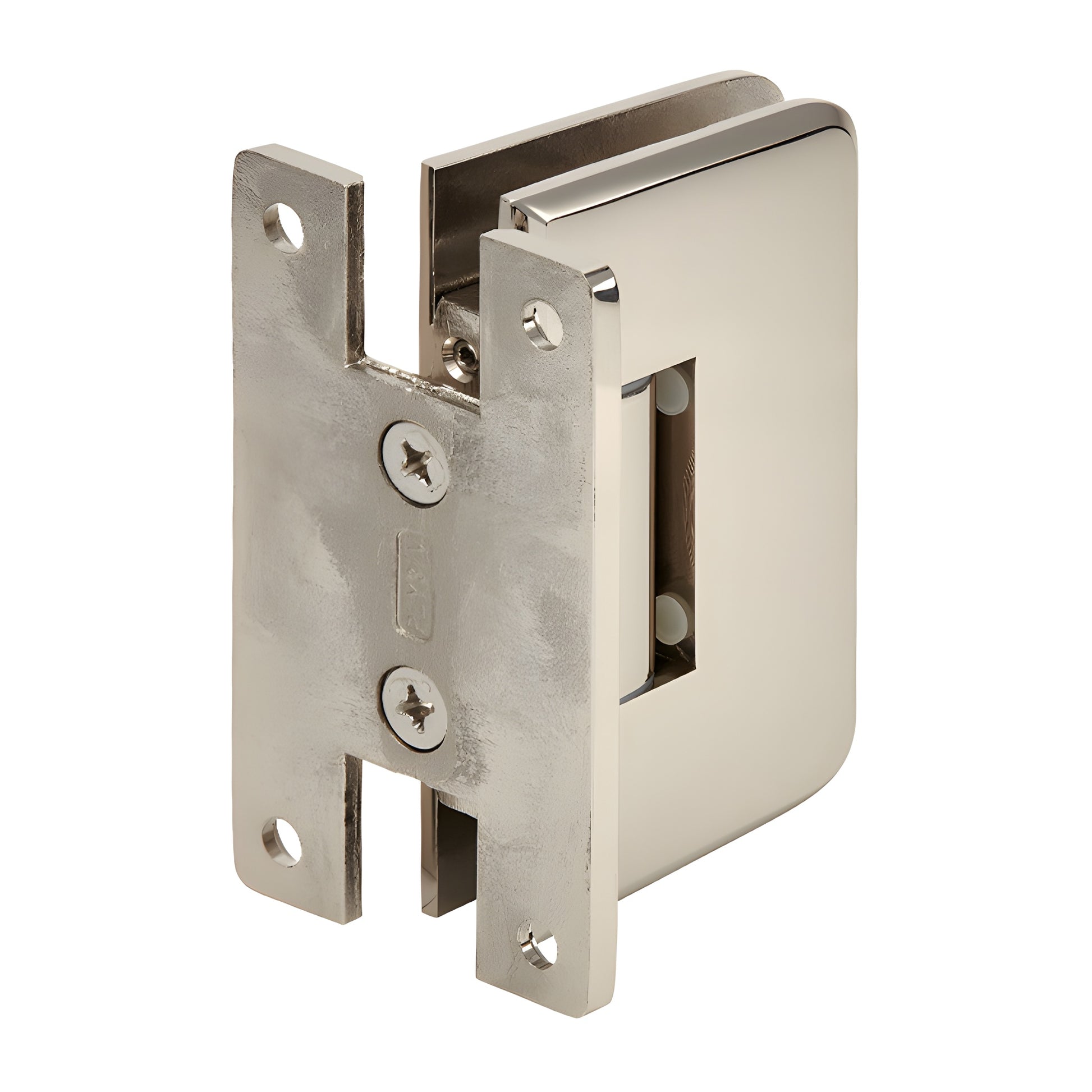

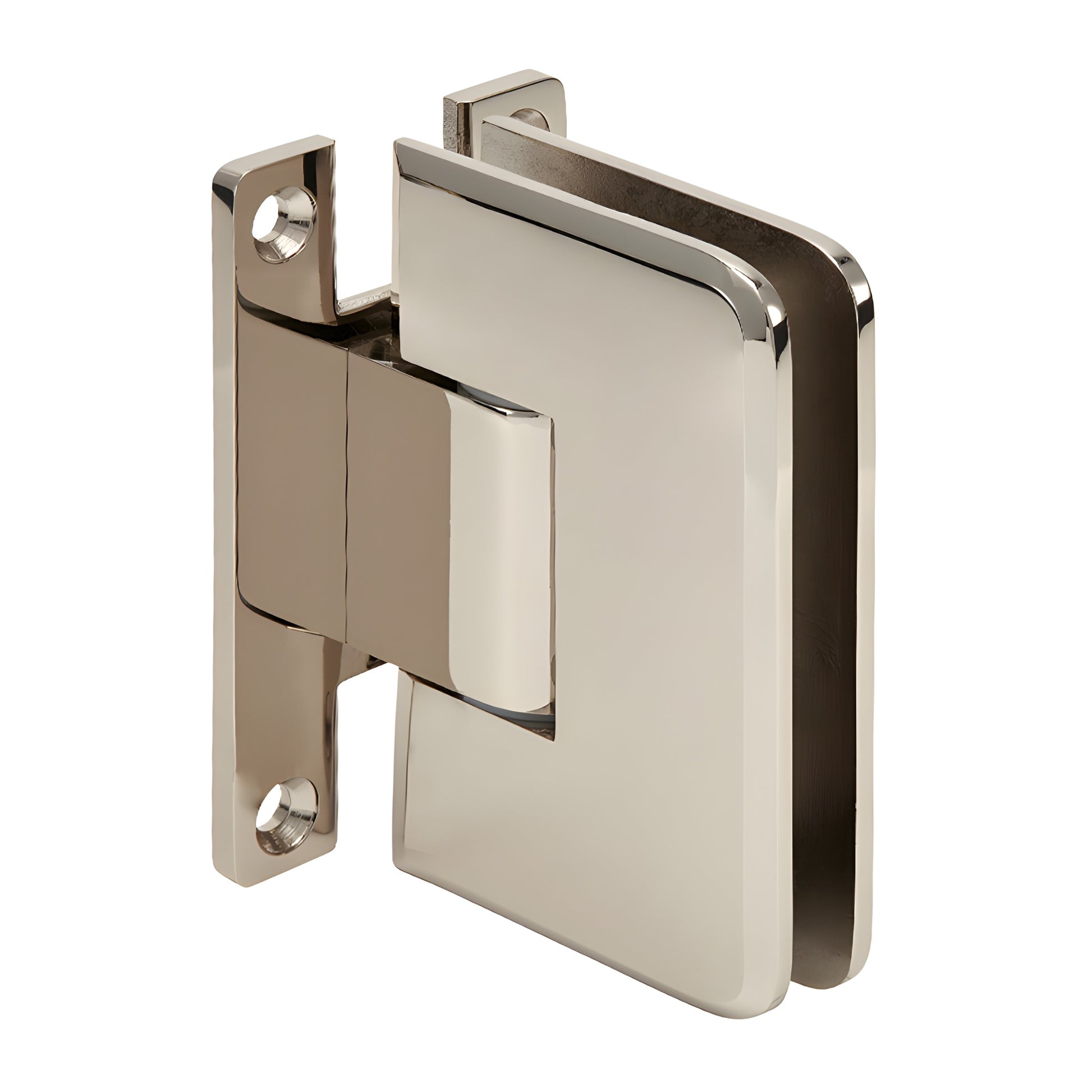

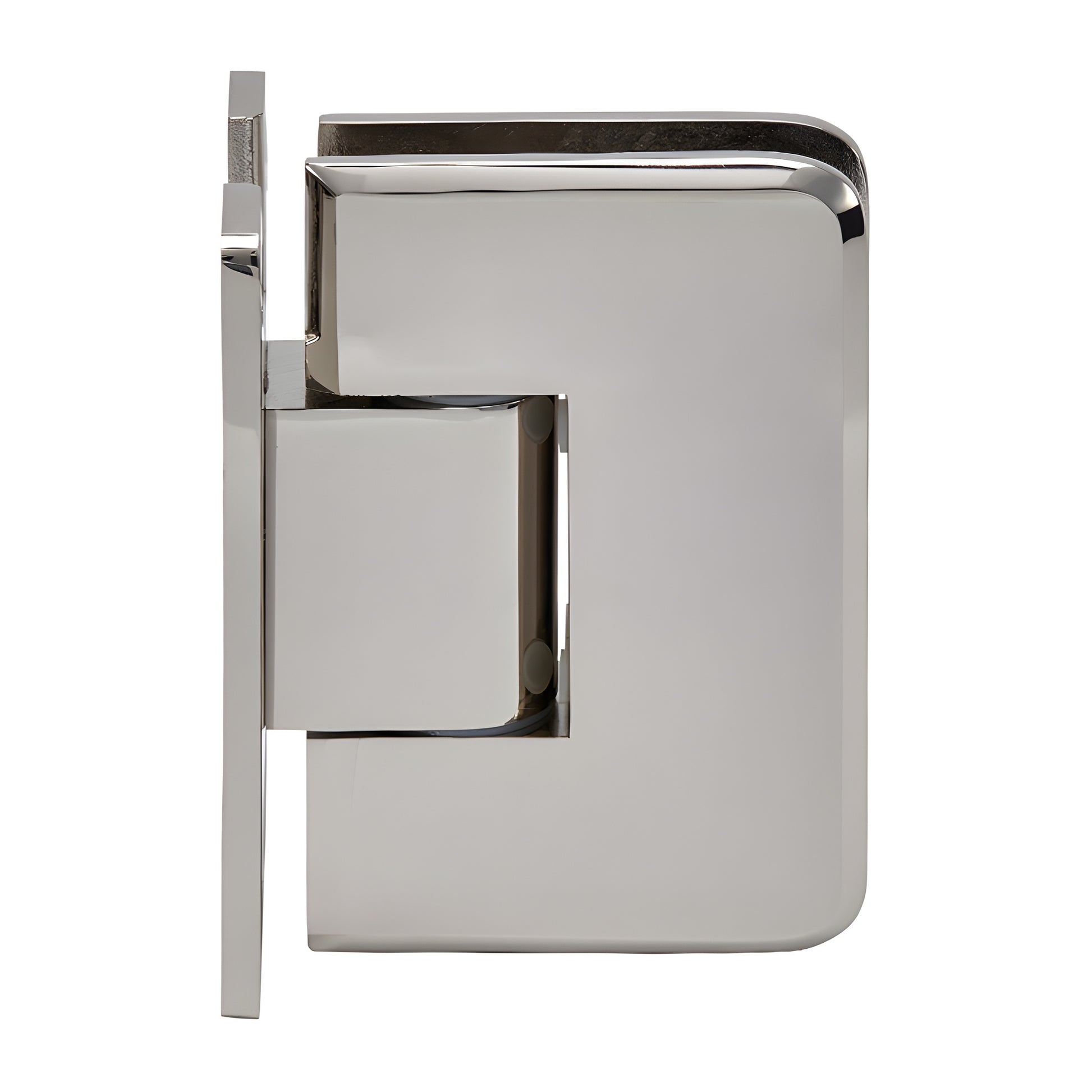

CRL Plymouth Series Polished Nickel Wall-Mount H Backplate Door Hinge

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock for improved glass panel control
• Available in wall-mount and 180° glass-to-glass models
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Plymouth Series Hinges (SKU: PLY037PN) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These solid brass shower door hinges minimize visible hardware for a clean, contemporary aesthetic and are ideal for frameless glass shower enclosures and heavy glass doors.

Key differentiators:

• Integrated stiffening beam reduces clamping plate flex for exceptional holding power
• Integrated safety interlock enhances panel control and safety
• Heat-treated stainless steel springs for increased durability and reliable self-centering
• Stocked in six popular finishes; custom finishes available

Performance & use: Designed for 3/8" to 1/2" (10–12 mm) tempered safety glass. Using two hinges on up to 39" (1 m) wide glass, the pair will support a maximum door weight of 140 lbs (64 kg). Do not use three hinges; maximum two hinges per door.

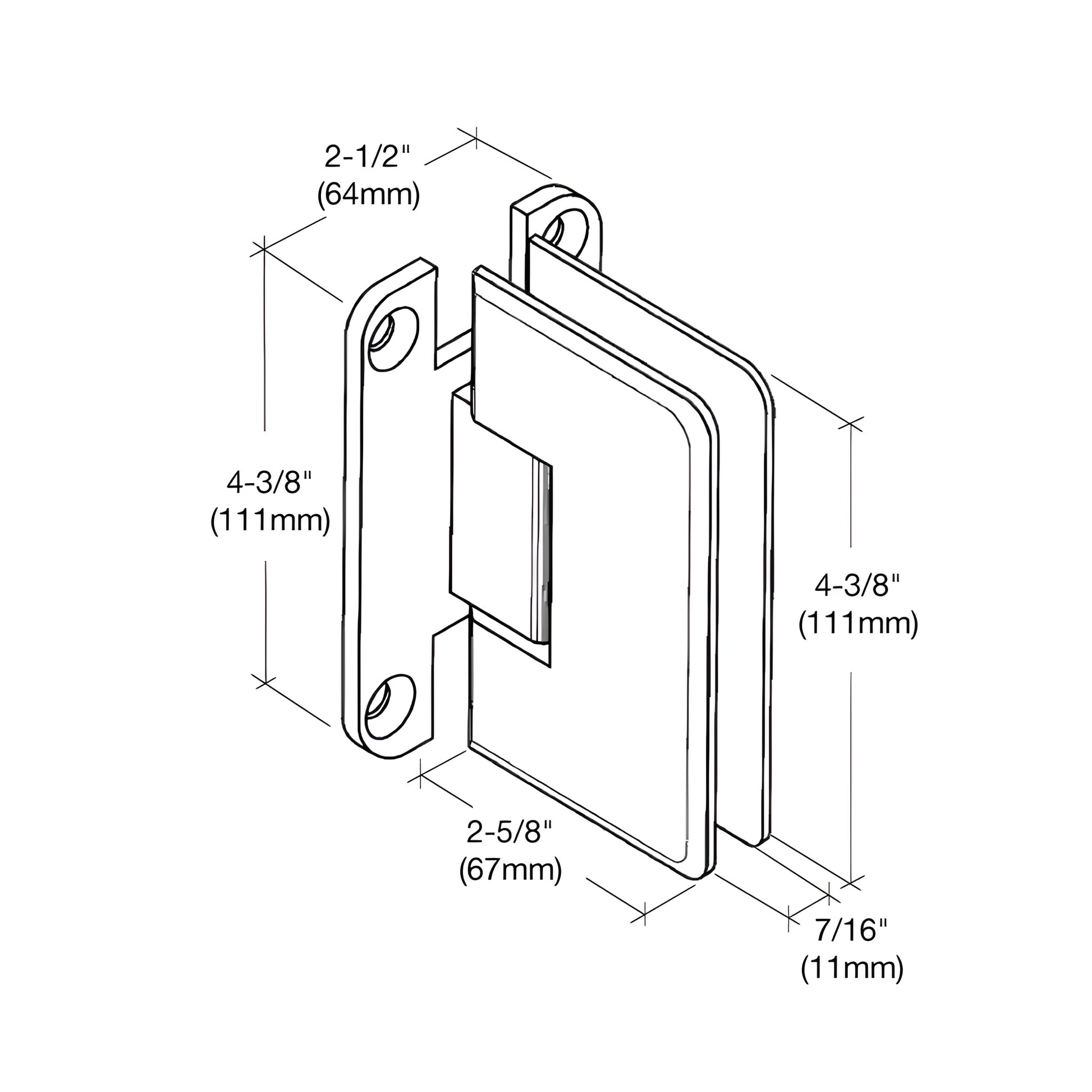

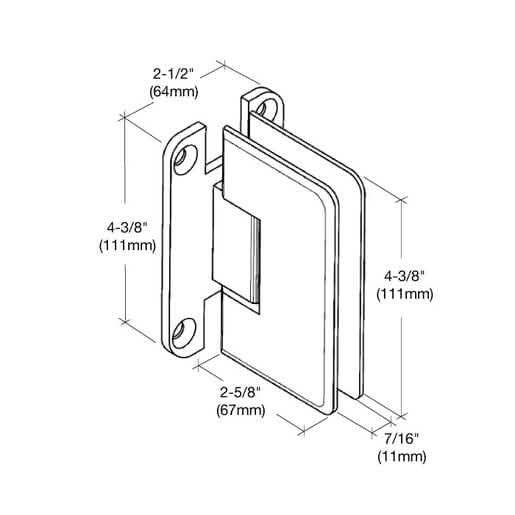

Specifications:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Cut-out Required

Important notes: Do not exceed the stated door weight or width capacities. Glass fabrication is required. Use only the template included with this hinge—cut-out dimensions may differ from other brands. For non-residential or non-hotel applications, obtain approval from the CRL Shower Door Technical Sales Department.

Shipping & visuals: Shipping weights are approximate; request exact weight from CRL Customer Service if required to calculate shipping. Product images are representative; colors can vary by monitor.

Order CRL Plymouth Series PLY037PN frameless shower door hinges today for durable, high-capacity performance—contact us to check finish availability and place your order.
