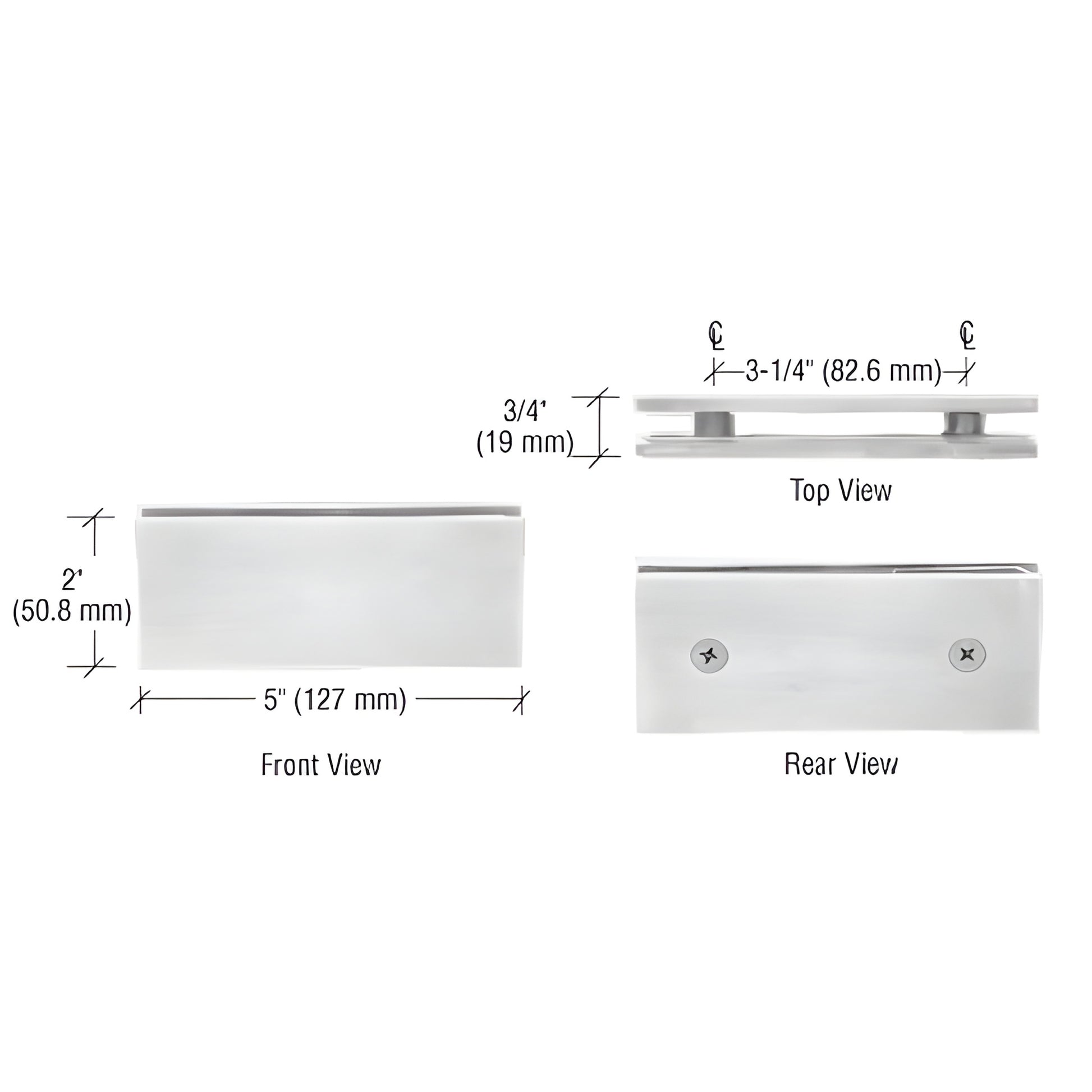

CRL Polished Nickel 180 Degree Square Glass-to-Glass Clamp for Shower

• Joins two glass panels at 180 degrees
• Solid brass construction
• For monolithic tempered glass (3/8"–1/2" / 10–12 mm)
• Clamps create an "all-glass" appearance vs. traditional U-channel
• Glass fabrication required to accommodate clamps

CRL Square 180 Degree Glass-to-Glass Clamp features sharp squared-off corners for a clean, modern look. Designed to connect two fixed glass panels inline, these solid brass clamps are available in finishes that match our door hinges and clamp lines. Ideal for custom wall partitions, transoms, showcases, trophy cases, and frameless glass enclosures, the SGC180PN adds a quality, architectural finish to commercial and residential projects. Drawings and templates for all clamps are available.

SPECIFICATIONS:
SKU: SGC180PN
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Order the CRL SGC180PN square 180° glass-to-glass clamp to complete your frameless glass installation.
