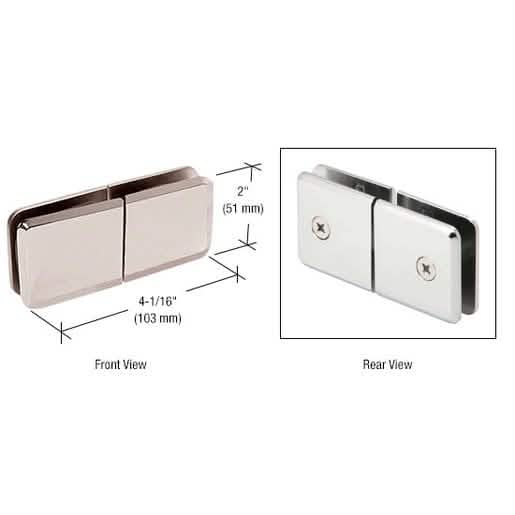

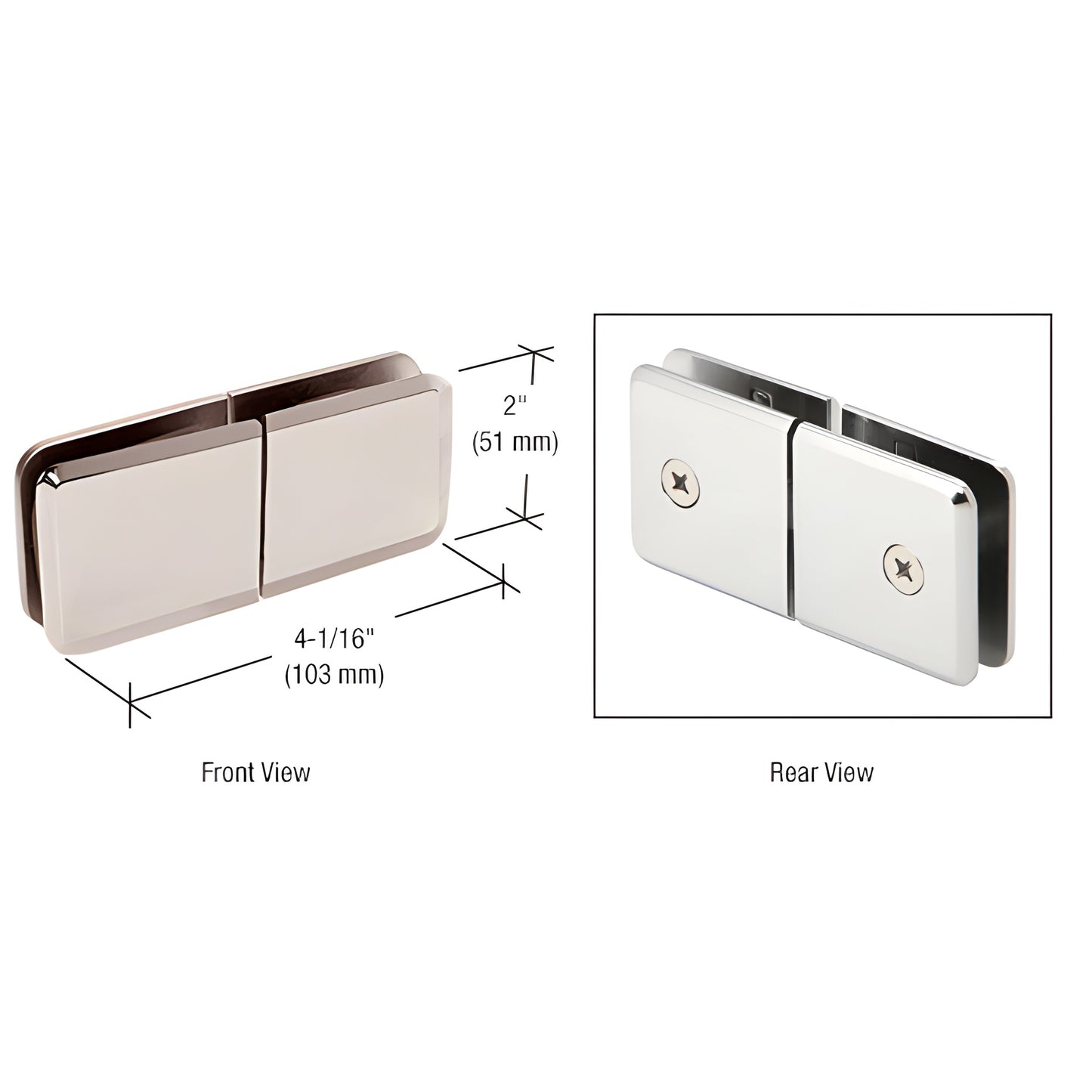

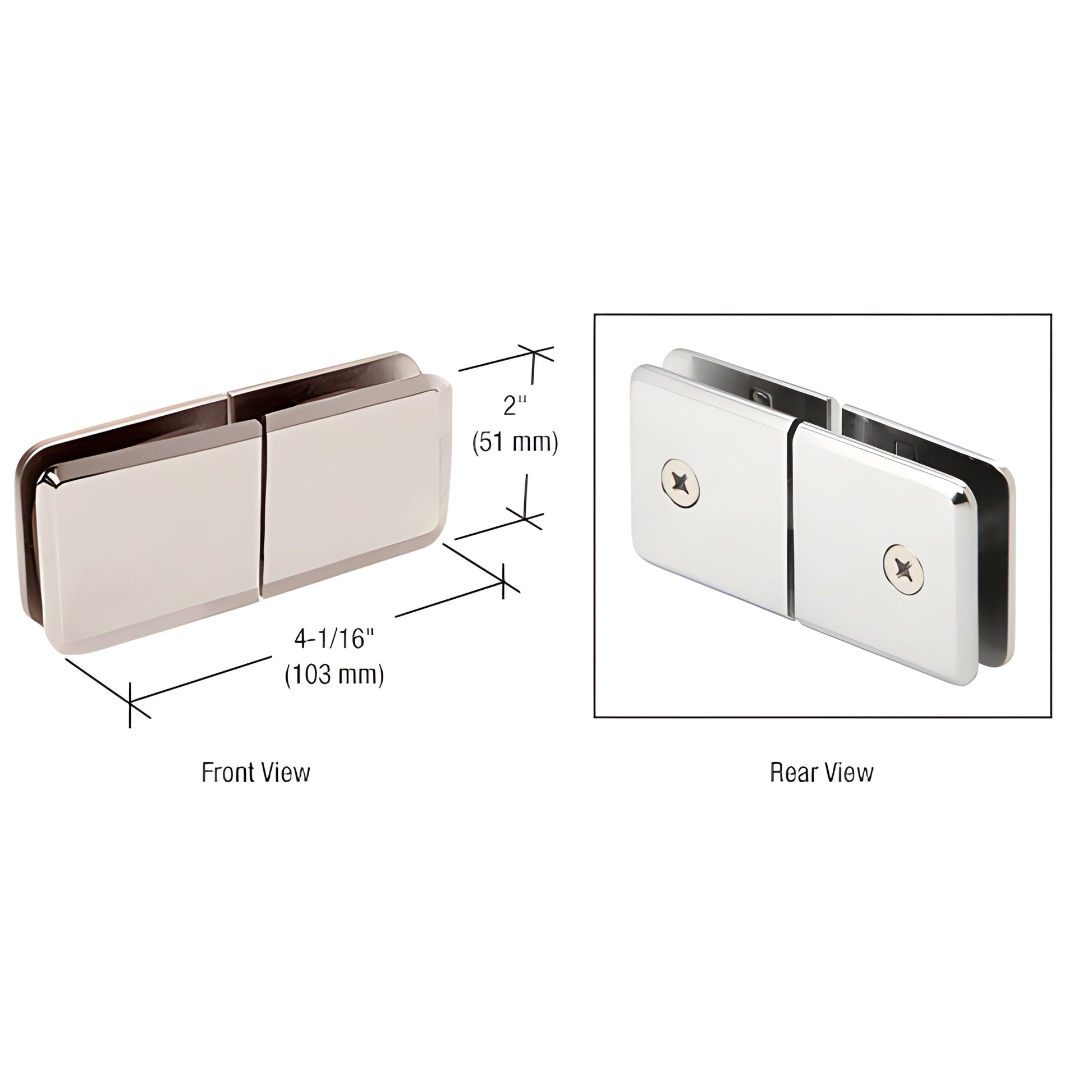

CRL Polished Nickel 180Β° Movable Square Beveled Glass-to-Glass Clamp
CRL Polished Nickel 180Β° Movable Square Beveled Glass-to-Glass Clamp
Regular price
$35.74 CAD
Regular price
Sale price
$35.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BGC188PN
Shipping Weight: 13.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Nickel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
Overview
- For 3/8" to 1/2" (10 to 12 mm) thick glass
- Glass transom swivels to allow release of steam
- Wall mount and 180ΒΊ models available
- Solid brass construction
- Designed for use with monolithic tempered glass
CRL Beveled 180ΒΊ Glass-to-Glass Movable Transom Clamps (SKU: BGC188PN) allow the rotation of a movable transom off an inline fixed glass panel. Ideal for shower and partition applications, this beveled 180ΒΊ glass-to-glass movable transom clamp provides smooth, balanced movement when centered on the transom. Can be used with Cat. No. BGC186 wall mount movable transom clamp for alternate mounting configurations.
Replacement parts: Cat. Nos. 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut), and BGCU1G (gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps β call for details.
SPECIFICATIONS:
Materials: Solid brass
Glass thickness range: 3/8" to 1/2" (10 to 12 mm)
Glass fabrication required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets
Order the BGC188PN solid brass beveled 180ΒΊ glass-to-glass movable transom clamp for durable, steam-release capable glass transoms β contact sales to buy or request a quote.
