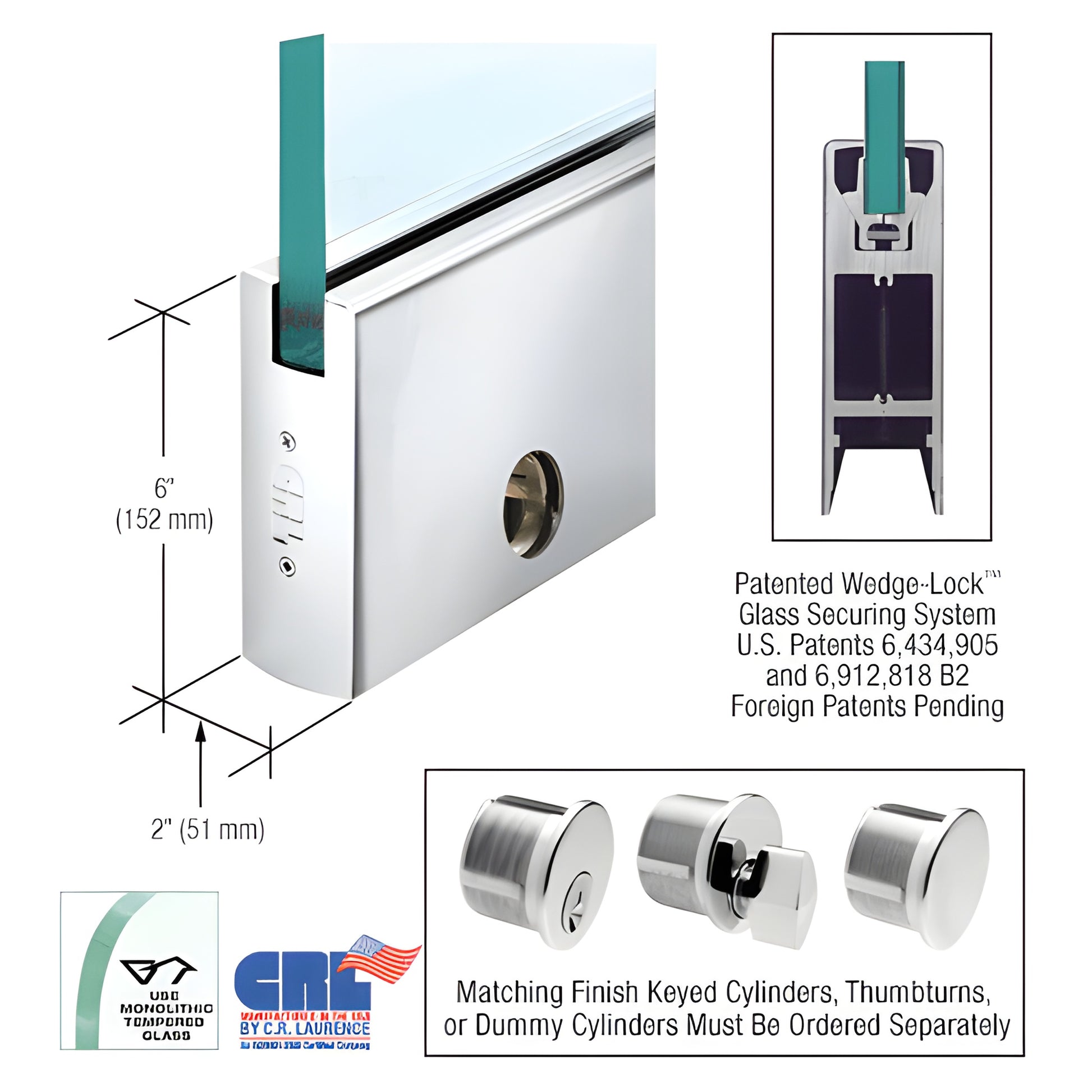

CRL Polished Stainless 6" Square Rail for 1/2" Glass Door w/ Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SPS12CL) uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure glass from the bottom of the rail. Two glass-retaining aluminum extrusions and a flat stainless steel bar create a wedging action that compresses the glass retaining extrusions into an angled groove, producing exceptional holding force (more than 900 lbs. in the 9" corner rail). This design delivers a rigid, single-component housing that resists shifting over time — a key differentiator for commercial glass door rail systems.

The Wedge-Lock® system also minimizes installation time. Experienced installers can prepare a door for hanging in under ten minutes. Units ship fully fabricated and ready-to-install with end caps installed. After rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

• Adjustable Door Alignment System standard on top and bottom rails — allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door
• Low-profile adjustable slide supports pivots with slotted grooves for non‑standard setbacks and out-of-square openings
• Internal components do not require removal before installation; glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® door rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from our Technical Sales Department.

Ordering information

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots sold separately.
• Models with locks supplied with the lock mechanism installed. Matching finish keyed cylinders or thumbturns must be ordered separately.
• End caps included in stock door rails. Specify total door rail length (including end caps) for custom-length rails.
