CRL Polished Stainless 1/2in Glass Square Door Rail 35-3/4in No Lock

• 35-3/4" (908 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

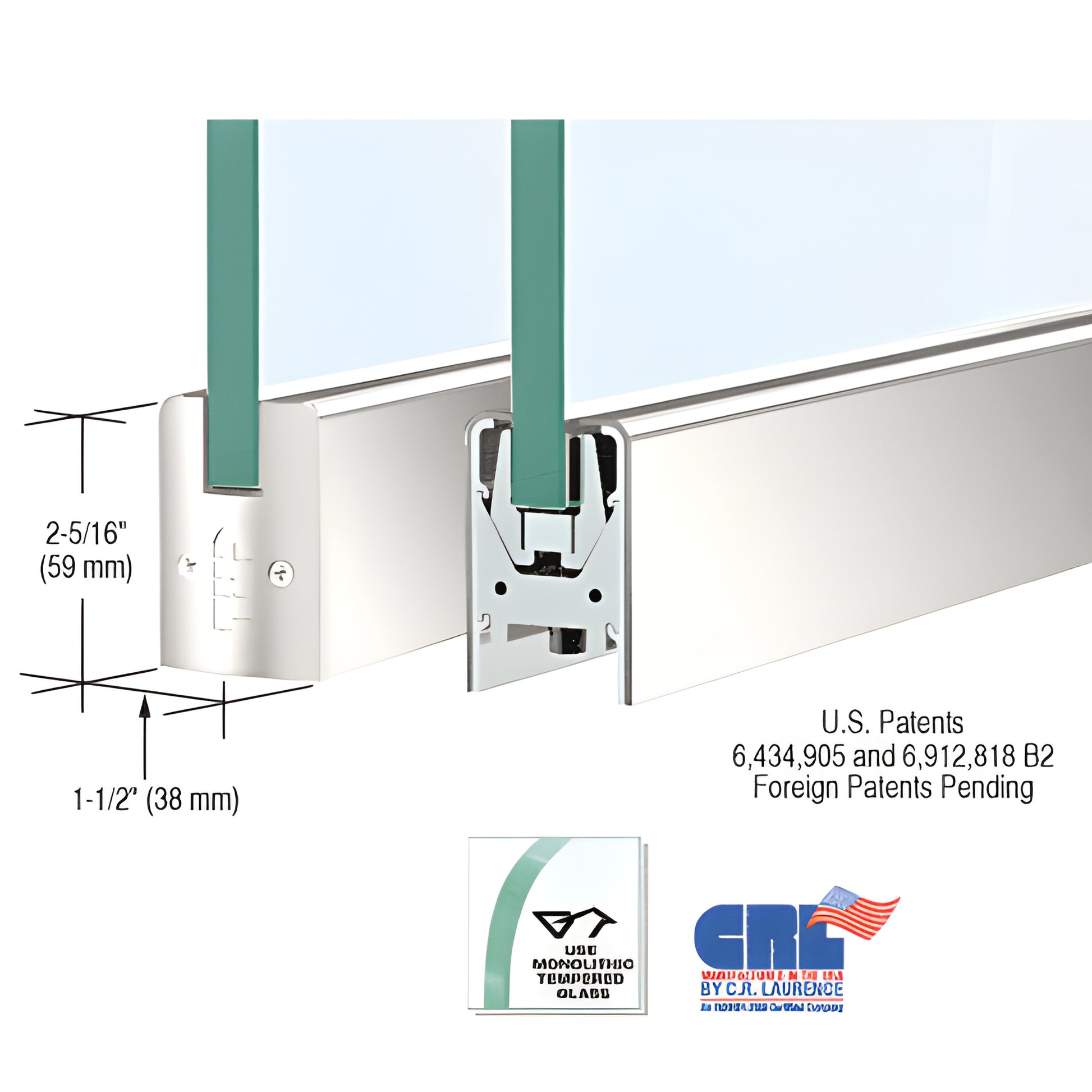

Our CRL Low Profile Door Rail (SKU DR2SPS12S) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails ship complete with End Caps, installation instructions, and adjustment wrenches for fast, on-site setup.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment and the fastest installation time among door rail systems—experienced installers can prepare a door for installation in under ten minutes. Rails arrive fully fabricated and ready-to-install; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The integrated Adjustable Door Alignment System allows 1/8" (3 mm) in/out adjustment without removing the door (standard on both top and bottom rails). To access adjustments, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide also accommodates pivots with slotted grooves for non-standard setback or vertically out-of-square openings.

Other advantages: models accept 3/8" to 3/4" (10 to 19 mm) glass; rigid single-component housing resists shifting over time; internal components do not require removal prior to installation; durable glass securing pads built for extreme environments. All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes, with custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering Information

• All Door Rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks ship with the
