CRL Stainless 35-3/4" Low Profile Door Rail with Lock - 1/2" Glass

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation time)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

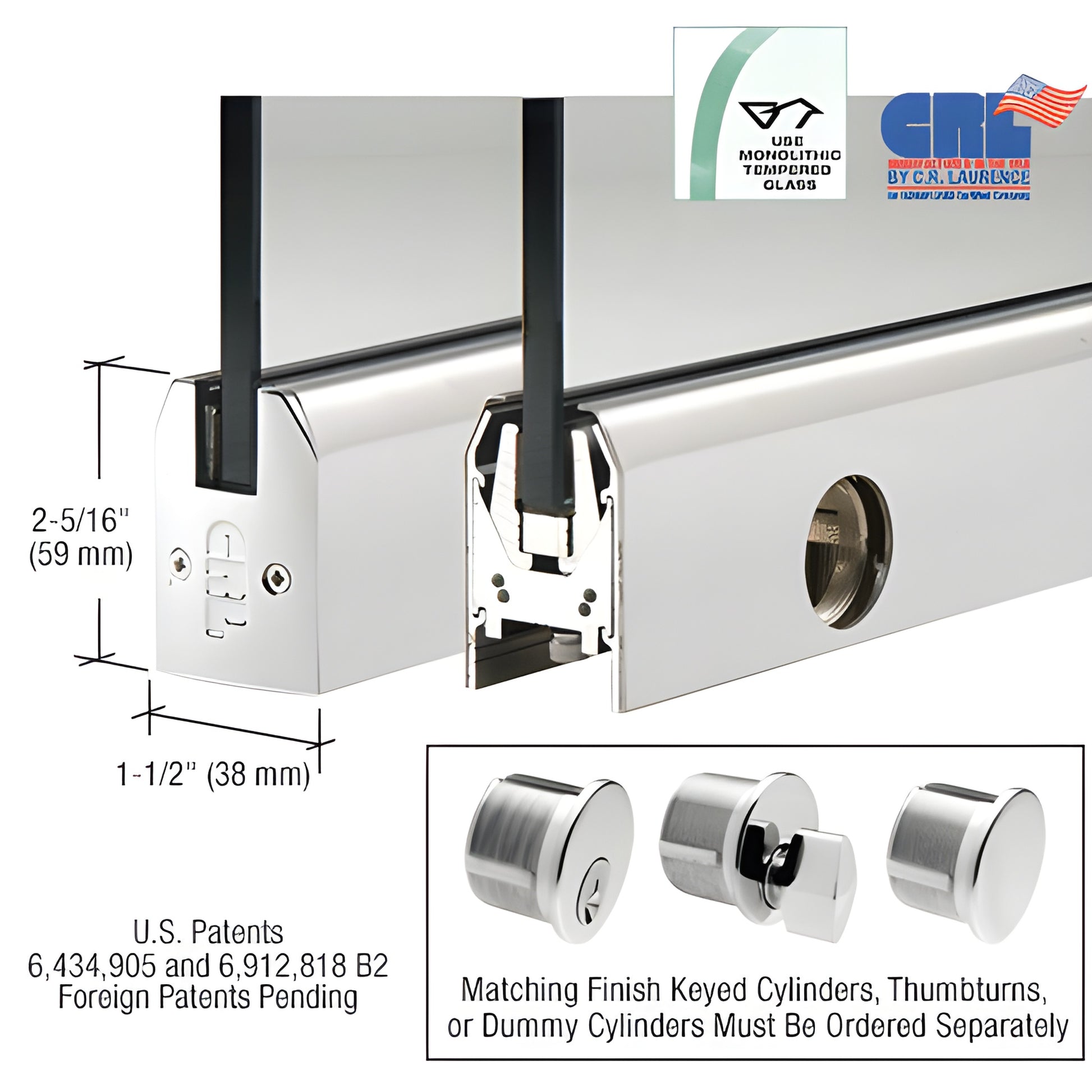

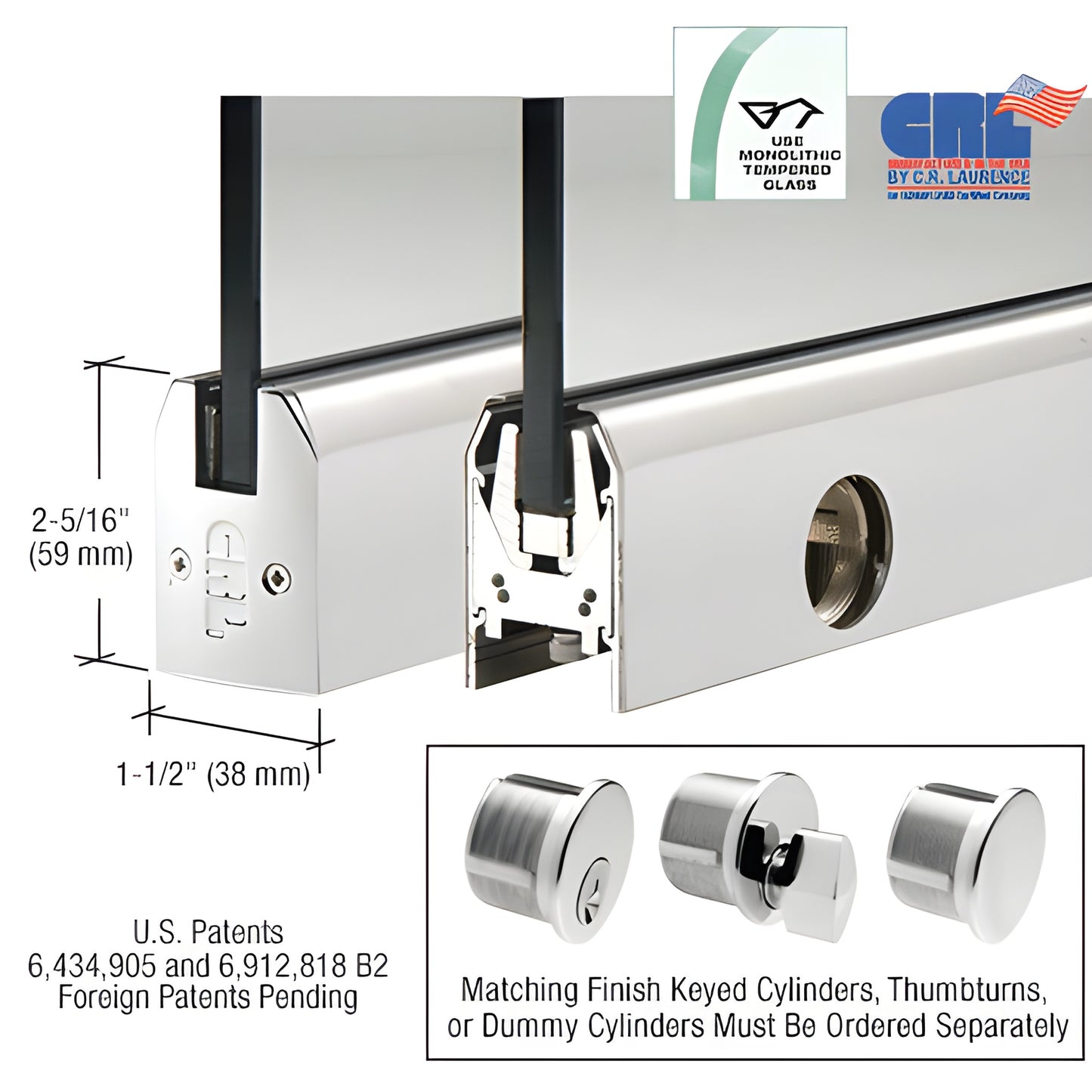

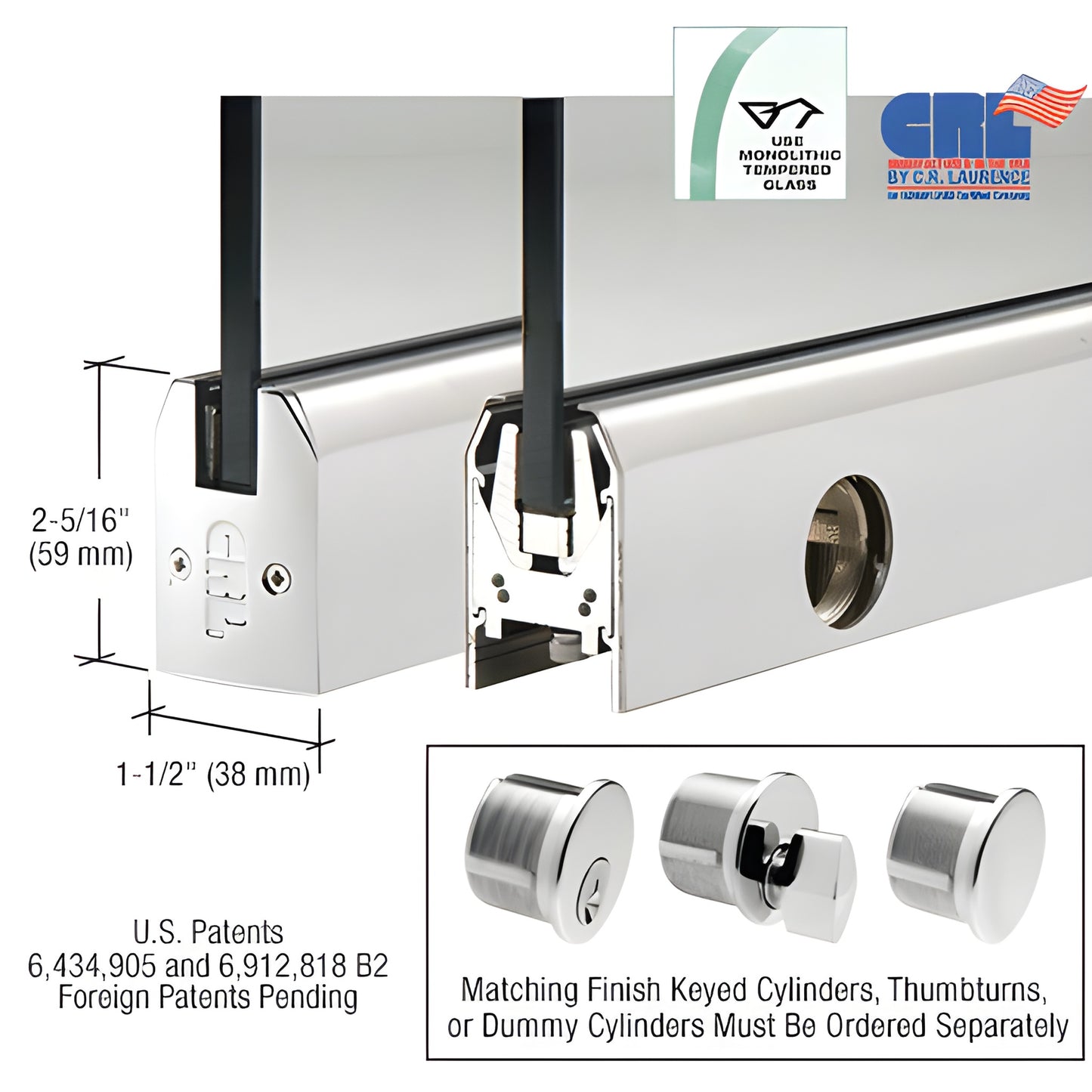

Our CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile glass door rails ship complete with end caps, installation instructions, and adjustment wrenches for quick, ready-to-install performance.

Key differentiators:

• Wedge-Lock® system — secure attachment and industry-leading, under-ten-minute door prep for experienced installers
• Adjustable Door Alignment System — +/-1/8" (3 mm) adjustment on both top and bottom rails without removing the door
• Rigid single-component housing — resists shifting and long-term misalignment (not two-piece construction)
• Compatible with 3/8" to 3/4" (10 to 19 mm) glass models and designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots sold separately)

After installation, remove the end cap to access three socket head cap bolts: the center secures the adjustable slide; the two outer bolts allow the 1/8" (3 mm) in/out adjustment. The low-profile slide also permits pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Finishes, hardware & ordering:
• Available in several standard finishes; custom finishes and widths quoted on request.
• All door rails include Kwik-Adjust™ Pivot Alignment System prep; closer arms, floor or overhead pivots, pivot inserts (1NT701, 1NT703, 1NT704), keyed cylinders, thumbturns and arms/pivots are ordered separately.
• Models with locks ship with the lock mechanism installed; matching finish cylinders or thumbturns must be ordered separately.
• End caps are included with stock lengths; specify total rail length (including end caps) for custom lengths.
• Rail specifications, templates and hardware packages available from CRL Technical Sales via e-mail.
• Installation instructions and adjustment wrenches included.

NOTE: Actual product height: 2-5/16" (59 mm).<
