CRL Stainless 1/2" Low-Profile Tapered Glass Door Rail Custom Length

• Custom length for 1/2" (12 mm) glass
• For use with monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (secure, fast installation)
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

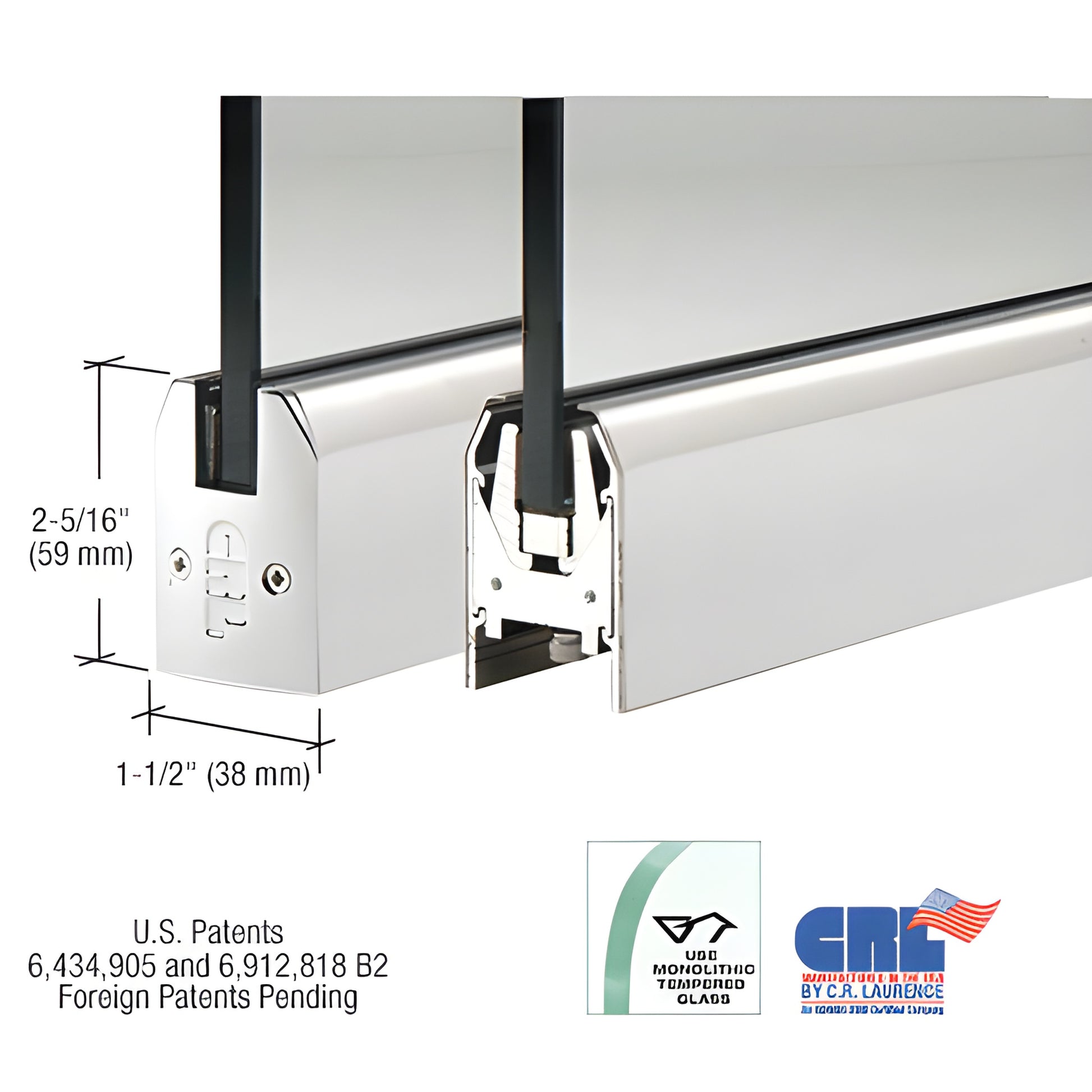

Our CRL Low Profile Door Rail (SKU: DR2TPS12C) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with end caps, installation instructions, and adjustment wrenches for quick, ready-to-install performance.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment to glass and the fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes. Rails ship completely fabricated and ready-to-install; after mounting, attach your door arm or pivot (not included) to the adjustable door alignment slide pre-assembled in the rail. The Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door (standard on top and bottom rails).

To adjust after installation, remove the end cap to access three socket head cap bolts: the center secures the slide and the two outer bolts adjust the slide ±1/8" (3 mm). The low-profile adjustable slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Internal components do not require removal before installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns (matching finish)
