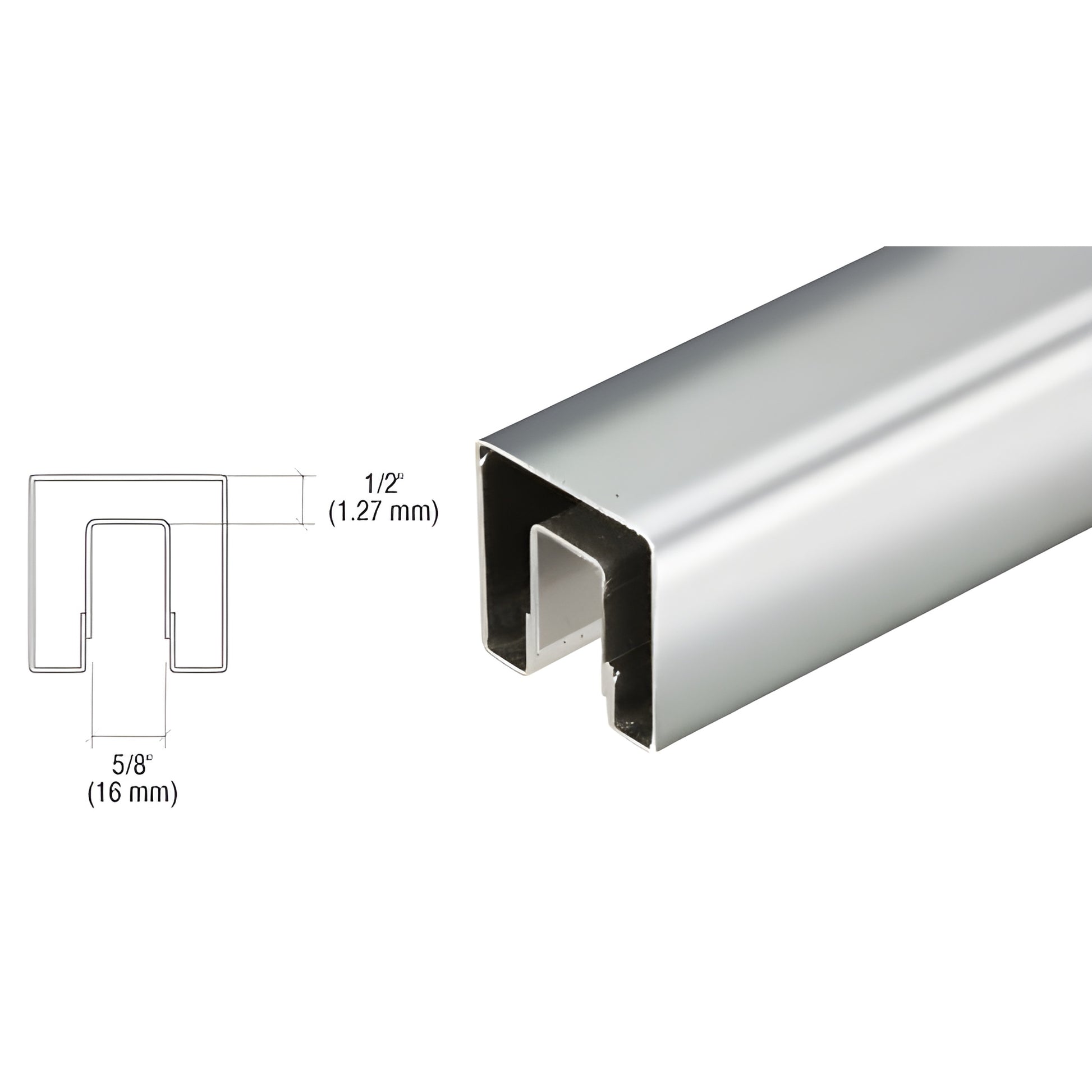

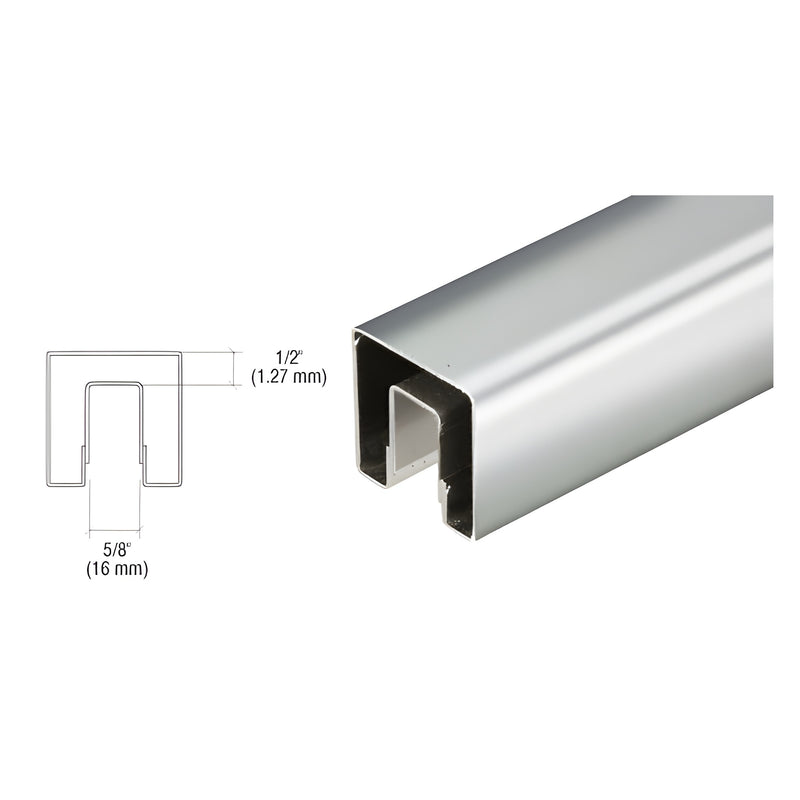

CRL Polished Stainless 1.5" Square Cap Rail for 1/2" Glass, 120"
Item# GRS15PS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Height
1-1/2 in. (38 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Thickness
.05 in. (1.27 mm)
Width
1-1/2 in. (38 mm)
- 120" (3.05 m) stock lengths available in three sizes and two architectural finishes
- Compatible with premium corners; use sleeve No. GRS15CSS
- Profiles range from 1-1/2" (38 mm) to 2-1/2" (64 mm) sizes
- 304 stainless alloy standard; 316 alloy available on special order
All CRL Premium Square Cap Rails (SKU: GRS15PS) are formed using precision tooling to maintain uniform profiles for smooth hairline transitions at splices, corners and end caps. An internal channel is welded in place to increase strength and stability for fabrication. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections.
Product Warning:
1-1/2" (38 mm) Square Premium Cap Rail works only with 1/2" (12 mm) glass, secured with 95CBL silicone and shims.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Highlights: precision-forged square cap rail, welded internal channel for added rigidity, compatible with premium corners, available in 304 stainless (316 on request)—ideal for architectural railing and glass railing projects. Order SKU GRS15PS or contact CRL for pricing and lead times.
