Product Details
- Designed for Interior Use Only
- For 1/2" (12 mm) Tempered Glass
- Available in Three Heights with or without a Lock
- Dry Glaze Slender Profile Door Rails are Only 1" (25 mm) Wide
- Brushed or Polished Stainless Steel Finishes
- Custom 1" (25 mm) Slender Profile Vertical Stiles Available on Special Order
- Use Monolithic Tempered Glass

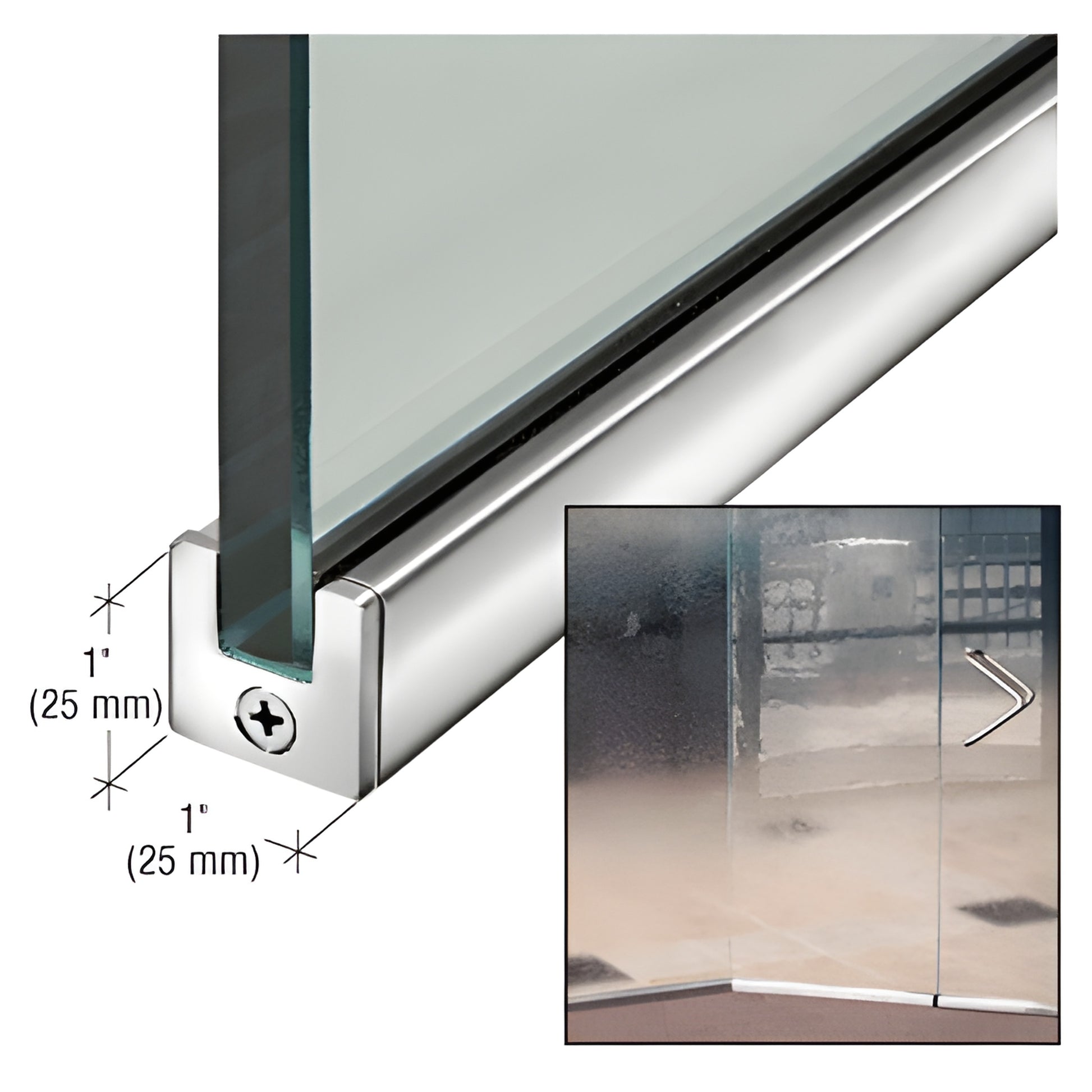

CRL Slender Profile Door Rails measure only 1" (25 mm) wide and are available in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). They are all prepped to receive any of the three Slender Profile Rail Pivot Inserts, ordered separately, that allow you to use overhead door closers, floor mounted door closers, or pivots. All Slender Profile Rails can be fitted with our 7150 Series Cam Lock for use in display case applications. Other locking options may be available on special order.
All Slender Profile Rails are designed for field installation and are easily adjusted to compensate for unexpected installation issues. Rails feature aluminum construction, clad in alloy 304 stainless steel for a durable, lasting finish.
ORDERING INFORMATION:
• Compatible Pivots: CRL860BS Top Pivot 1NT402 Bottom Pivot.
• End Caps are included with all Slender Profile Door Rails.
• Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.
• When 7150 Series Cam Lock is required, handing of the door must be specified.
• Slender Profile Rails are prepped to receive any of the Slender Profile Door Rail Pivot Inserts (sold separately).
• Installation Instructions and Adjustment Wrenches are included.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
