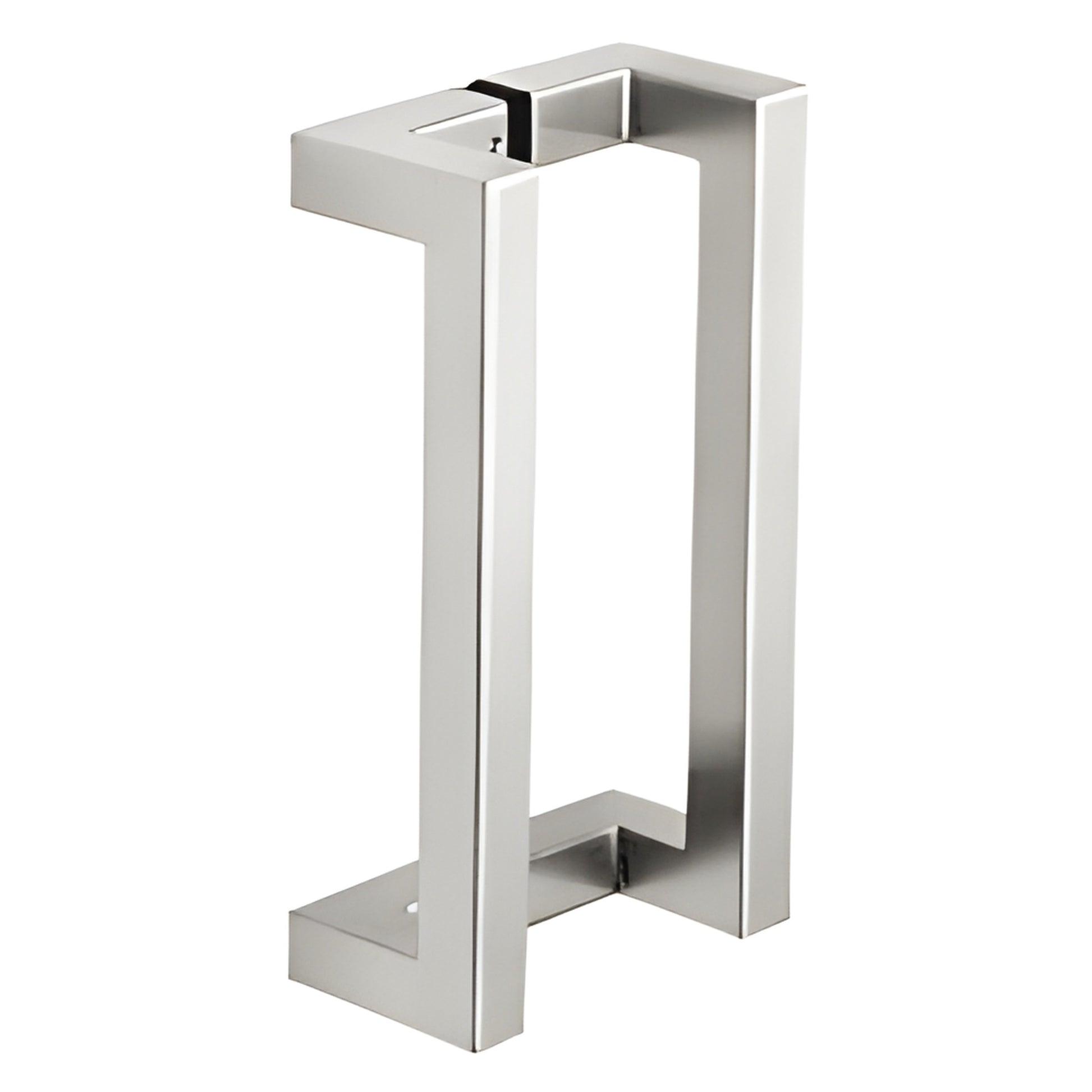

CRL 10" Polished Stainless Steel Glass Door Offset Back-to-Back Pull
CRL 10" Polished Stainless Steel Glass Door Offset Back-to-Back Pull
Regular price
$202.48 CAD
Regular price
Sale price
$202.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S010X10PS
Shipping Weight: 2.44 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.44 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Overview
- For use with 3/8" to 3/4" (10 to 19 mm) tempered glass doors
- Extra bolts available, sold separately
- Available in four sizes and two finishes
CRL Contemporary Offset Square Tubular Pull Handle (SKU: S010X10PS) is a back-to-back mounted glass door pull supplied with through-bolts for secure installation. Designed for tempered glass doors 3/8" to 3/4" (10 to 19 mm), these stainless steel offset square tubular pulls are offered in 10", 12", 18" and 24" lengths and in polished stainless or brushed stainless finishes. Constructed from 1" (25 mm) diameter stainless-steel tubing, they provide a modern, durable pull solution for commercial and residential glass entry, shower and storefront applications.
SPECIFICATIONS:
For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-bolts for glass mounting
4 Each: 1-1/4" (32 mm) Diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care details.
Order the S010X10PS offset square tubular glass door pull today to upgrade your glass door hardware—contact us or add to cart now.
Specifications
CAD Drawings - dwg
