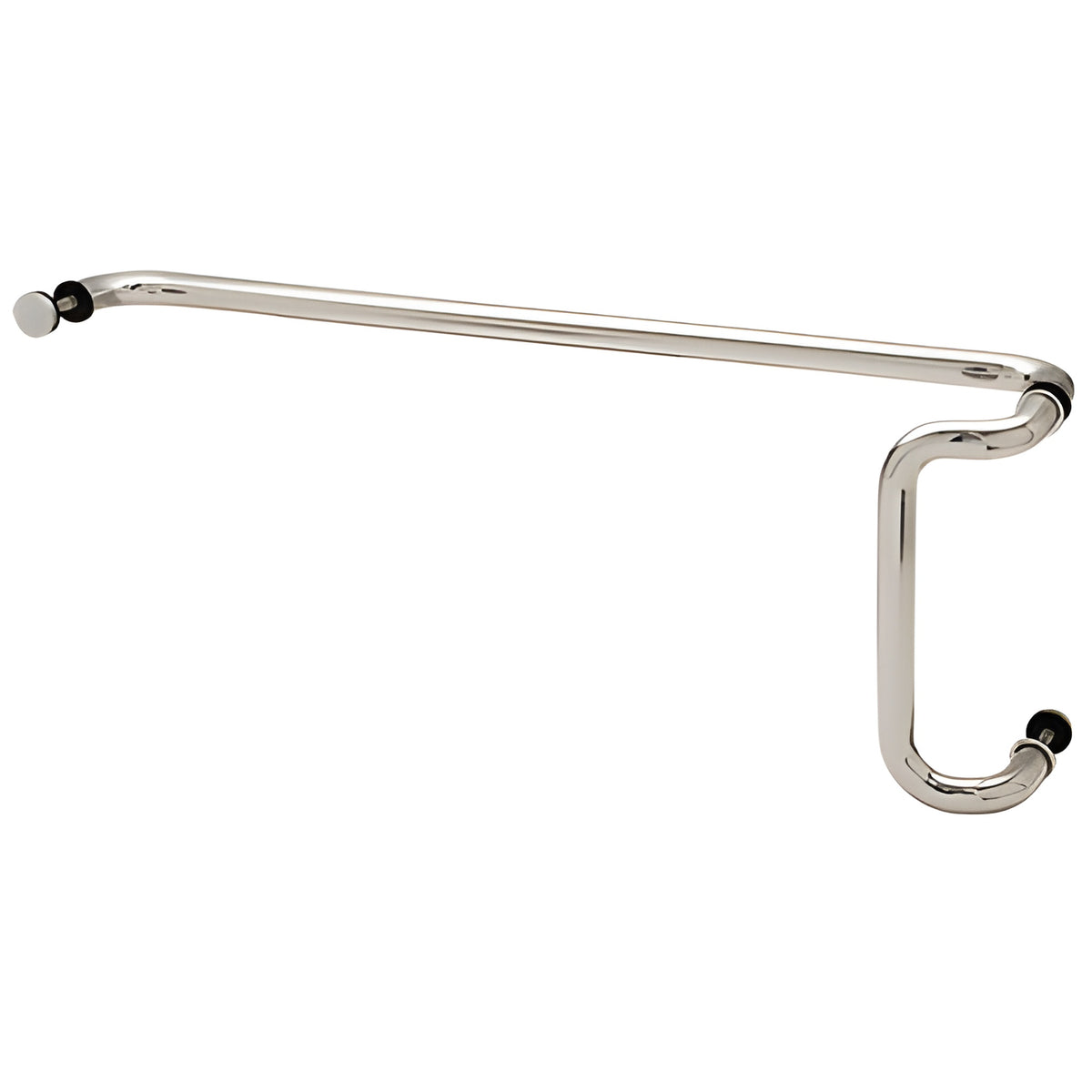

CRL Polished Stainless 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set
Item# CD10X28PS
Shipping Weight: 1.46
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.46
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Diameter1 in. (25 mm)
- Finish/Color:Polished Stainless Steel
- Glazing Thickness3/8 in. To 3/4 in. (10 mm To 19 mm)
- Mounting Hole Diameter5/8 in. (16 mm)
- Mounting TypeBack-to-Back
- Pull Mounting Center To Center10 in. (254 mm)
- Push Mounting Center To Center28 in. (711 mm)
- Style Washer Diameter1-1/4 in. (32 mm)
- Style WashersYes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
