CRL 12 x 28 Polished Stainless Offset Back-to-Back Push-Pull Handle

• For use with 3/8" to 3/4" (10 to 19 mm) glass (monolithic tempered glass compatible)
• 1" (25.4 mm) diameter stainless steel or brass tubing
• Available in many architectural finishes
• Glass fabrication: three 5/8" (16 mm) holes at specified center-to-center dimensions

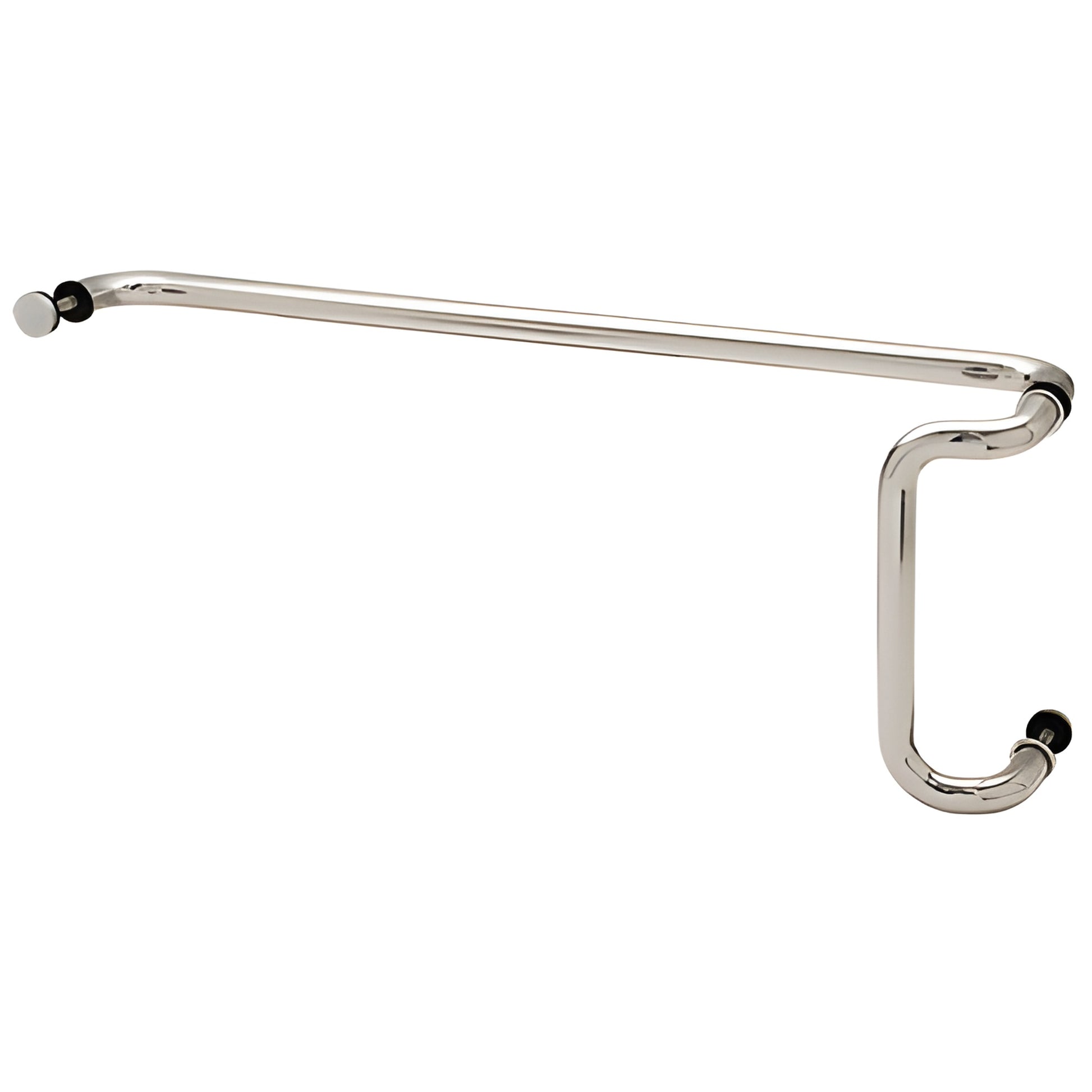

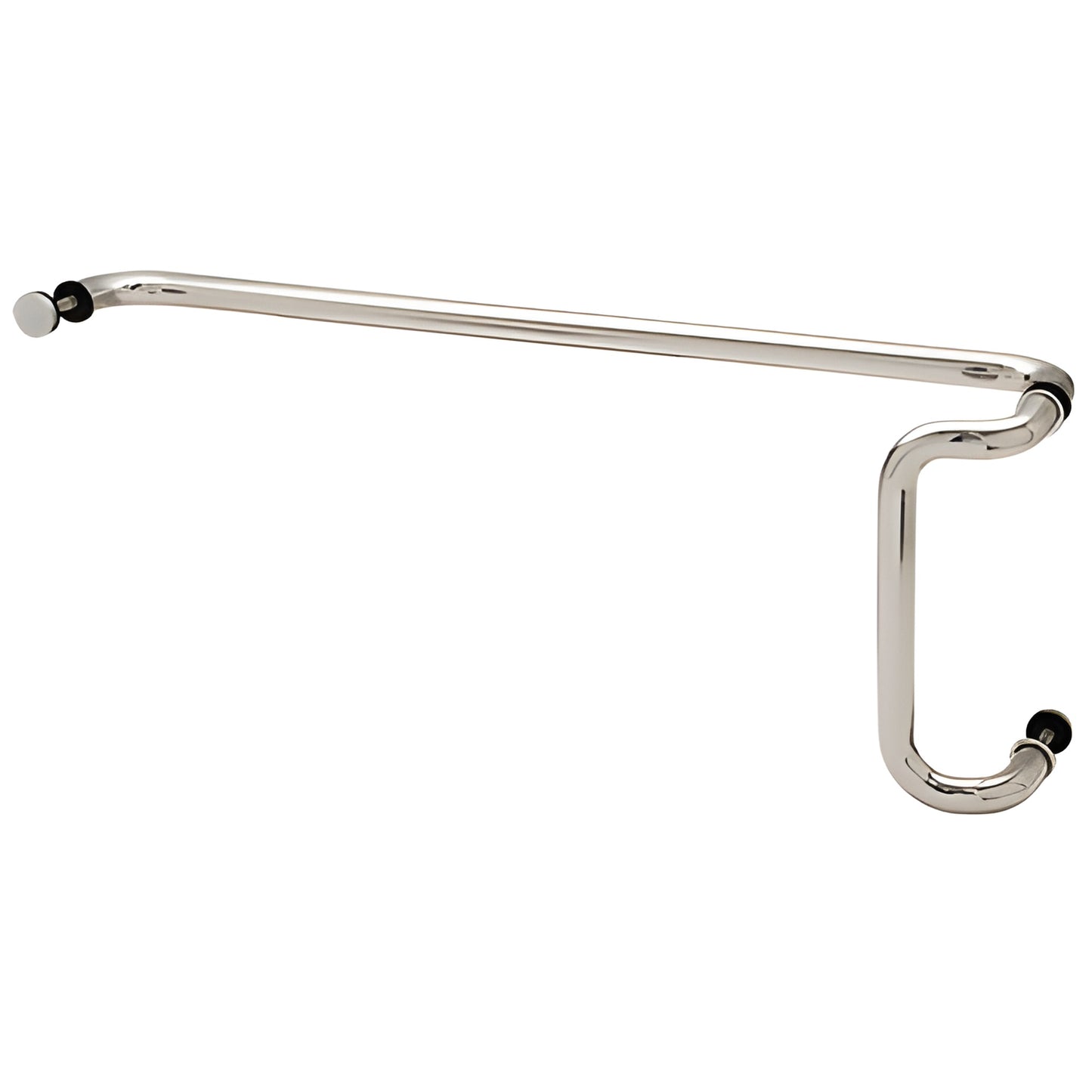

This CRL Glass Mounted Straight Push/Pull Handle Combination (SKU: CD12X28PS) is designed for frameless glass doors and shower doors requiring a durable, attractive glass-mounted push/pull handle. Available in multiple sizes and architectural finishes, it suits commercial and residential glass door applications where a clean, modern aesthetic and sturdy operation are required.


SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25.4 mm) diameter stainless steel or brass tubing
Glass Fabrication Required:
Three 5/8" (16 mm) diameter holes at the following center-to-center dimensions:
10" (254 mm)
12" (305 mm)
28" (711 mm)
33" (838 mm)
Offset: 3" (76 mm) center-to-center
Optional: 1-1/4" (32 mm) diameter available on special order

INCLUDES:

• 2 each: through-bolts for glass mounting
• 4 each: 1-1/4" (32 mm) matching finish metal washers and rubber gaskets
