Product Details
- Uses Top Loading Roll-In Glazing Gasket for 3/8" and 1/2" (10 and 12 mm) Glass
- Ideal for Recessed 'All-Glass' Installations
- Use Monolithic Tempered Glass
- Nine Standard Architectural Finishes
- Custom Finishes and Powder Painting Available
- Custom Lengths Available

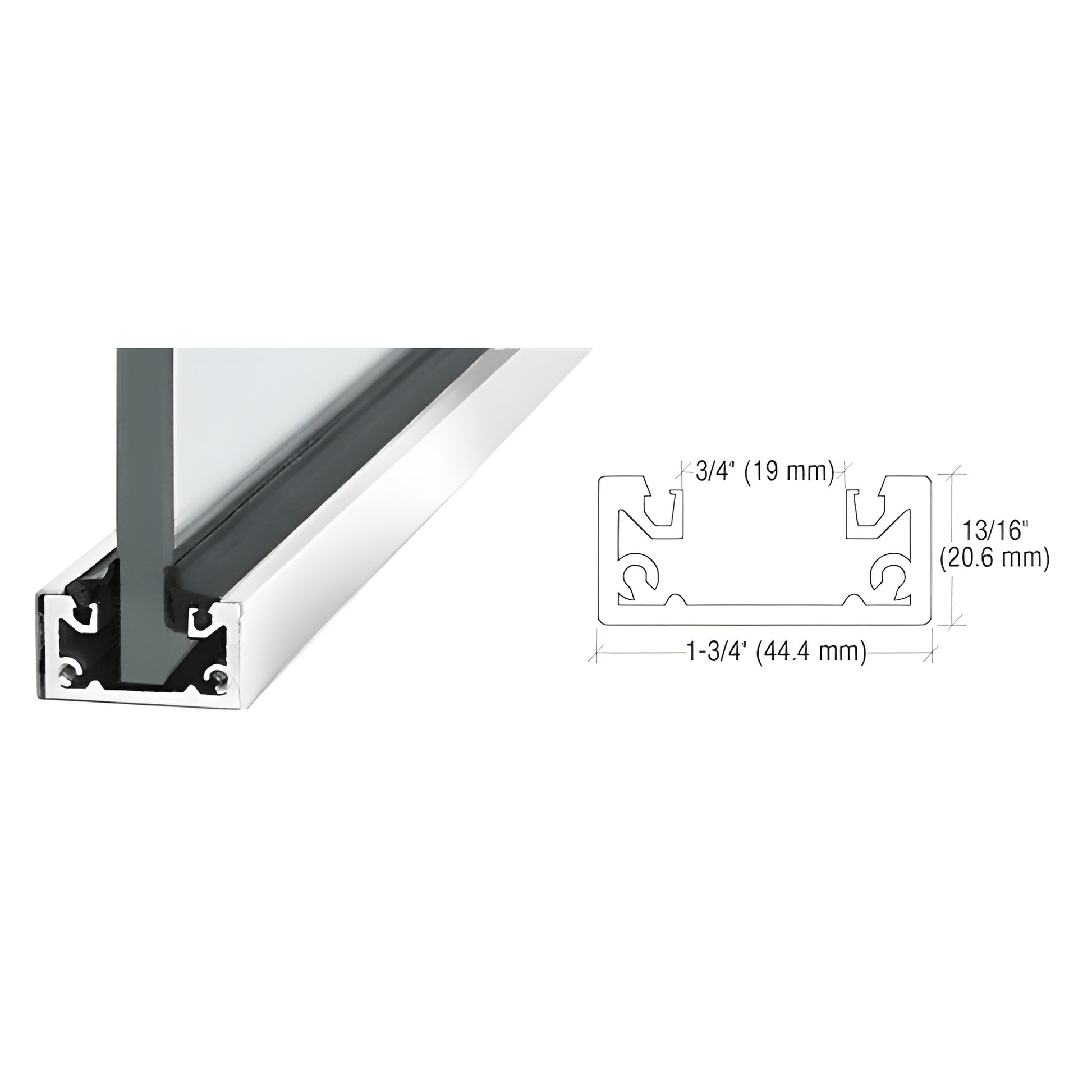

CRL Shallow U-Channel a can be used for a variety of installations, such as for a sash channel above a header, on walls or floors where either drywall or finished flooring can conceal the channel creating a truly 'All-Glass' look. Stock lengths are sold in 120" (3.05 m) or 240" (6.10 m) lengths.
NOTE: For installations using 1/2" (12 mm) glass, the Roll-In Glazing Gasket is included in the package. If using 3/8" (10 mm) glass the Roll-In Glazing Gasket must be ordered separately.
Product Warning:
This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
