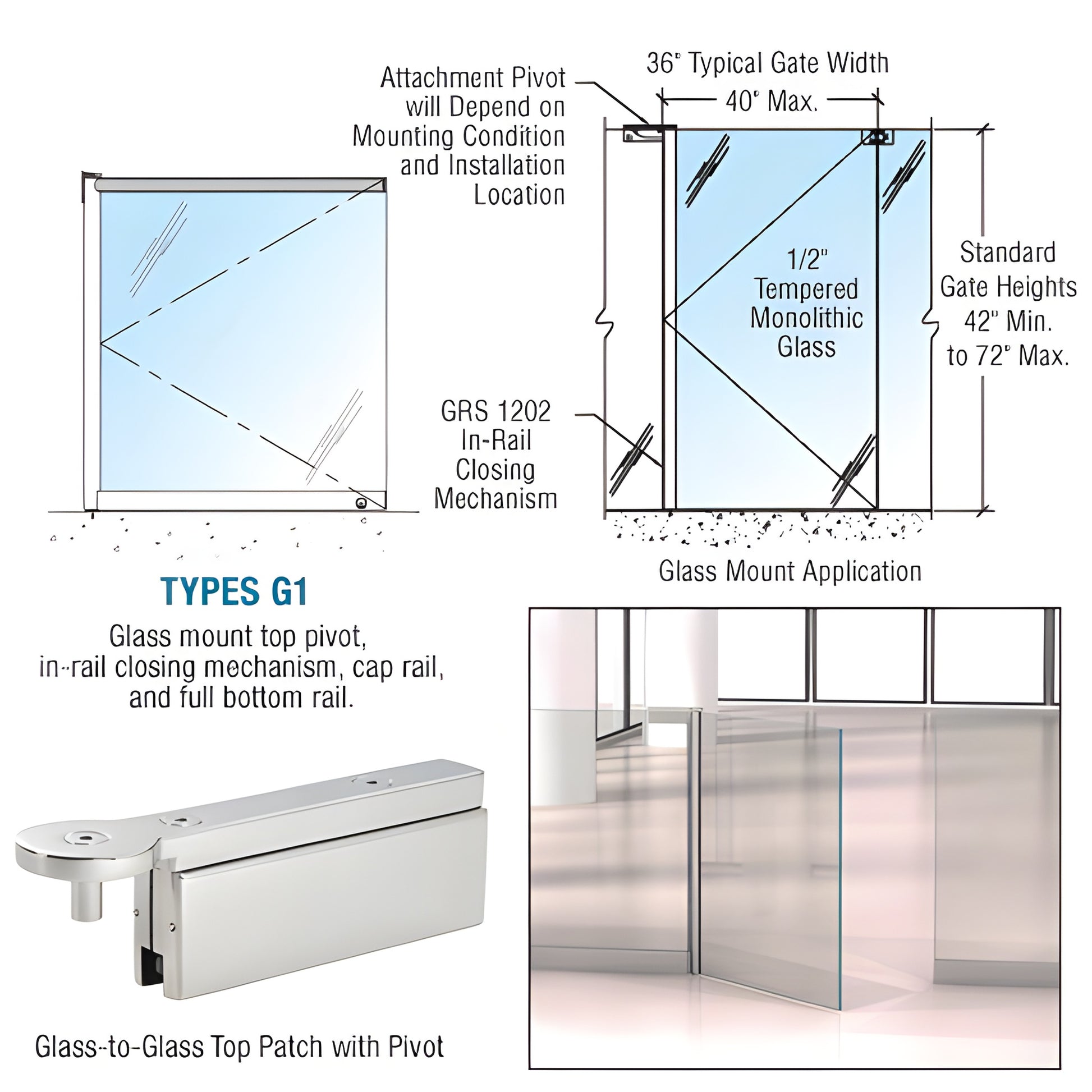

CRL 1202 Polished Stainless Steel Glass-to-Glass Gate w/In-Rail Closer
CRL 1202 Polished Stainless Steel Glass-to-Glass Gate w/In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202G1PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail
- Elegant design with reliable, functional operation
- Unique in-rail closing device concealed in the vertical post
- Round vertical edge gate pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swing design
- Optional locks available
Designed for commercial and residential glass railing projects, these swinging glass gates integrate seamlessly with the GRS Glass Rail System and Wedge-Lock® Door Rail System. Top and bottom swing on heavy-duty ball-bearing pivots for smooth, reliable operation. Minimum height required: 40". Maximum gate size: 40" x 70".
Our engineers engineered a concealed In-Rail Closing Mechanism inside the vertical post, eliminating bulky floor enclosures. The closer automatically returns the gate to the closed position and features adjustable closing speed—ideal for commercial glass gate installations and residential pool safety gates.
Availability: Custom order only. Most orders fabricated in five business days at our Los Angeles, CA manufacturing facility. Contact our Technical Sales Department for assistance. SKU: 1202G1PSC
Product Warning: All swinging gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to maintain the factory finish. For more details, view the Stainless Steel Disclaimer in Technical References.
For a custom quote, installation guidance, or lead-time confirmation for SKU 1202G1PSC, contact our Technical Sales team today.
Specifications
CAD Drawings - pdf
