CRL 1202 Polished Stainless Glass-to-Glass Gate w/In-Rail Closer
CRL 1202 Polished Stainless Glass-to-Glass Gate w/In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202G3PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview

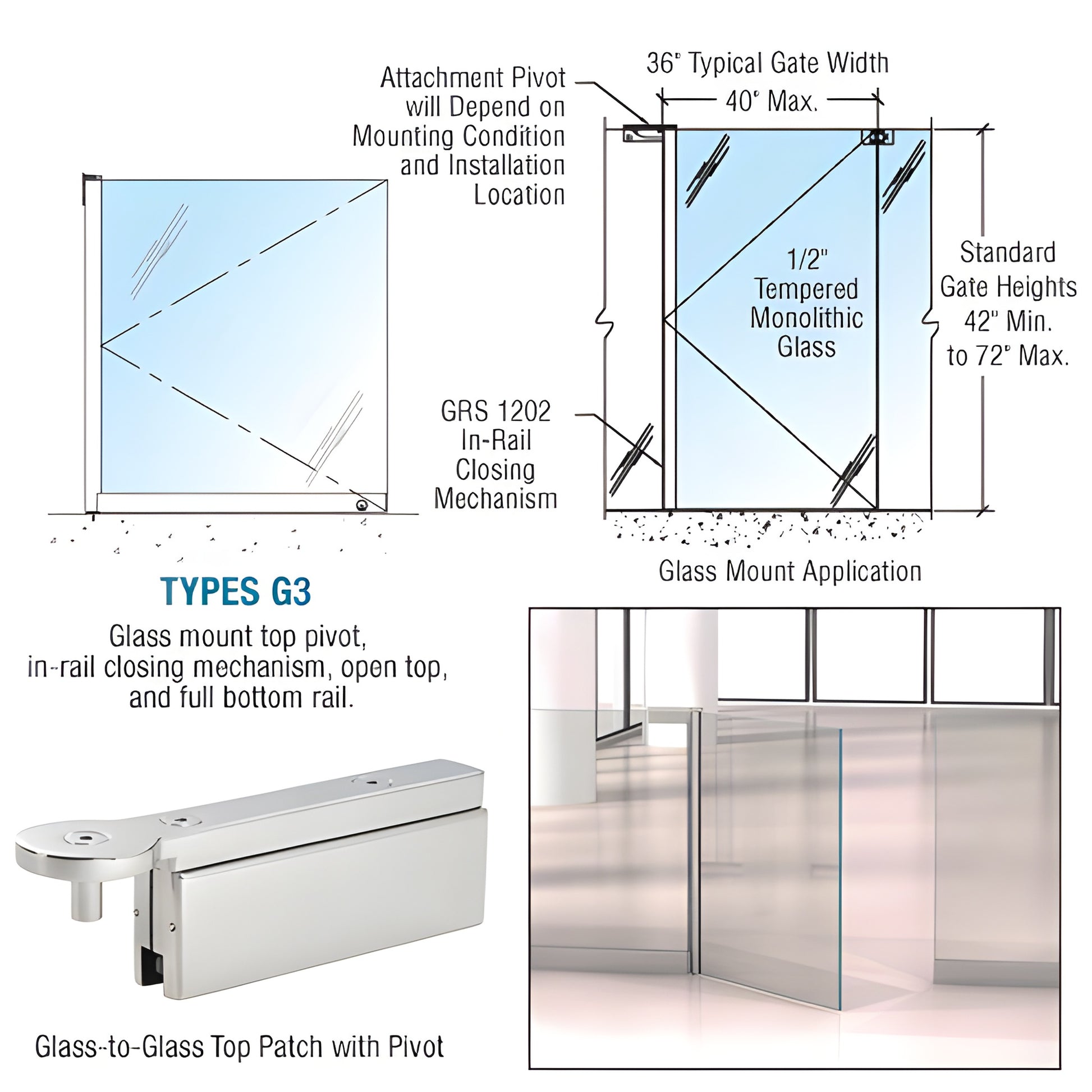

- Heavy-duty glass gate with optional cap rail
- Attractive design with reliable, functional operation
- Unique in-rail closing device concealed in the vertical post
- Round vertical edge gate pivot post prevents finger pinch
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swing design
- Optional locks available
SKU: 1202G3PSC
Designed for commercial and residential use, these Swinging Gates pair seamlessly with our GRS Glass Rail System or Wedge-Lock® Door Rail System and can be combined with GRS cap rails. The gate pivots on heavy-duty ball-bearing top and bottom pivots for smooth operation.
Minimum height required: 40". Maximum gate size: 40" x 70".
Our engineers developed a concealed in-rail closing mechanism inside the vertical post to eliminate bulky floor enclosures. The closer returns the gate to a closed position and features adjustable closing speed for safe, controlled operation. NOTE: Available by custom order only. Most orders are fabricated within five business days at our Los Angeles, California facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section.
Highlight: concealed in-rail closer, tempered glass compatibility, and finger-safe pivot post make SKU 1202G3PSC ideal for commercial glass railing and residential glass gate projects. Contact us to place a custom order or get technical support.
Specifications
CAD Drawings - pdf
