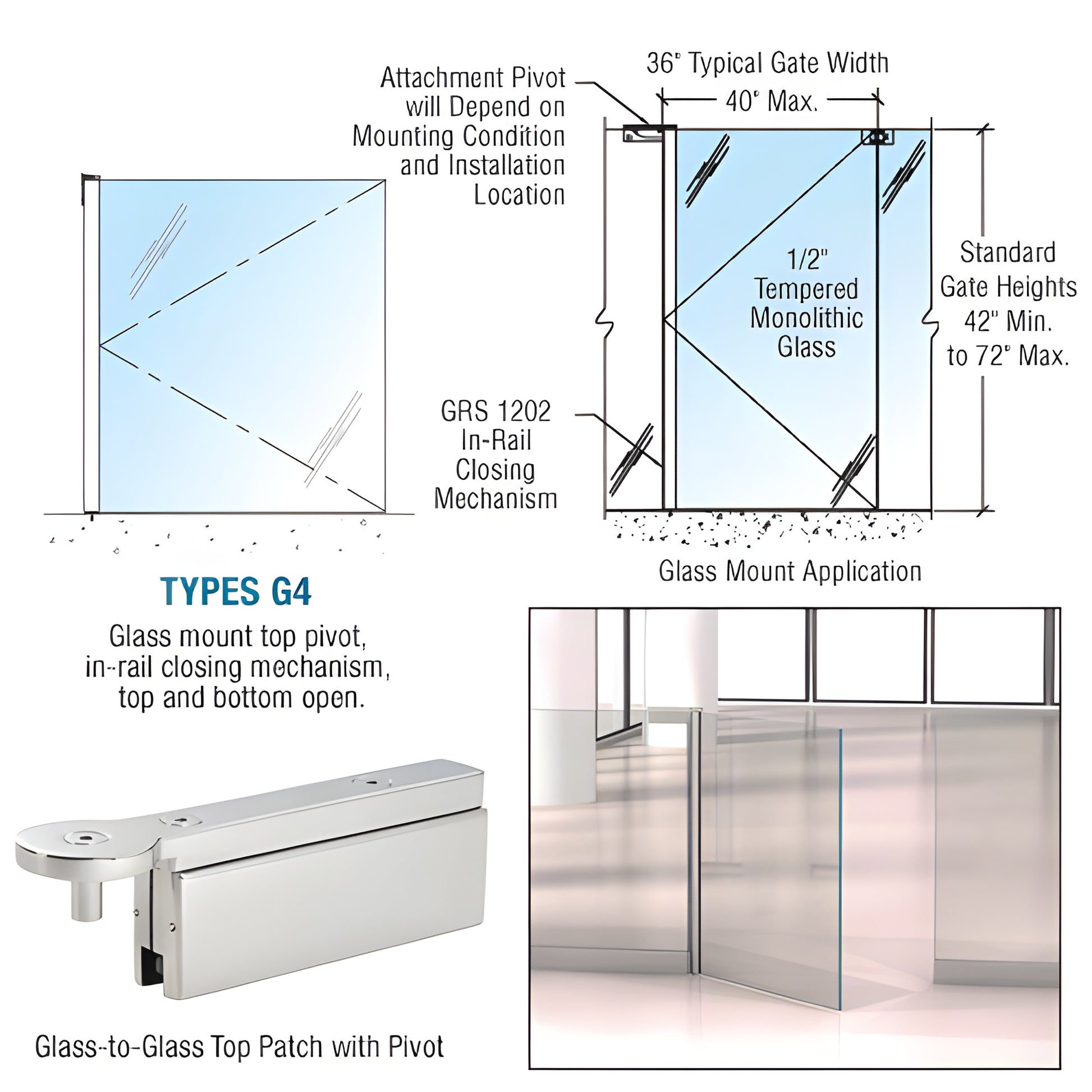

CRL 1202 Polished Stainless Frameless Glass Gate with In-Rail Closer
CRL 1202 Polished Stainless Frameless Glass Gate with In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202G4PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail for commercial and residential applications
- Attractive design with reliable, functional operation
- Unique in-rail closing mechanism concealed in the vertical post (adjustable closing speed)
- Round vertical edge gate pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold open) swinging gate design
- Optional locks available
We offer a series of tempered-glass swinging gates ideal for commercial glass gates, residential glass pool gates, or integration with our GRS Glass Rail System and optional GRS cap rails. These gates are derived from our Wedge-Lock® Door Rail System and pivot on heavy-duty ball-bearing top and bottom pivots for smooth, durable operation.
Minimum height required 40". Maximum gate size 40" x 70".
Our engineers created a concealed In-Rail Closing Mechanism inside the vertical post, eliminating bulky floor enclosures. The closer returns the gate to the closed position with adjustable closing speed for safer, code-friendly operation. NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance. SKU: 1202G4PSC
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Ready to specify a custom tempered-glass swinging gate? Contact our Technical Sales Department for a quote and lead-time.
Specifications
CAD Drawings - pdf
