CRL 1202 Stainless Steel Post Gate w/In-Rail Closer & Cap/Bottom Rail
CRL 1202 Stainless Steel Post Gate w/In-Rail Closer & Cap/Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202P1PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

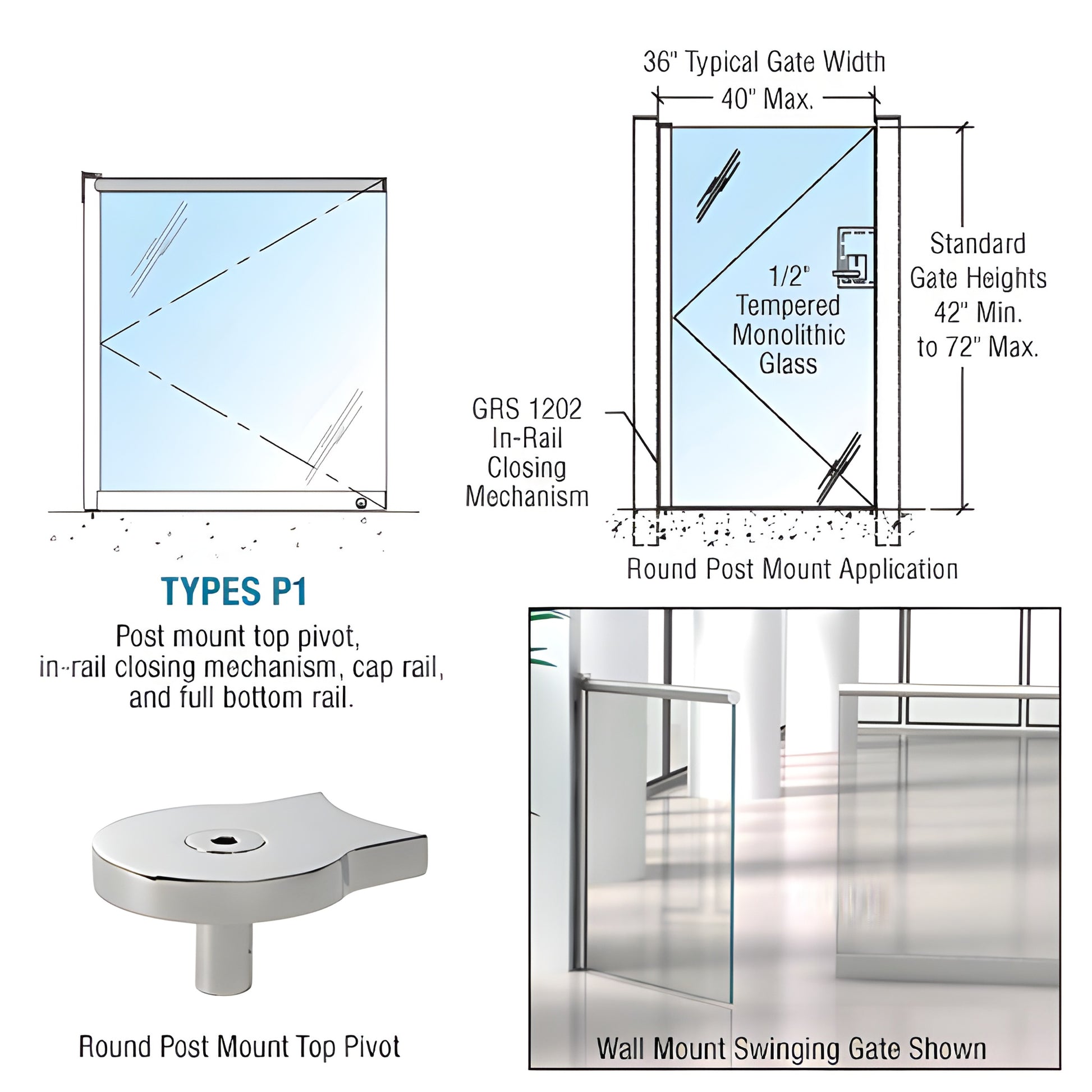

Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail
- Attractive design with reliable, functional operation
- Unique in-rail closing device concealed in the vertical post
- Round vertical edge pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swing design
- Optional locks available
Our Swinging Gates (SKU: 1202P1PSC) are engineered for commercial and residential glass railing installations and integrate seamlessly with the GRS Glass Rail System and Wedge-Lock® Door Rail System. Top and bottom heavy-duty ball-bearing pivots ensure smooth, durable operation. Ideal long-tail keyword: glass swing gate for residential and commercial use.
Minimum required height: 40". Maximum gate size: 40" x 70".
Engineers designed a concealed in-rail closing mechanism inside the vertical post—no large floor enclosures required. The closer reliably returns the gate to closed and features adjustable closing speed, a key benefit for tempered glass gate installations.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
To order SKU 1202P1PSC or get a custom quote for a glass swing gate tailored to your project, contact Technical Sales today.
Specifications
CAD Drawings - pdf
