CRL 1202 Polished Stainless Custom Post-Mounted Gate w/In-Rail Closer
CRL 1202 Polished Stainless Custom Post-Mounted Gate w/In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202P3PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview

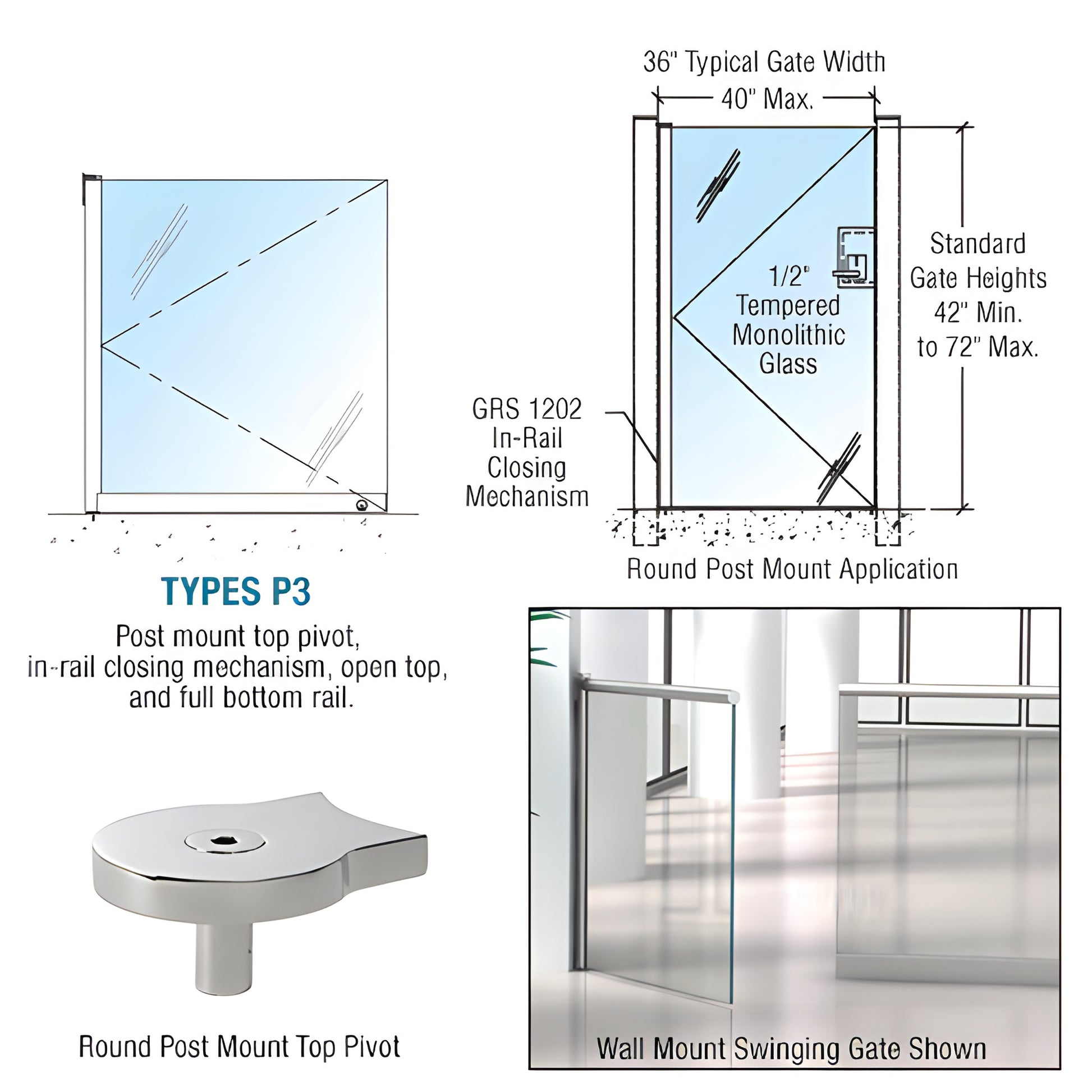

- Heavy-duty glass gate with optional cap rail
- Elegant design engineered for reliable operation
- Unique in-rail closing mechanism concealed in the vertical post
- Round vertical edge pivot post prevents finger pinch
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swinging gate design
- Optional locks available
CRL SKU: 1202P3PSC — Swinging Gates for commercial and residential applications, compatible with the GRS Glass Rail System and our Wedge-Lock® Door Rail System. Top and bottom swing on heavy-duty ball-bearing pivots for smooth, reliable operation.
Minimum height required: 40". Maximum gate size: 40" x 70".
Our engineers designed a concealed in-rail closing mechanism housed in the vertical post to eliminate bulky floor enclosures. The closer returns the gate to the closed position with adjustable closing speed — ideal for tempered glass swinging gates where a clean aesthetic and dependable closing are required.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
To customize a heavy-duty tempered glass swinging gate (SKU 1202P3PSC) or request lead time and shipping weight, contact CRL Technical Sales today.
Specifications
CAD Drawings - pdf
