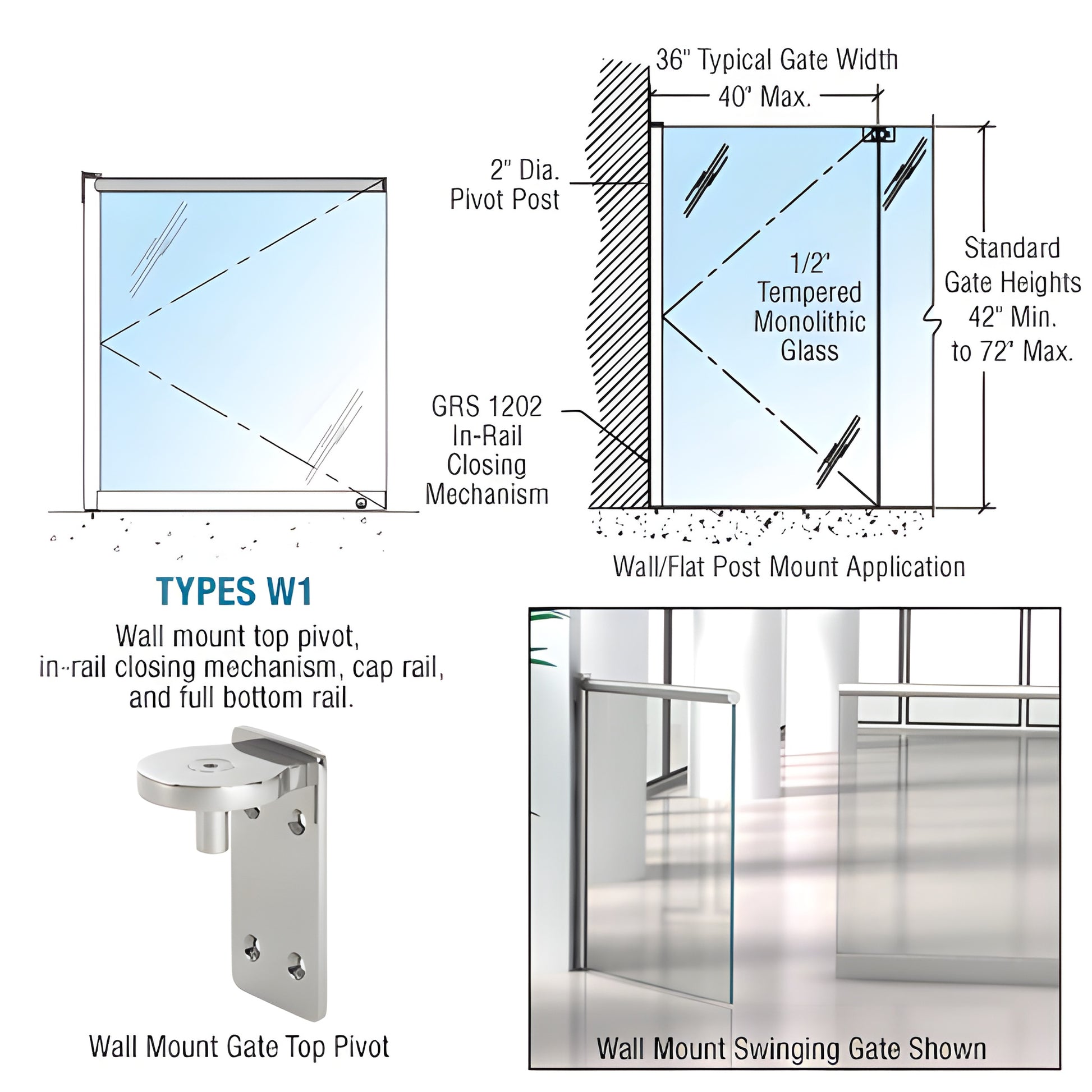

CRL 1202 Polished Stainless Wall Gate w/In-Rail Closer & Cap Rail
CRL 1202 Polished Stainless Wall Gate w/In-Rail Closer & Cap Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202W1PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail for commercial and residential applications
- Attractive design with smooth, functional operation
- Unique in-rail closing device concealed in the vertical post (adjustable closing speed)
- Round vertical edge pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass panels
- Double-acting, no hold-open self-closing design
- Optional locks available
We offer Swinging Gates designed for standalone use or integration with the GRS Glass Rail System. Built from the Wedge-Lock® Door Rail System, these gates accept GRS cap rails and swing on heavy-duty ball-bearing pivots for long-lasting, reliable performance.
Minimum required height: 40". Maximum gate size: 40" x 70".
Our engineers developed a concealed In-Rail Closing Mechanism housed inside the vertical post—no large floor enclosures required. The closer automatically returns the gate to the closed position and allows adjustable closing speed. Note: Available by custom order only. Most orders ship from our Los Angeles, California facility in five business days. Contact our Technical Sales Department for assistance. SKU: 1202W1PSC.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Why choose this gate? Concealed closing mechanism, ball-bearing pivots, tempered-glass compatibility, and custom fabrication make this a durable, safe choice for residential and commercial glass railing projects. Contact us to configure your gate and place a custom order.
Specifications
CAD Drawings - pdf
