CRL 1202 Polished Stainless Steel Wall-Mounted Gate with In-Rail Closer
CRL 1202 Polished Stainless Steel Wall-Mounted Gate with In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202W2PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Specify
Material
Stainless Steel
Overview

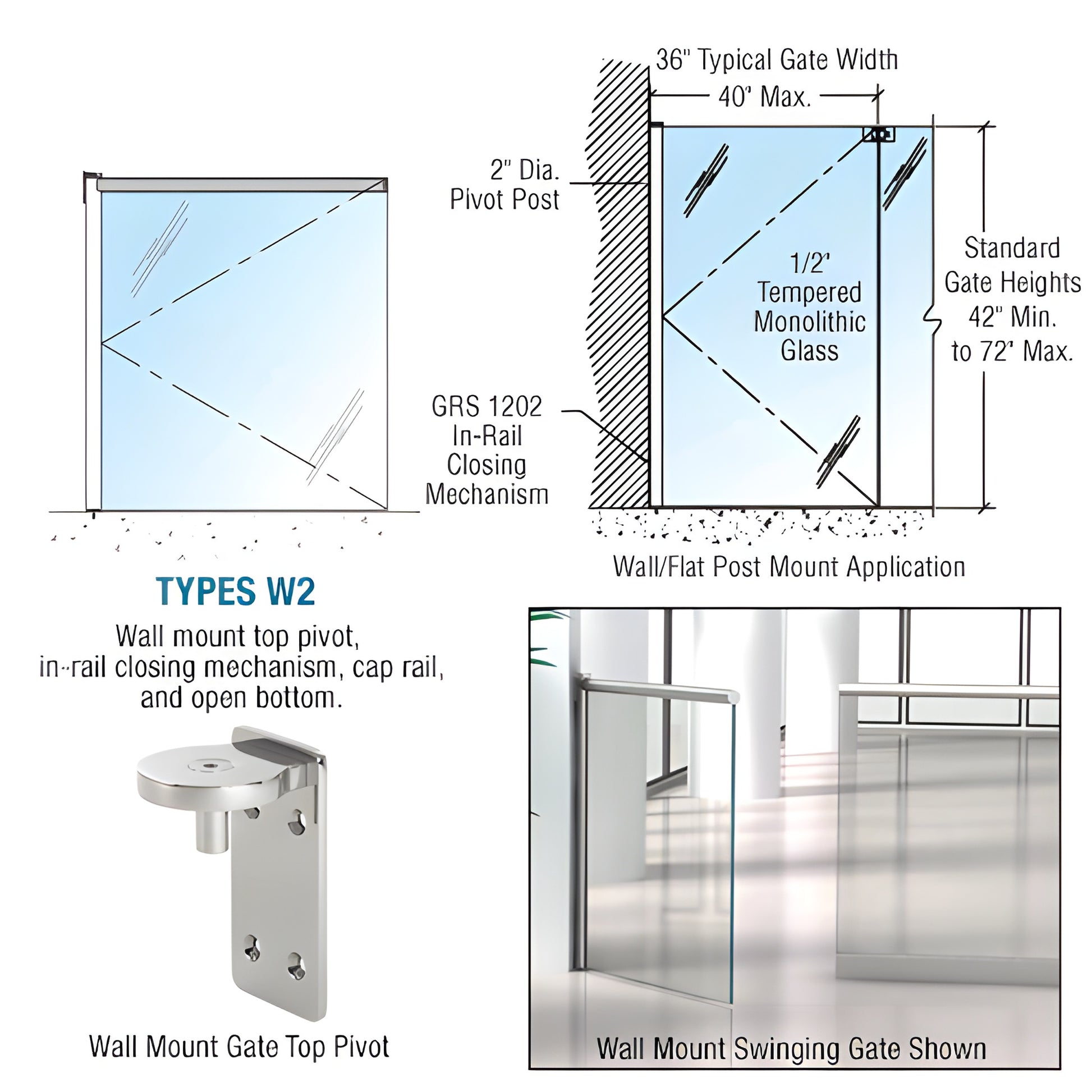

- Heavy-duty glass gate with optional cap rail
- Attractive design with smooth, functional operation
- Unique in-rail closing mechanism concealed in the vertical post
- Round vertical edge pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swing design
- Optional locks available
The Swinging Gate (SKU: 1202W2PSC) is engineered for commercial and residential glass rail applications and integrates seamlessly with the GRS Glass Rail System and Wedge-Lock® Door Rail System. Top and bottom swing action runs on heavy-duty ball-bearing pivots for durable, low-friction operation.
Minimum required height: 40". Maximum gate size: 40" x 70".
Our unique in-rail closing mechanism is concealed inside the vertical post—eliminating bulky floor enclosures. The closer automatically returns the gate to the closed position and features adjustable closing speed for precise control. This concealed closer is a key differentiator for clean aesthetics and reliable performance in glass swing gate installations.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications. Confirm glass thickness and maximum gate dimensions before ordering.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
For custom glass swing gate pricing, lead times, or installation guidance for SKU 1202W2PSC, contact our Technical Sales team today.
Specifications
CAD Drawings - pdf
