CRL Polished Stainless Steel 135° Storefront Glass Clamp
Item# MFC38
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
304 Stainless Steel
- Commonly used in malls for joining vertical interior lites of glass
- Fits 3/8" to 1/2" (10 to 12 mm) tempered glass
- Available in Brushed or Polished 304 stainless steel
- Contemporary designs for mall storefronts and interior glass walls
- Designed for monolithic tempered glass applications

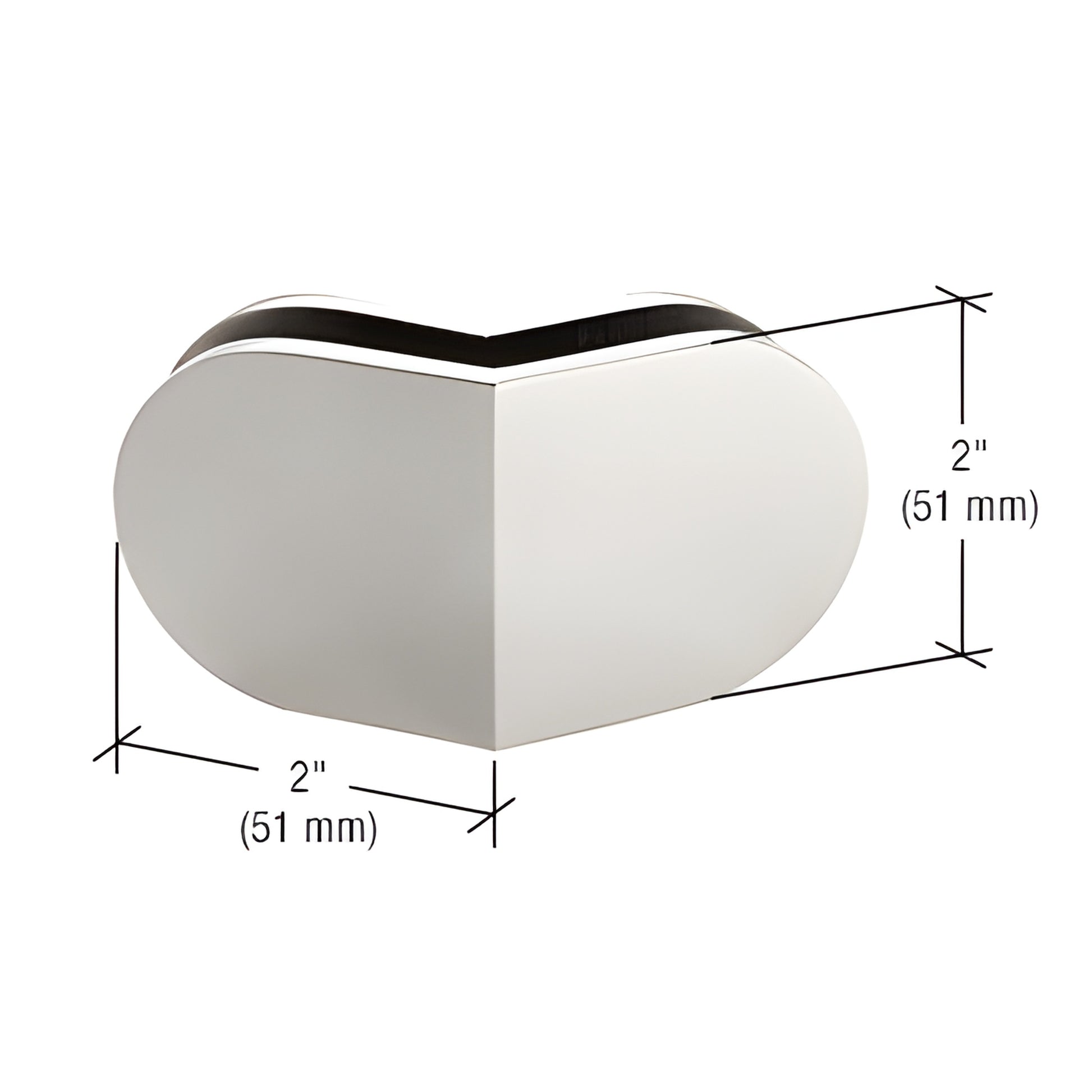

CRL 135 Degree Round Mall Front Clamp (SKU: MFC38) joins vertical glass wall panels set at right angles to provide rigidity and reduce flexing under pressure. Commonly used in mall storefronts and interior glass storefront systems, this mall front clamp also serves as a floating visual indicator to alert pedestrians to panel edges in low-light areas.
Installs using CRL Cat. No. 491012 or AT04012 Clear Very Hi‑Bond Tape and CRL RTV408C Clear Silicone (Cat. No. RTV408C) and uses neutral cure silicone for permanent interior bonds.
P612** replacement screws
All CRL mall front clamps come in several finishes and are sized for 3/8" or 1/2" (10 or 12 mm) glass. They install easily with CRL RTV408C Clear Silicone.
Product Warning:
NOTE: Clamp is made of type 304 stainless steel and is intended for interior applications only.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Order the CRL 135 Degree Round Mall Front Clamp (MFC38) for secure, low-profile joins of 3/8"–1/2" tempered glass in mall storefront and interior glass wall applications. Contact CRL Customer Service to confirm shipping weight or finish availability.
