CRL Polished Stainless 2-Panel Overhead Double-Track Sliding Hardware
CRL Polished Stainless 2-Panel Overhead Double-Track Sliding Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0TS22PS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Double Track 2 Panel Bi-Pass
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Width
72 in. (1829 mm)
Series
OT Overhead Track Slider
Overview
- Four-Roller Units Silently Move the Door Rails
- Provides a Flush Bottom Surface
- Available in Several Configurations and Architectural Finishes

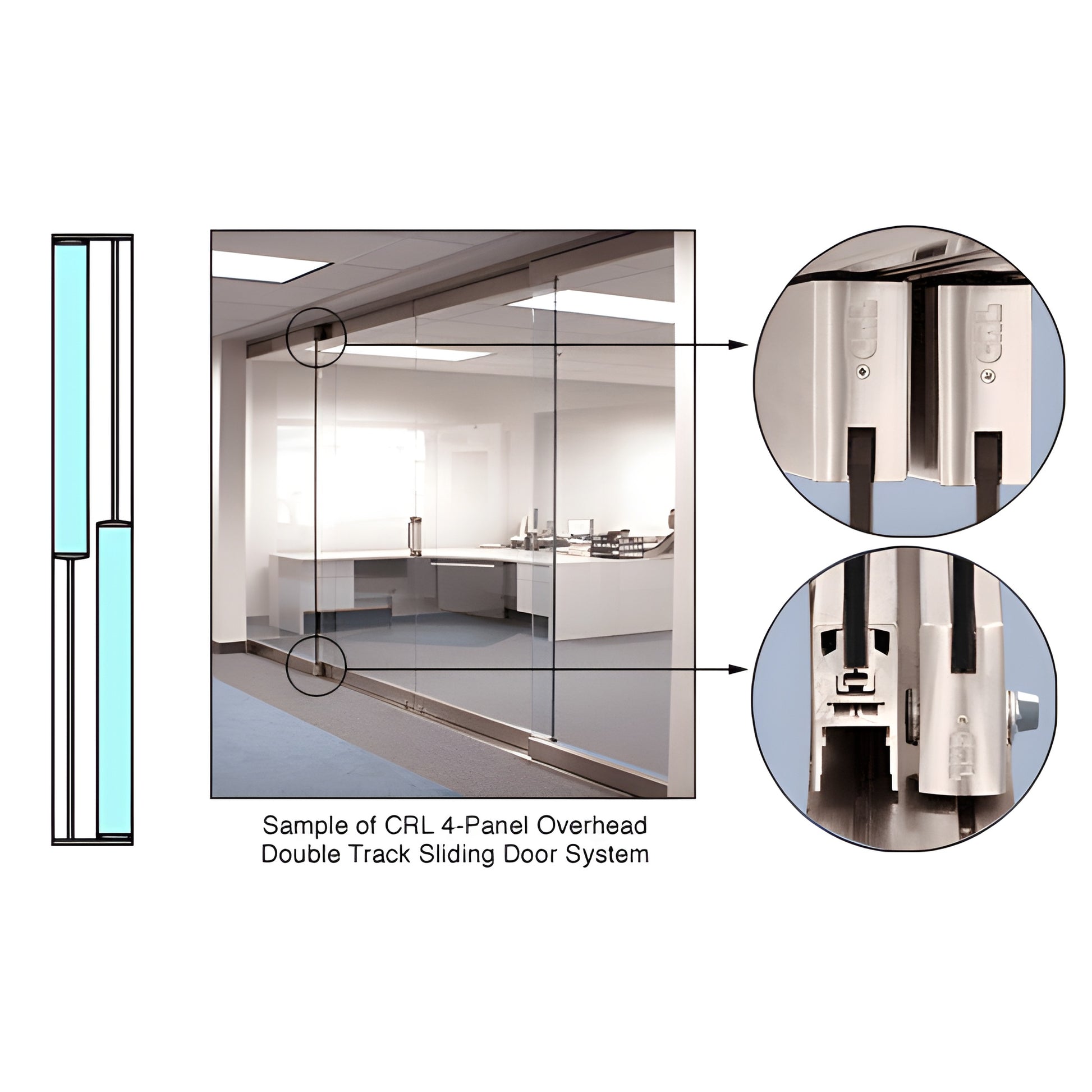

CRL Overhead Track Sliding Door Systems (SKU: 0TS22PS) are engineered for smooth residential and commercial overhead sliding door installations. Systems are offered in four standard configurations and hang each sliding panel from two Cat. No. 0TCA carriage assemblies for reliable support. Maximum panel weight must not exceed 225 lbs. (102 kg); maximum panel width is 72" (1.83 m) and minimum panel width is 25" (635 mm). These overhead sliding door track systems provide a flush bottom surface ideal for accessible doorways and modern architectural applications.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales Department for additional information.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For maintenance guidance, view the Stainless Steel Disclaimer in the Technical References section below.
