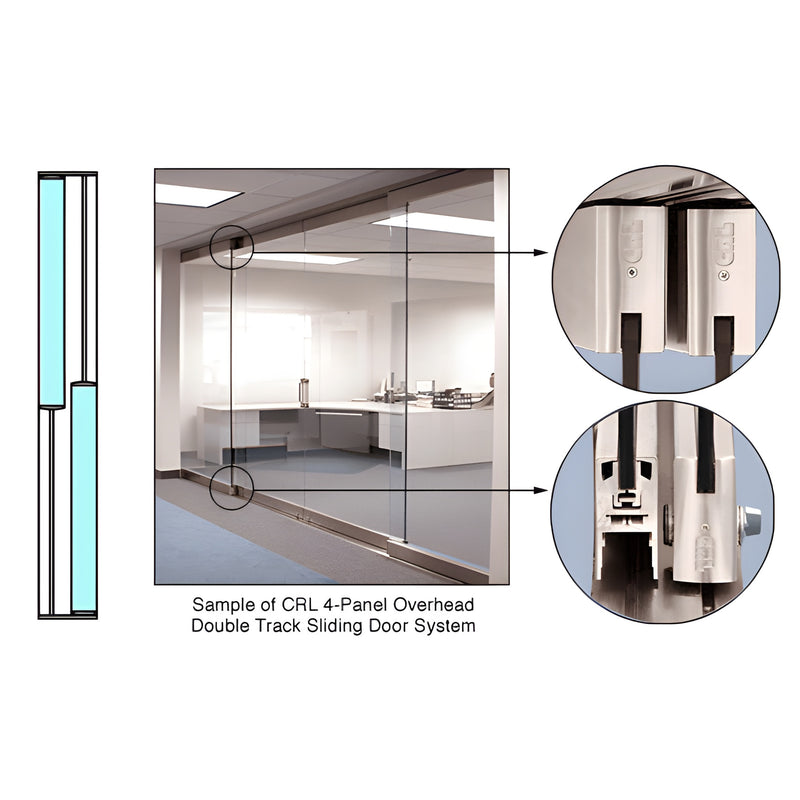

CRL Polished Stainless 2-Panel Overhead Double-Track Sliding Hardware

• Four-Roller Units Silently Move the Door Rails
• Provides a Flush Bottom Surface
• Available in Several Configurations and Architectural Finishes

CRL Overhead Track Sliding Door Systems (SKU: 0TS22PS) are engineered for smooth residential and commercial overhead sliding door installations. Systems are offered in four standard configurations and hang each sliding panel from two Cat. No. 0TCA carriage assemblies for reliable support. Maximum panel weight must not exceed 225 lbs. (102 kg); maximum panel width is 72" (1.83 m) and minimum panel width is 25" (635 mm). These overhead sliding door track systems provide a flush bottom surface ideal for accessible doorways and modern architectural applications.


NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales Department for additional information.

Stainless Steel Advisory:
