Product Details
- Commonly Used in Malls for Joining Vertical Interior Lites of Glass
- Available in Brushed or Polished 304 Stainless and 260 Brass
- For 3/8" to 3/4" (10 to 19 mm) Thick Tempered Glass
- Use Monolithic Tempered Glass

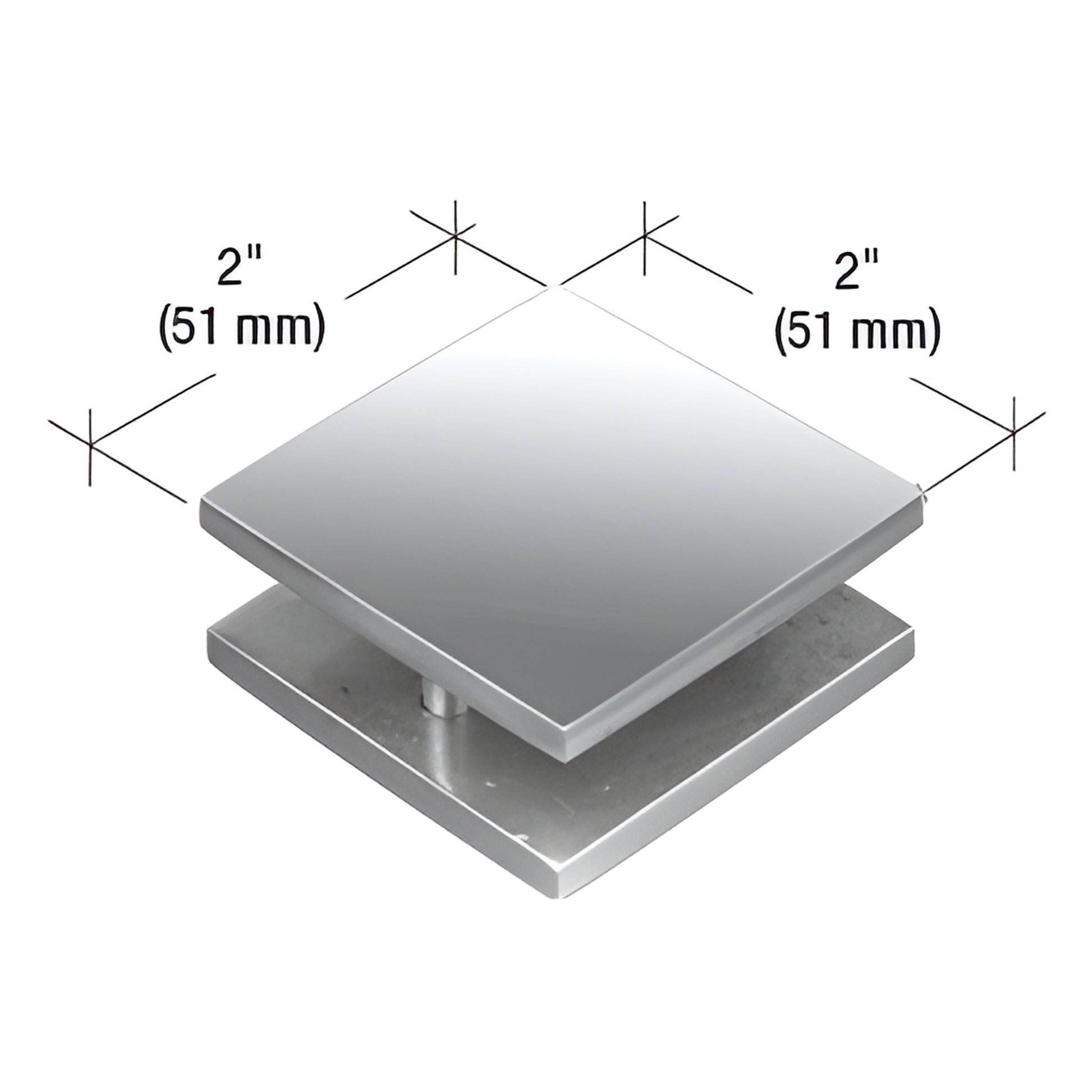

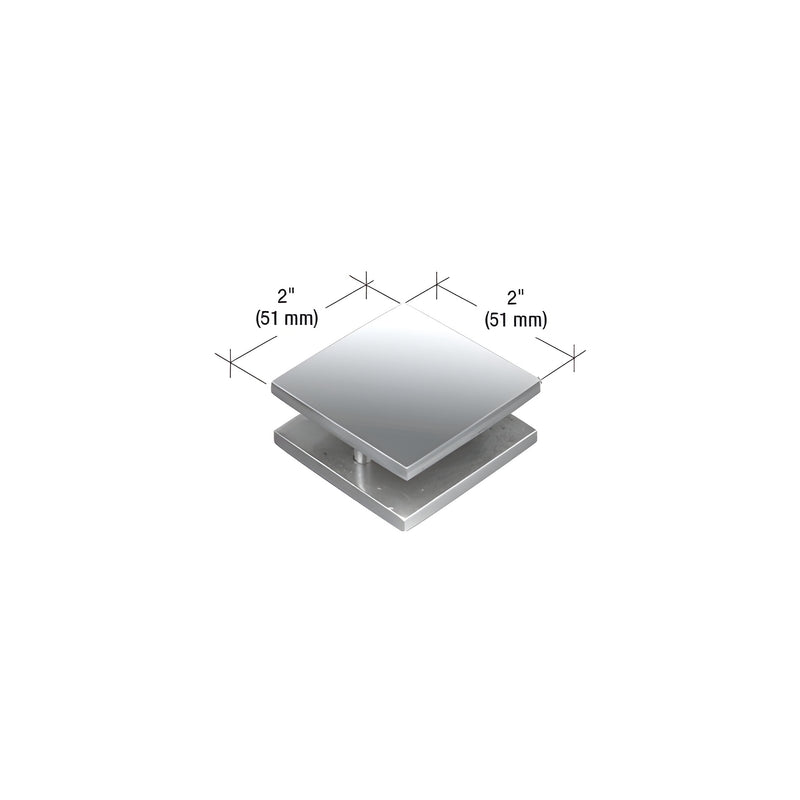

This CRL 2" x 2" (51 x 51 mm) 180 Degree Square Mall Front Clamp attaches with two flat head Phillips screws (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). They join vertical glass wall panels and provide rigidity to reduce flexing when pressure is applied. They can also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.
P612** replacement screws
These CRL Mall Front Clamps come in polished brass, polished stainless, or brushed stainless finishes, and are designed for 1/2" (12 mm) thick glass. To use on 3/8" (10 mm) glass simply file the threaded shank to the desired size. Suggested minimum gap for this clamp is 7/32" (5.6 mm).
Product Warning:
Available in Brushed or Polished 304 Stainless and 260 Brass
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
