CRL 24-1/2" Polished SS Glass Door Ladder Pull w/ Acrylic Inserts
CRL 24-1/2" Polished SS Glass Door Ladder Pull w/ Acrylic Inserts
Regular price
$685.31 CAD
Regular price
Sale price
$685.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CA18X18PS
Shipping Weight: 3.215 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.215 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
24-1/2 in. (622 mm)
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For use with 3/8" and 1/2" (10 and 12 mm) glass
- 1" (25 mm) diameter stainless steel tube with Polished Brass PVD coating and acrylic semi-insert (white accent lines)

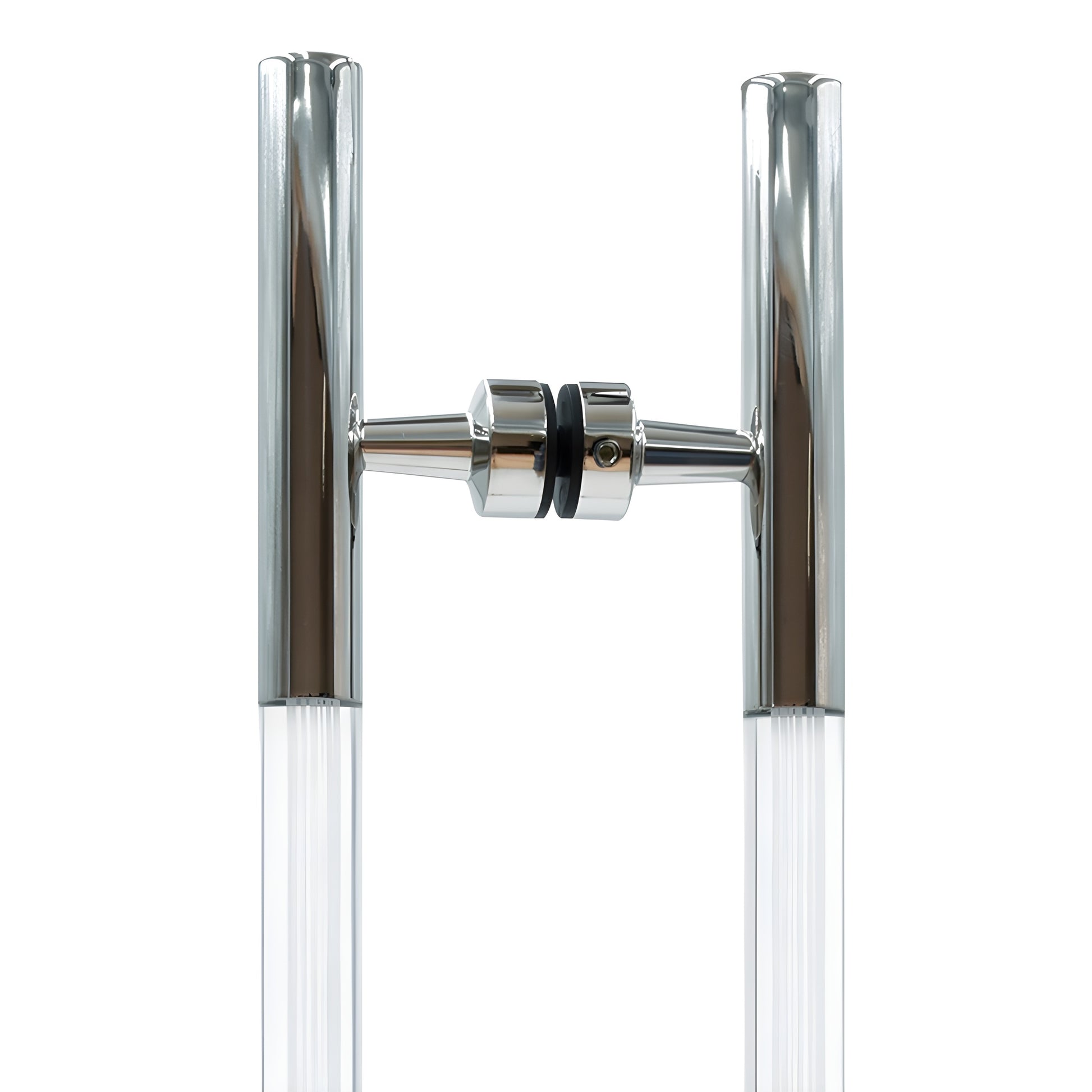

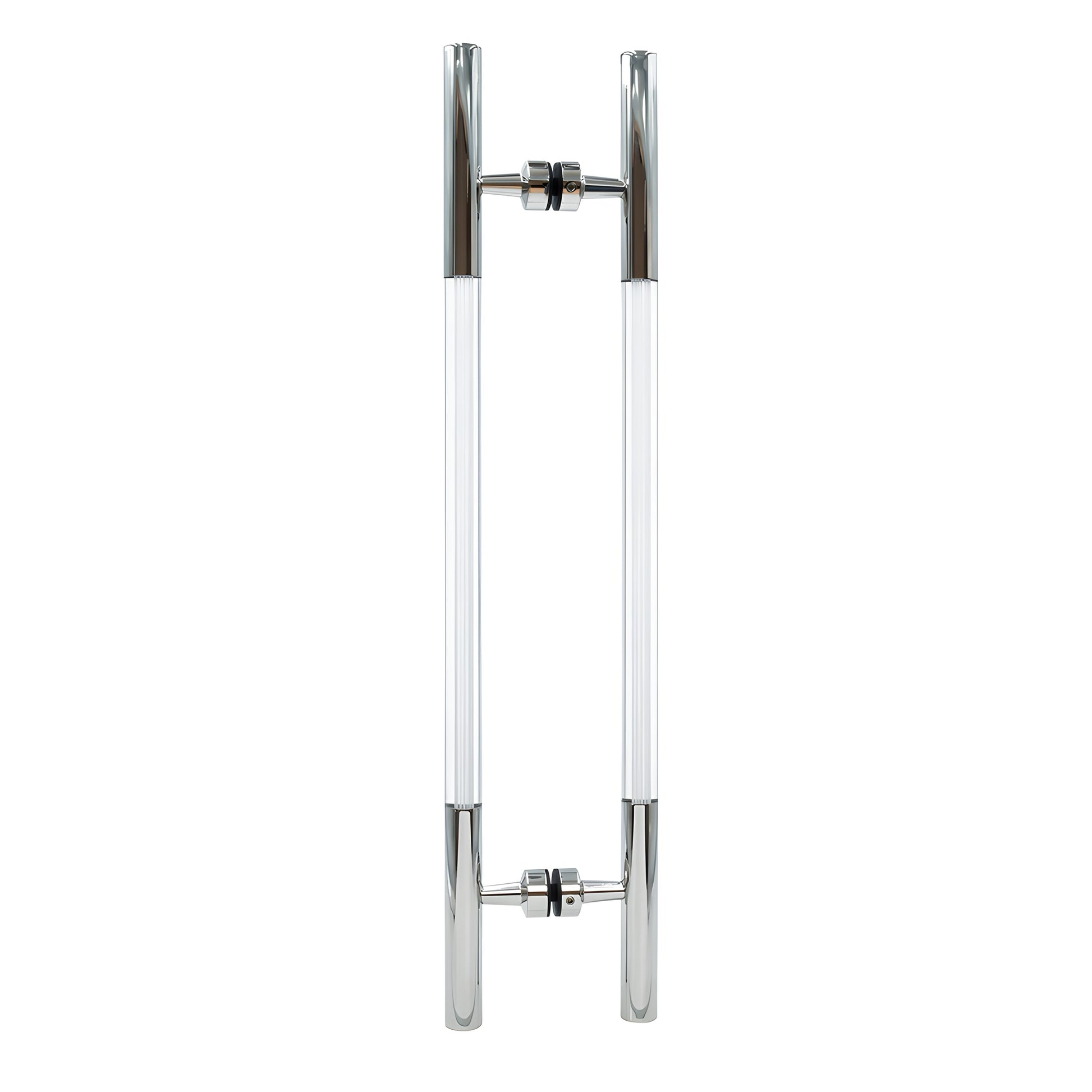

This CRL Glass-Mounted Ladder-Style Pull Handle with Acrylic Semi-Inserts (SKU: CA18X18PS) is designed for glass doors and storefronts where a durable, decorative ladder-style pull is required.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing with acrylic semi-insert (white accent lines)

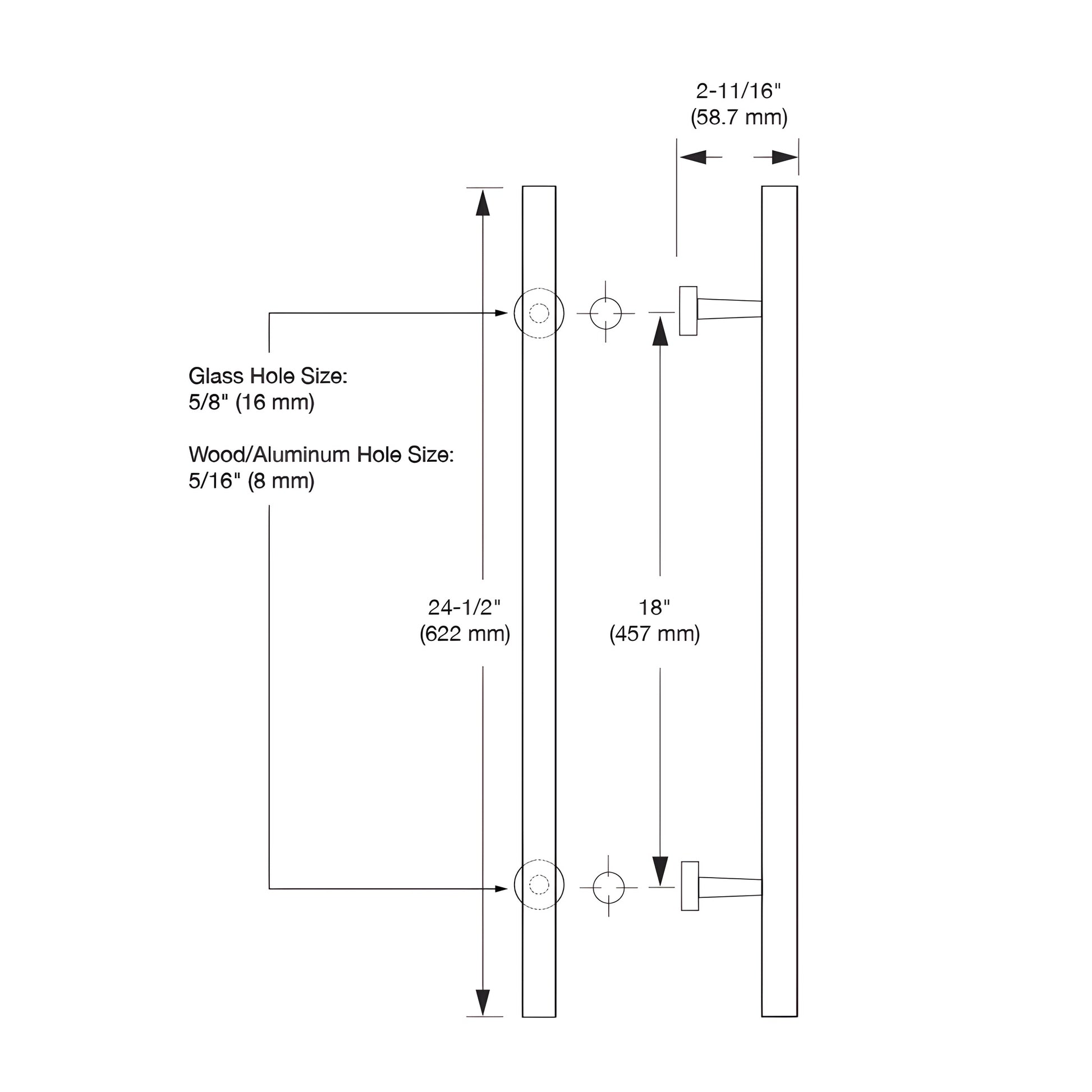

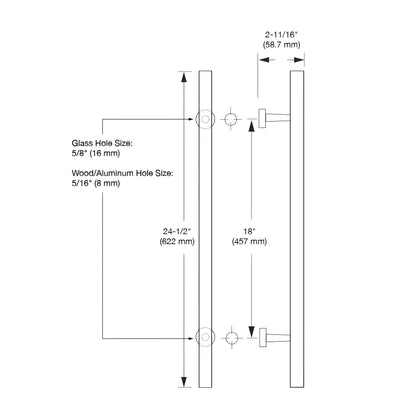

Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching-finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the CA18X18PS ladder-style glass pull handle for commercial glass doors and storefront entrances — add to cart or contact us for volume pricing.
