CRL Stainless 3/8" Glass Door Rail w/ Lock - Custom Length

• Custom length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Low profile rails only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

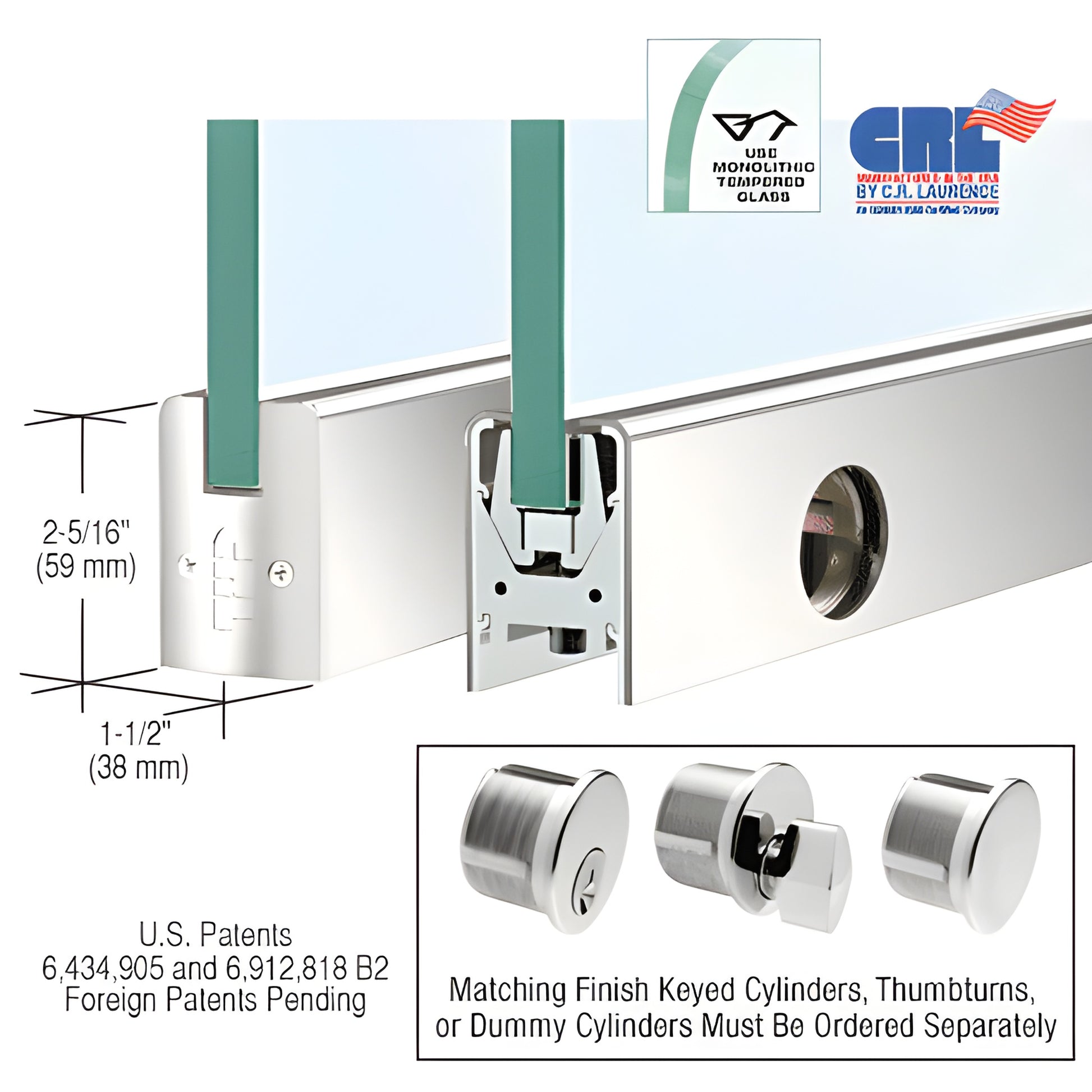

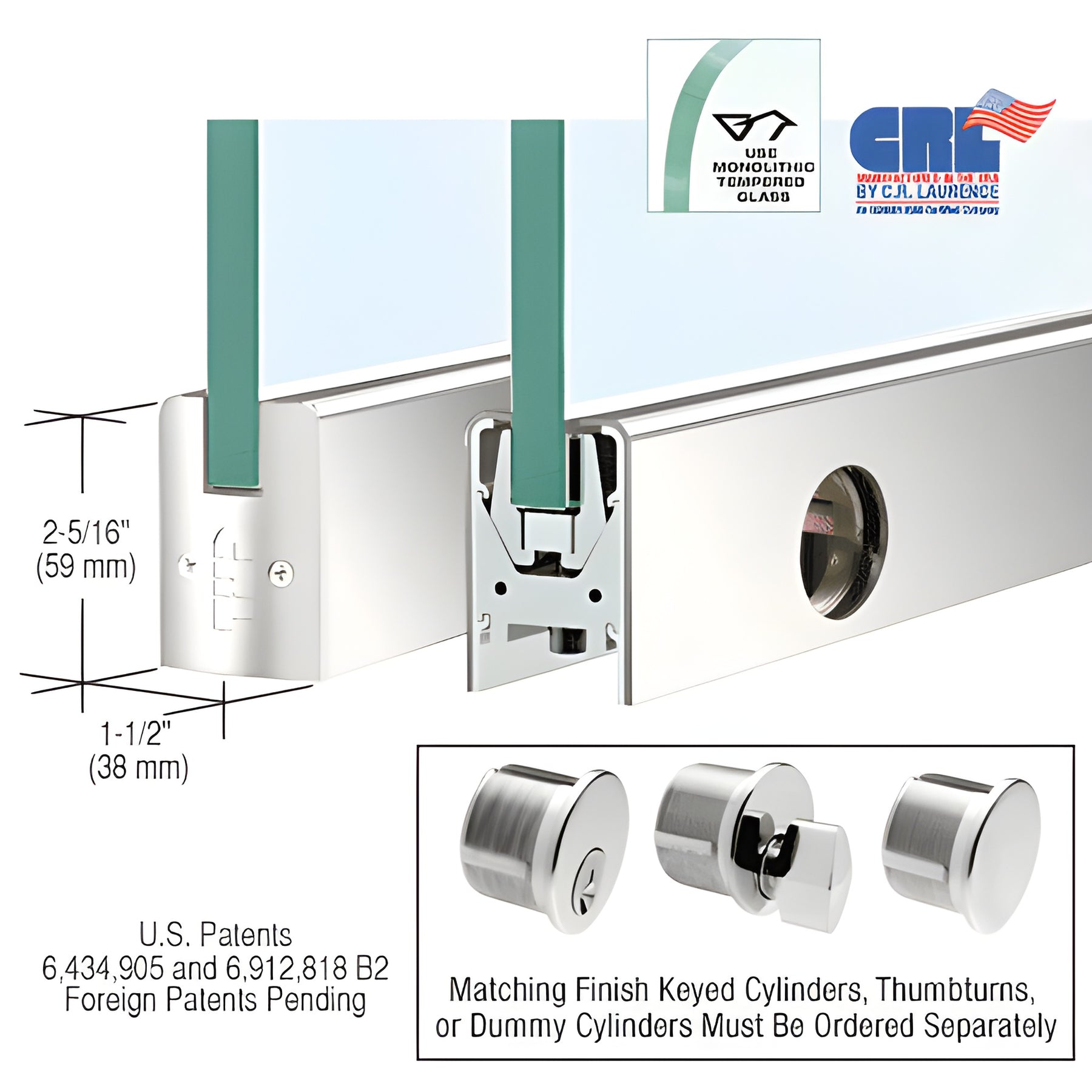

CRL Low Profile Door Rail (SKU: DR2SPS38CL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® glass securing system. Rails come complete with end caps, installation instructions, and adjustment wrenches for fast, reliable installation of frameless glass doors.

Key differentiators:

• Fast installation for 3/8" (10 mm) tempered glass — experienced installers can prepare a door in under ten minutes
• Rigid single-component housing resists shift and long-term misalignment (not made of two halves)
• Glass securing pads engineered for longevity in extreme environments
• Adjustable Door Alignment System standard on top and bottom rails allows ±1/8" (3 mm) adjustment without removing the door
• Low-profile slide allows pivot placement other than the American Standard setback (accommodates vertically out-of-square openings)

Rails arrive fabricated and ready-to-install. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the outer bolts adjust the slide ±1/8" (3 mm).

Models also available to accept 3/8" to 3/4" (10–19 mm) glass. All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

Finishes, templates & hardware: Standard finishes available; custom finishes and widths quoted upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots ordered separately
• Models with locks supplied with lock mechanism installed; matching finish keyed cylinders or thumbturns ordered separately
• End caps are included; specify door rail length (including end caps) when ordering custom lengths
• Prepped to receive Low Profile Door Rail Pivot Inserts (
