CRL 3/8" Stainless Tapered Glass Door Rail with Lock - Custom Length

• Custom Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes — custom finishes available
• Available without locks
• Matching sidelite rails available

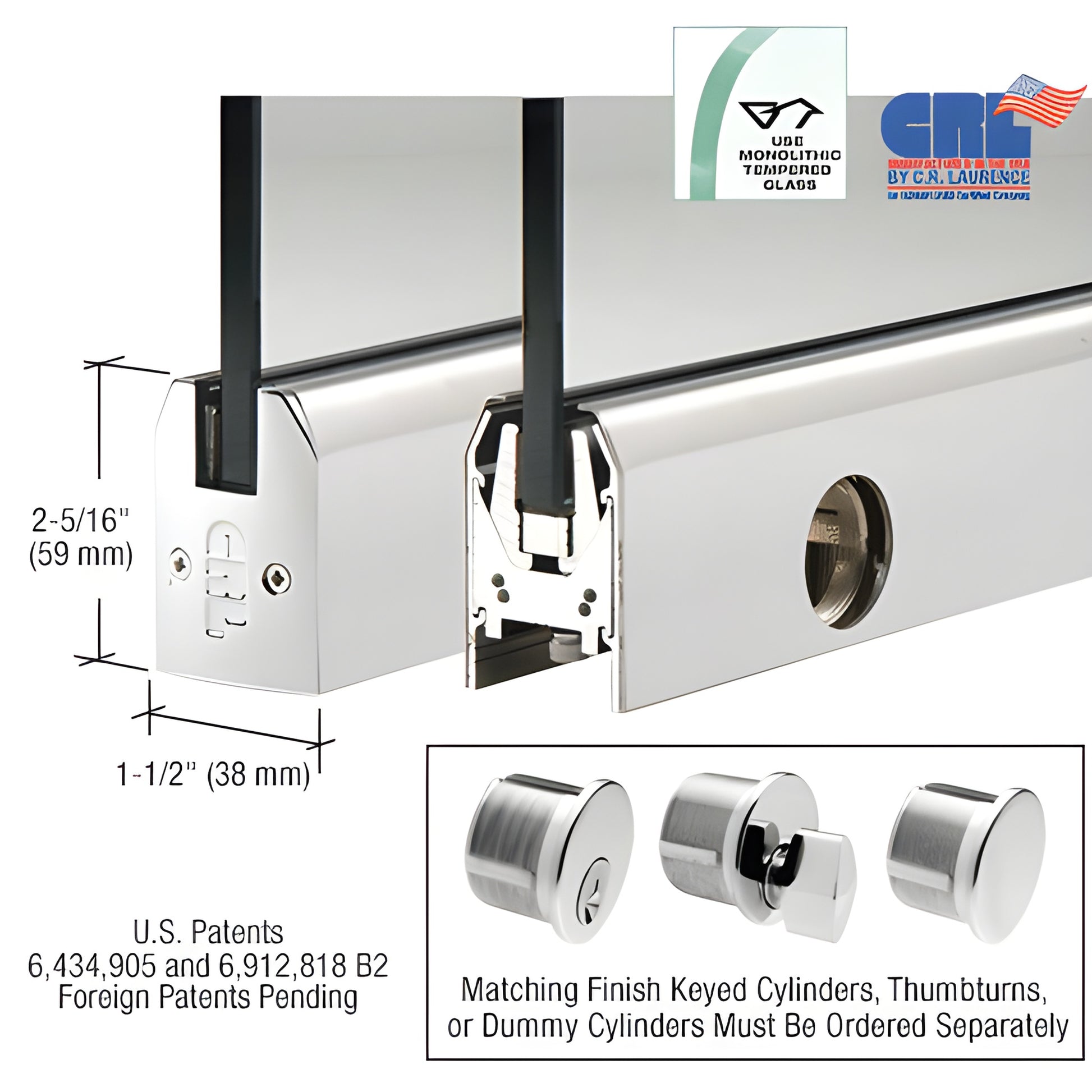

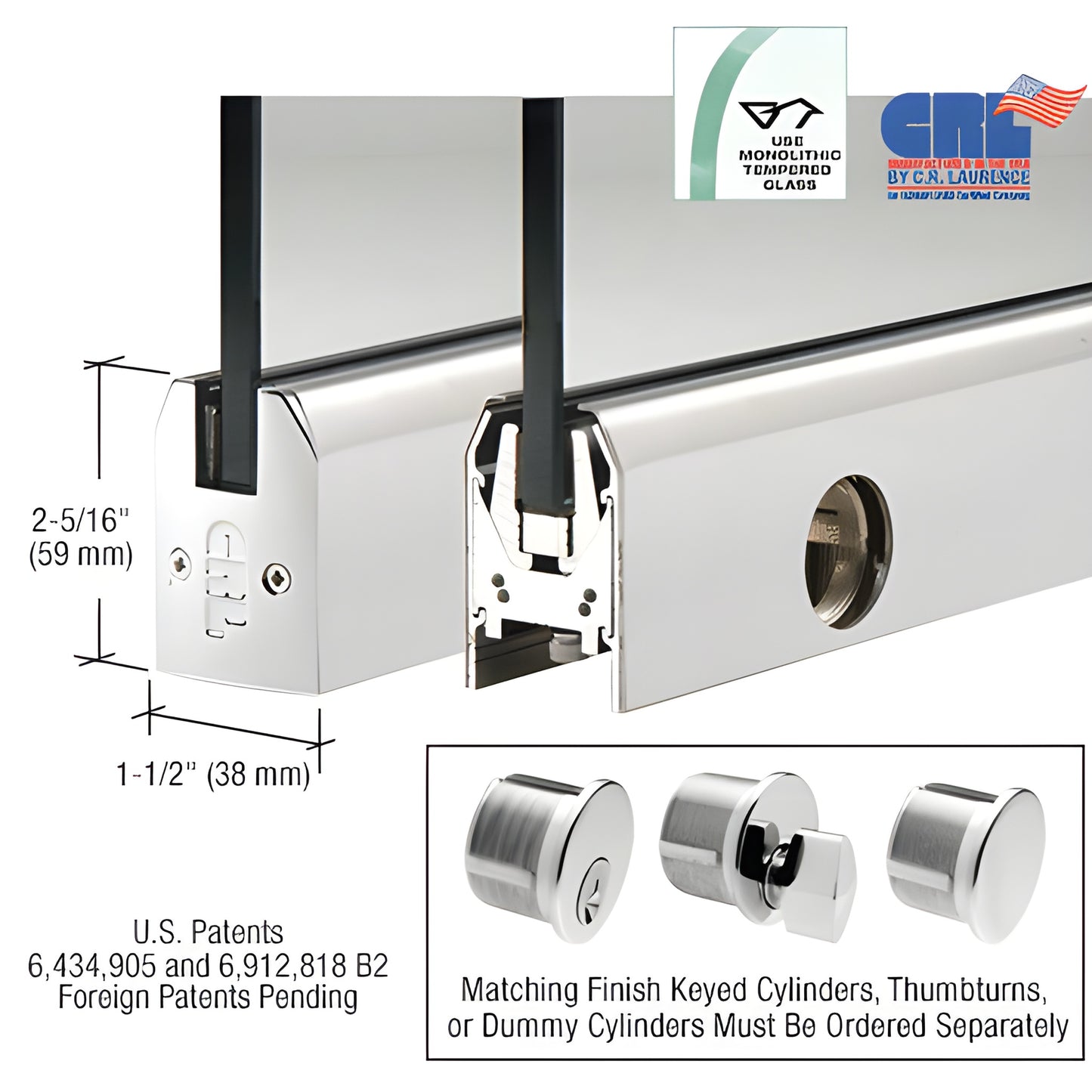

CRL Low Profile Door Rail (SKU: DR2TPS38CL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails arrive ready-to-install with End Caps, installation instructions, and adjustment wrenches.

Key benefits — low profile door rail for 3/8" glass

• Fastest installation time among door rail systems — experienced installers can prepare a door in under ten minutes
• Adjustable Door Alignment System (standard on top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door
• Ready-to-install with End Caps; only door arm or pivot (not included) must be attached to the adjustable slide
• Rigid, single-component housing prevents shift and loss of adjustment over time
• Internal components do not require removal before installation; glass securing pads designed for longevity in extreme environments
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass

How to adjust
Remove the End Cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the outer bolts move the slide ±1/8" (3 mm). The low-profile slide permits pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Notes and compatibility

• All Wedge-Lock® Door Rails feature the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements
• Available in several standard finishes; custom finishes and widths quoted upon request
• Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail

Ordering information

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be
