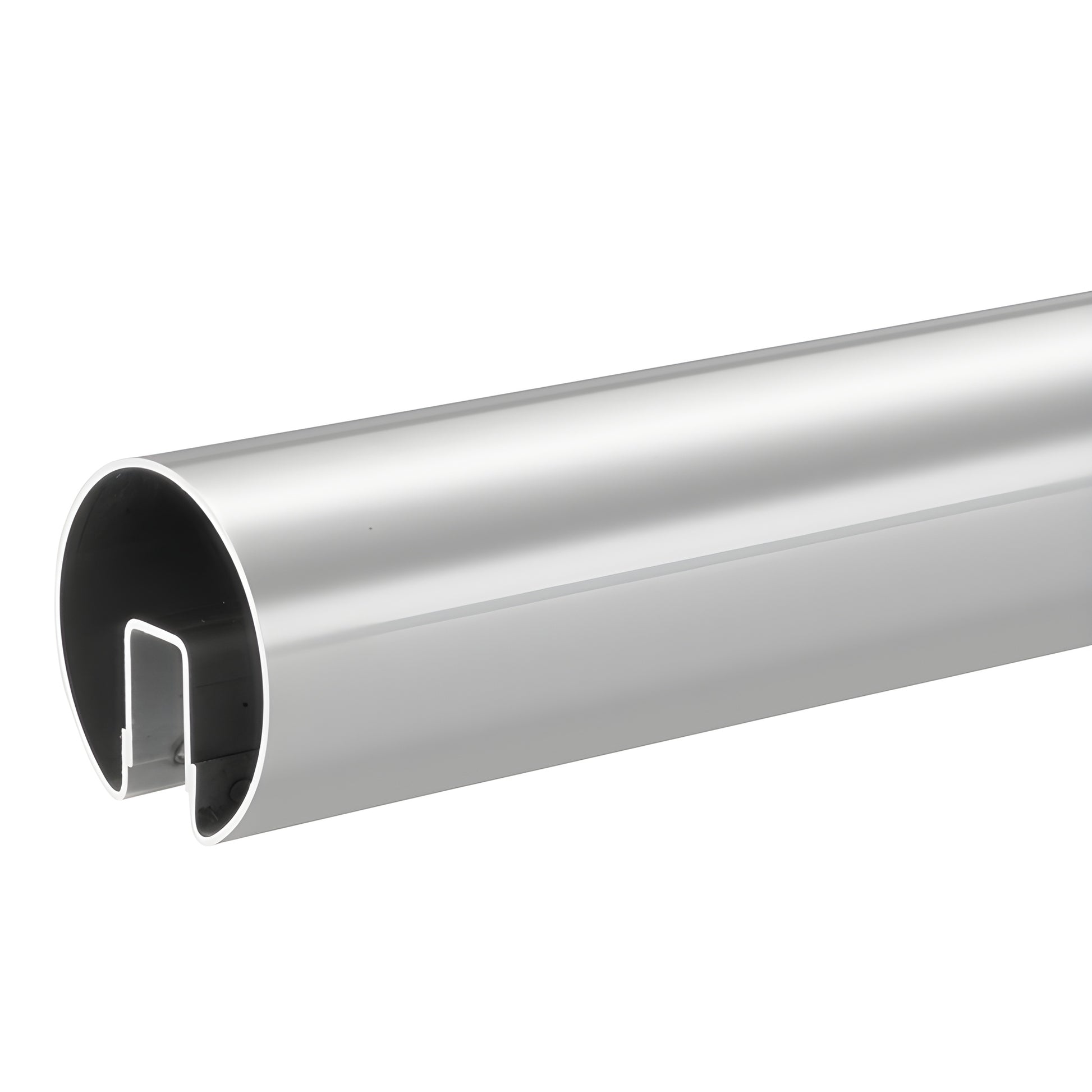

CRL 3" Polished Stainless Premium Cap Rail for 1/2" Glass - 120"

• Available bump-formed and welded stock lengths: 120" (3.05 m) and 168" (4.27 m)
• Seven diameters: 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four architectural finishes for interior and exterior guardrail and cap rail applications
• Connects to a variety of fabricated corners and end caps; cut-to-size or custom fabricated lengths available
• Stainless: Alloy 304 standard; Alloy 316 available in two sizes
• Brass: Alloy 260 standard
• Use sleeve No. GR30CSS (SKU: GR30PS)

All CRL Premium Cap Railings are formed with precision tooling that maintains uniform diameters for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded every 3" (76.2 mm) to increase strength and stability during fabrication. Use of our 32629 Metal Contact Cement is required to achieve a secure, permanent bond at all connections.

Use the Connector Sleeves to join cap rails. NOTE: When used with 3/4" (19 mm) glass, secure with GR7PV Cap Rail Vinyl and 95CBL Silicone. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only.

Stainless Steel Advisory:

CRL Cap Rail SKU GR30PS is ideal for architectural glass guardrail and handrail projects requiring precision-formed, welded cap rails. Contact CRL to order cut-to-size lengths or custom fabrications.
