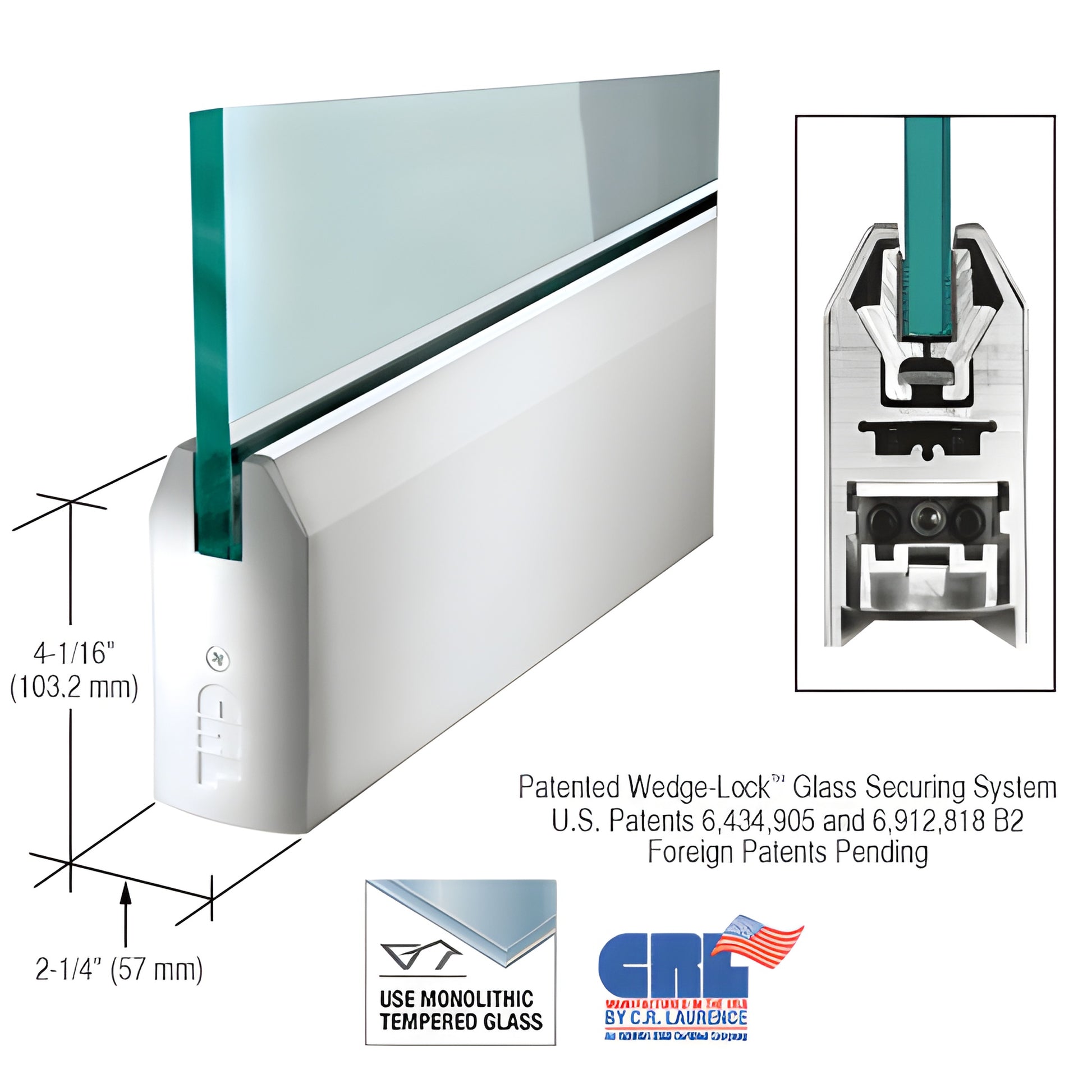

CRL Polished Stainless 35-3/4" 4" Tapered Glass Door Rail for 3/4" Glass (No Lock)

• 35-3/4" (908 mm) length for 3/4" (19 mm) monolithic tempered glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® glass securing system (high retention strength)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4TPS34S

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Unlike split-housing rails, this rigid single-component rail applies pressure from the bottom via two glass-retaining aluminum extrusions and a flat stainless steel bar, producing exceptional clamping force (over 900 lbs. in the 9" corner rail and proportionally greater across the full 35-3/4" rail). This design yields superior glass retention, long-term stability, and durability for commercial glass doors.

NOTE: Actual product height: 4-1/16" (103 mm).

Key differentiators:

• Fast installation: experienced installers can prepare a door in under 10 minutes—internal components remain in place for quicker field work
• Adjustable door alignment: built-in adjustable slide on both top and bottom rails allows +/-1/8" (3.2 mm) adjustment without removing the door
• No two-piece shift: single-component housing resists drift and stay-in-adjustment performance over time
• Durable glass securing pads designed for extreme environments
• Available with pre-installed locks; keyed cylinders or thumbturns ordered separately
• Includes End Caps on stock lengths; custom lengths require specified total rail length (including End Caps)

Installation details: Rails ship completely fabricated and ready-to-install with End Caps installed. After rail installation, attach pivot or door arm (not included) to the adjustable door alignment slide already assembled in the rail. To fine-tune alignment after hanging, remove the End Cap to access three socket head cap bolts (center bolt secures slide; outer bolts adjust +/-1/8" (3.2 mm)). The low-profile slide allows pivot placement off the American Standard setback when required for out-of-square openings.

Ordering information:

• All door rails include the standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots sold separately
• Models with locks come with the lock mechanism installed; matching finish keyed cylinders or thumbturns sold separately
• Rail specifications, templates and hardware packages available from CRL Technical Sales via e-mail
