CRL Polished Stainless 4" Tapered Sidelite Rail for 3/4" Glass
CRL Polished Stainless 4" Tapered Sidelite Rail for 3/4" Glass
Regular price
$1,292.06 CAD
Regular price
Sale price
$1,292.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4TPS34SL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Floor Mount Saddle Included FMS | 3SA |
| Glazing Thickness | 3/4 in. (19 mm) |
| Height 4-1/16 in. | (103 mm) |
| Width 2 in. | (51 mm) |
Overview

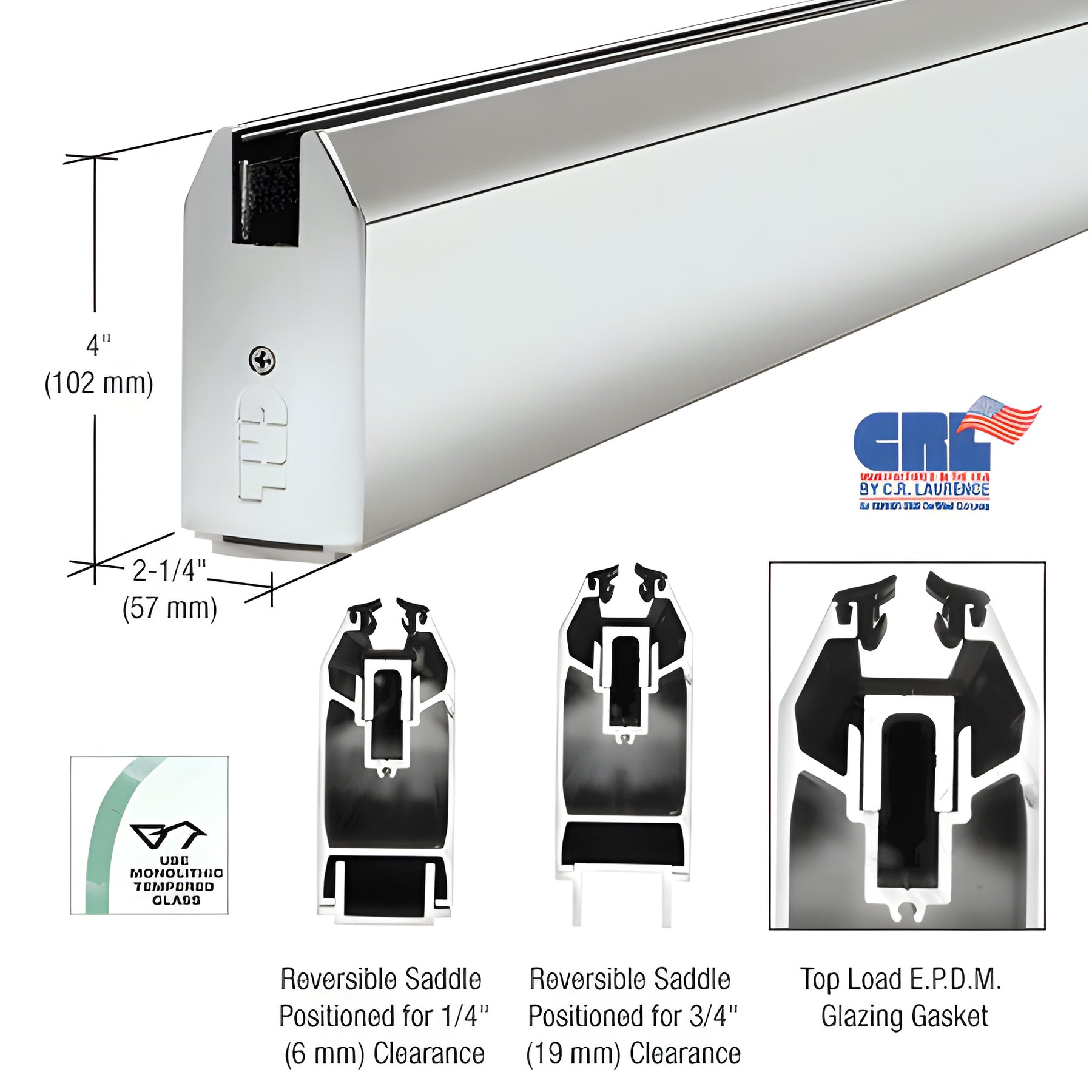

The CRL 4" (102 mm) Tapered Sidelite Rail is an ideal choice for office and storefront applications, offering a secure fit for fixed glass panels.
Designed to match our Door Rails, these Sidelite Rails ensure an even sightline and can be used with top and bottom configurations or smaller U-Channels.
Installation is straightforward with the 'lift and drop' method using our Aluminum and Neoprene Setting Blocks, while the EPDM Roll-in Glazing Gasket provides a clean finish without silicone sealant.
Available in several finishes and lengths, including 120" (3.05 m) and 240" (6.10 m), these rails fit perfectly with floor-mounted and 1/2" (13 mm) threshold doors using our Reversible Saddle.
For optimal results, use with our Aluminum Neoprene Setting Blocks and Roll-In EPDM Gaskets, with matching finish End Caps to complete your installation.
Custom lengths and finishes are also available, ensuring a perfect fit for any project.
Designed to match our Door Rails, these Sidelite Rails ensure an even sightline and can be used with top and bottom configurations or smaller U-Channels.
Installation is straightforward with the 'lift and drop' method using our Aluminum and Neoprene Setting Blocks, while the EPDM Roll-in Glazing Gasket provides a clean finish without silicone sealant.
Available in several finishes and lengths, including 120" (3.05 m) and 240" (6.10 m), these rails fit perfectly with floor-mounted and 1/2" (13 mm) threshold doors using our Reversible Saddle.
For optimal results, use with our Aluminum Neoprene Setting Blocks and Roll-In EPDM Gaskets, with matching finish End Caps to complete your installation.
Custom lengths and finishes are also available, ensuring a perfect fit for any project.
