- Available in 4" or 4-1/2" Widths for 3/8" or 1/2" Glass
- Available in One or Two Pocket and as a Single or Double Sided Header
- Available in Many Finishes

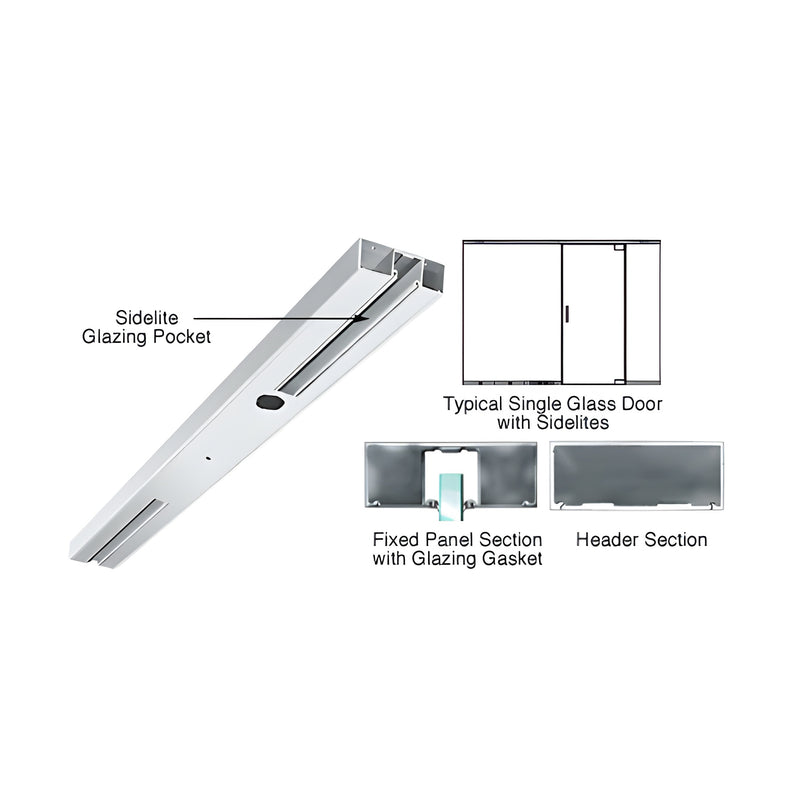

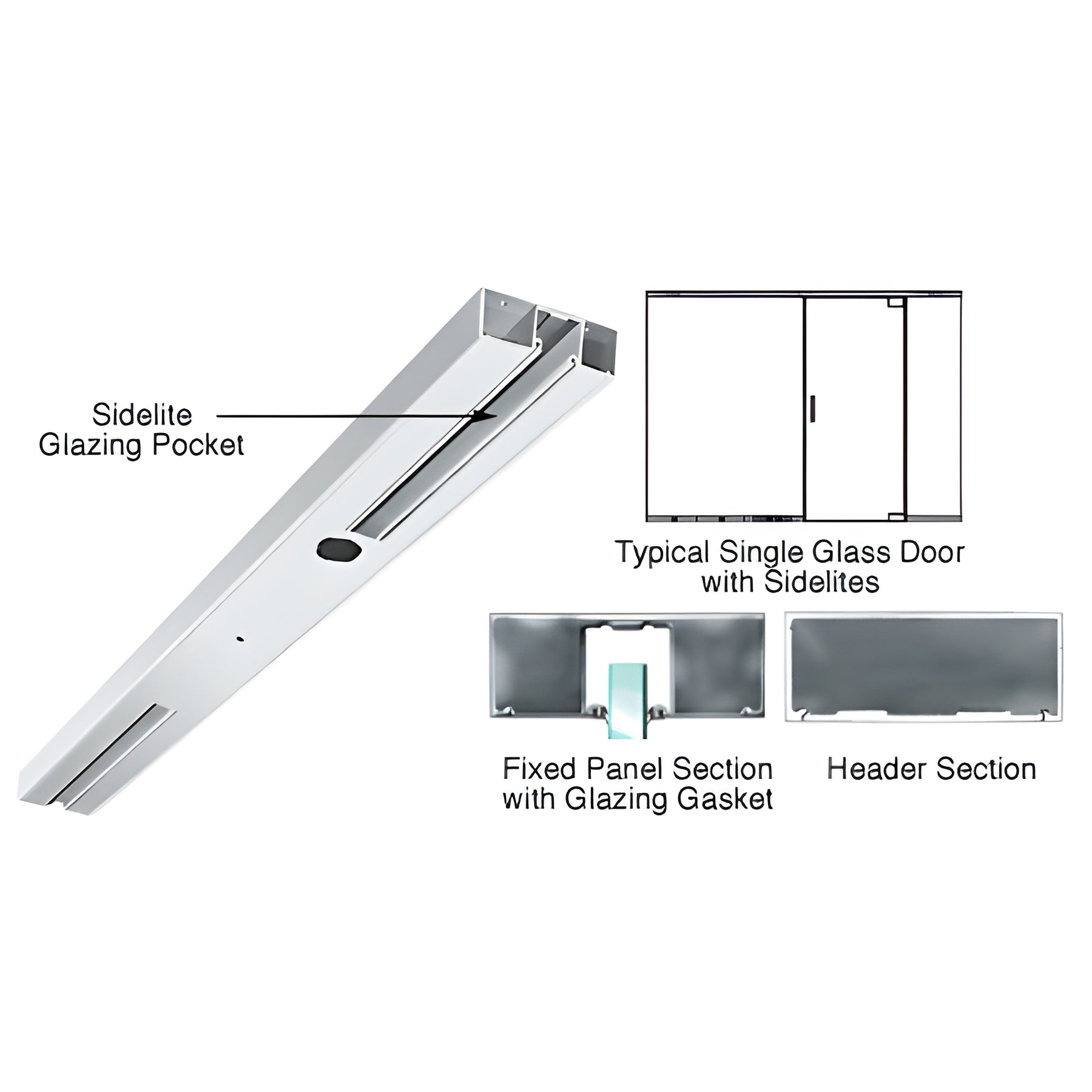

Many times installations dictate the need for a door, or pair of doors, with sidelites on either side. In the past if you used a Header on top for your Overhead Door Closers, you had to adapt a different extrusion next to your Header to secure the top of the sidelites. CRL has developed a snap-in insert with a glazing pocket that snaps in on either side of the doors. This allows you to use one continuous Header with the center fabricated for the doors, and the sides fabricated for fixed sidelites. Glass is secured in the extrusion with the provided Top Load Roll-in Gasket. To secure the bottom of the fixed sidelites, use our UC38 Series U-Channel available in five finishes: Clear Anodized, Duranodic Bronze, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass. Contact CRL Technical Sales Department.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
