CRL 4 in x 10 in Polished Stainless Door Center Lock Deadlatch LH/RHR
CRL 4 in x 10 in Polished Stainless Door Center Lock Deadlatch LH/RHR
Regular price
$1,109.62 CAD
Regular price
Sale price
$1,109.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL410LPS
Shipping Weight: 4.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Handing
Left Hand
Height
10 in. (254 mm)
Width
4 in. (102 mm)
Overview
- For use with 1/2" (12 mm) monolithic tempered glass doors
- Installs easily with bolts — no silicone or cement required
- Available in five stock finishes
- Custom sizes for other glass thicknesses and custom finishes available by special order

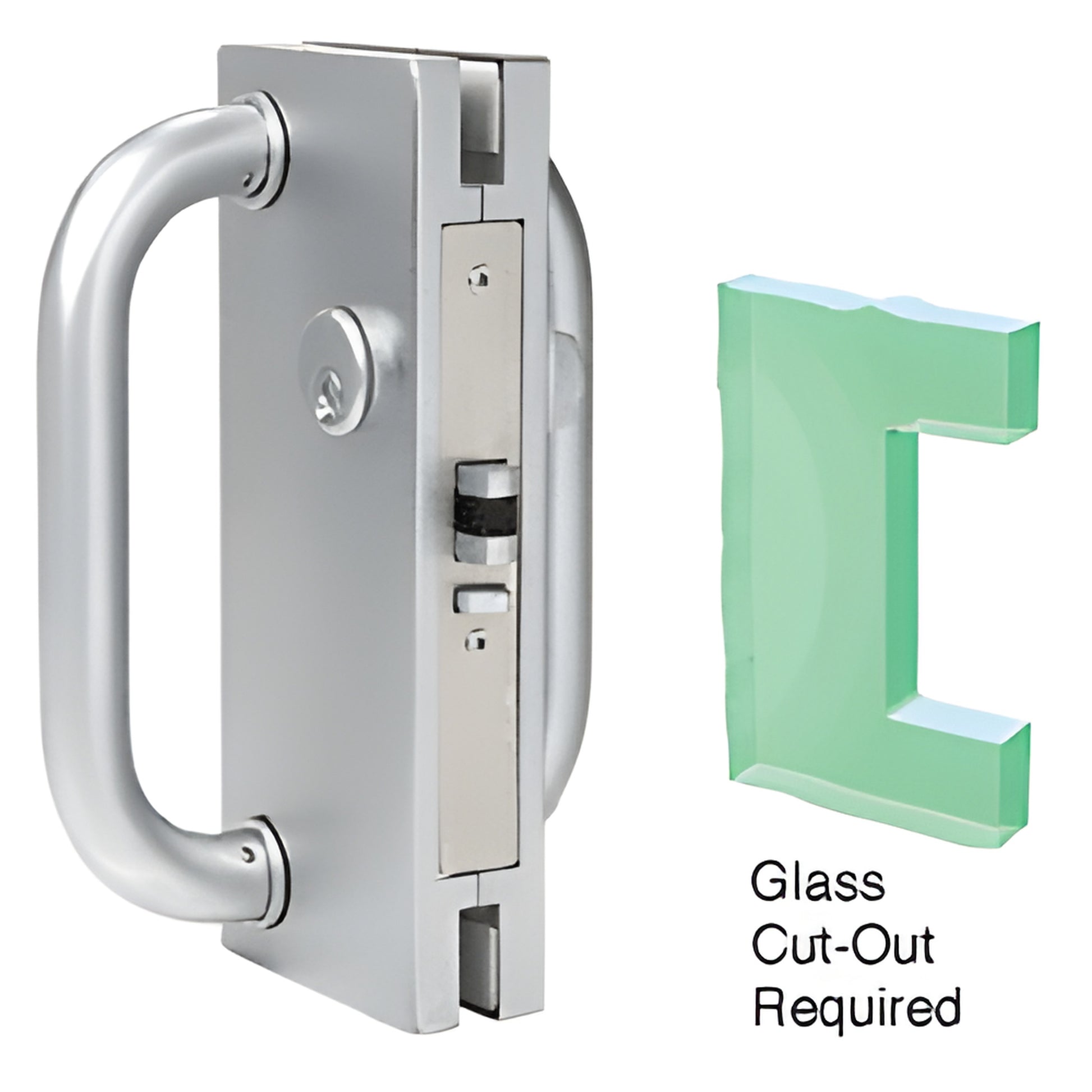

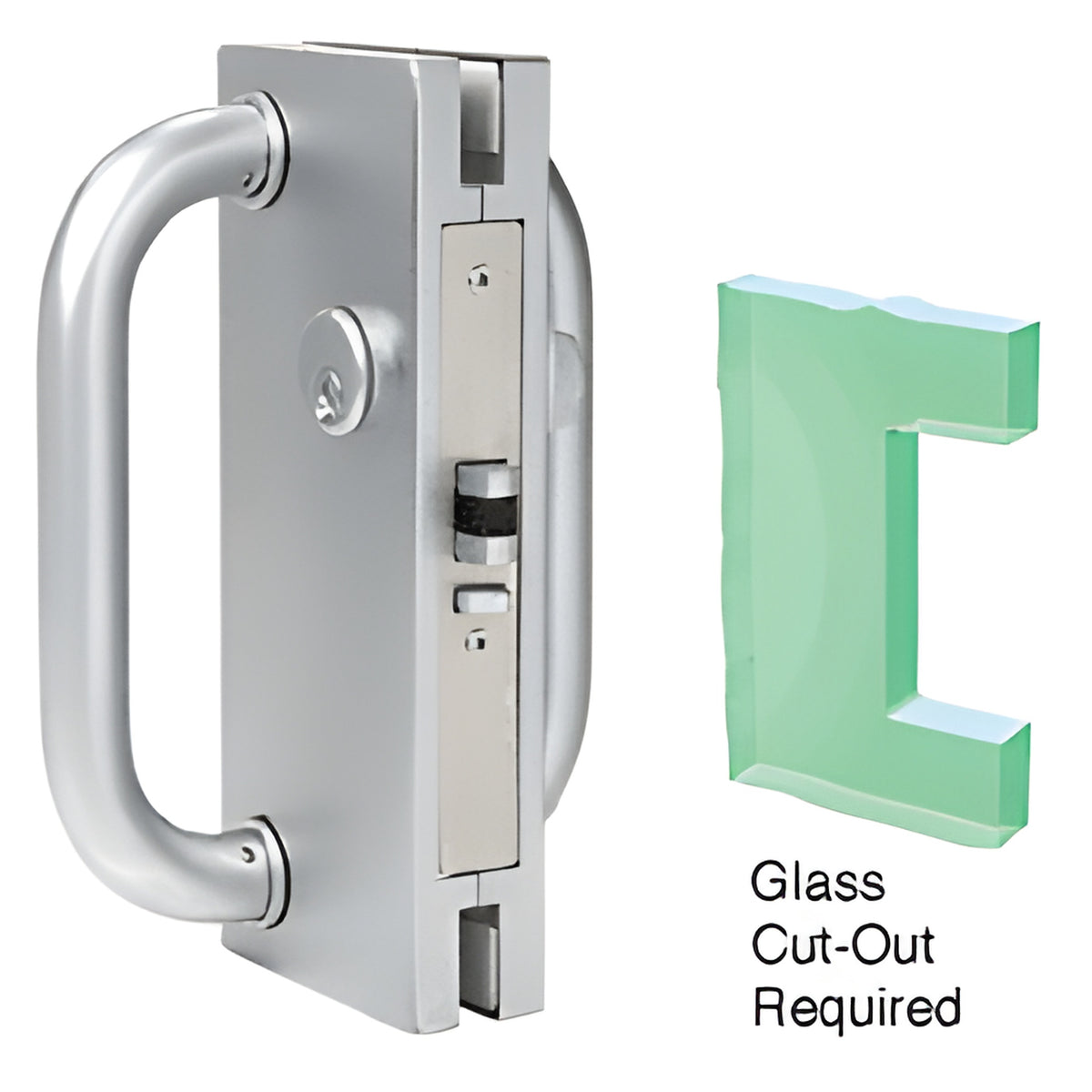

CRL 4" x 10" Center Locks with Deadlatch (SKU: DL410LPS) come with a deadlatch that can be dogged in the open position, an 8" (203 mm) back-to-back D-handle, a thumbturn on the inside, and a keyed cylinder on the outside. The dogging feature is engaged by pushing both deadlatch bolts fully into the open position, then turning either the keyed cylinder or thumbturn until the dogging clips snap in place. This glass door center lock is ideal for 1/2" tempered glass commercial and residential glass doors where a secure, low-profile 4" x 10" center lock with deadlatch is required.
Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. Custom locks with different accessories are available on special order.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Order DL410LPS or contact CRL Customer Service for pricing, lead times, and custom options.
