CRL Polished Stainless 4x10 LHR Custom Glass Center Lock Deadlatch
CRL Polished Stainless 4x10 LHR Custom Glass Center Lock Deadlatch
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DLL411PSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Handing
Right Hand
Height
10 in. (254 mm)
Width
4 in. (102 mm)
Overview
- Installs easily with bolts — no messy silicone or cement required
- Accepts 1/2" (12 mm) heavy glass doors

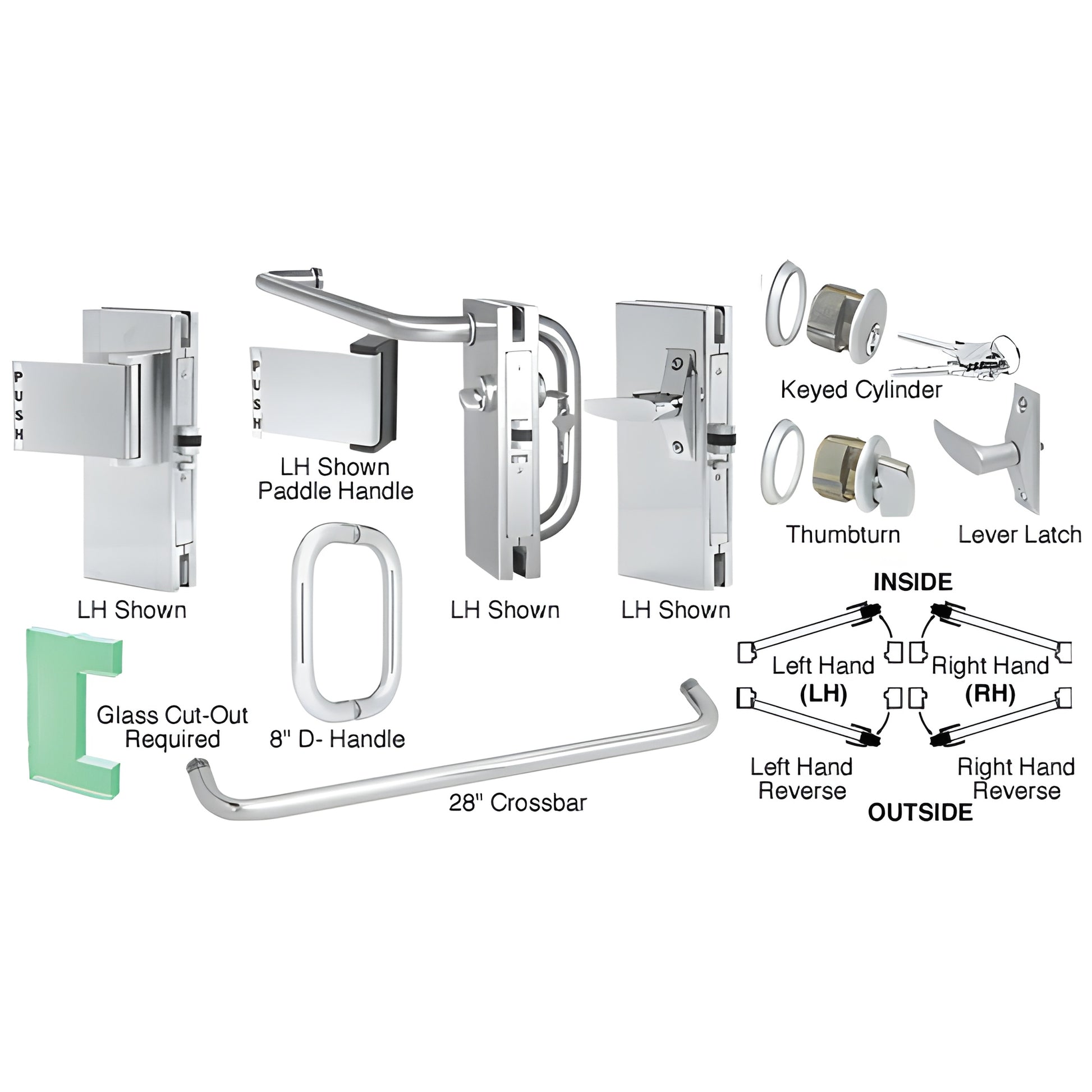

This CRL 4" x 10" Custom Center Lock with Deadlatch (SKU DLL411PSC) is a versatile, heavy-glass center lock designed for 1/2" glass doors. Choose from multiple actuating mechanisms (Keyed Cylinder or Thumbturn), plus a selection of handles and crossbars (see image for options).
Key features and differentiators:
- Dogging feature: engage by pushing both deadlatch bolts fully open, then turn the Keyed Cylinder or Thumbturn to snap in the dogging clips for hold-open functionality
- Available in four finishes to match frameless glass door hardware
- Designed for 1/2" (12 mm) heavy glass — engineered specifically for glass door applications
- Bolt-mounted installation for a clean, durable fit without silicone or cement
Strike plates or glass keepers are sold separately (see Alternate Items). For ordering details, download the Easy Ordering Menu (PDF). For technical questions, contact CRL Technical Sales.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order SKU DLL411PSC or contact CRL Technical Sales to specify options and place your custom center lock order.
