CRL 48" Polished Stainless Steel Ladder-Style Single-Sided Door Pull
CRL 48" Polished Stainless Steel Ladder-Style Single-Sided Door Pull
Regular price
$351.74 CAD
Regular price
Sale price
$351.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 48LPSPS
Shipping Weight: 6.834 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.834 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
36 in. (914 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Single Sided
Overall Length
48 in. (1219 mm)
Overview
- Five sizes: 24" to 48" overall height (610 mm to 1.22 m)
- Finishes: Brushed Stainless, Polished Stainless, Matte Black
- Custom lengths, designs and finishes available on special order — Custom Pull Order Forms

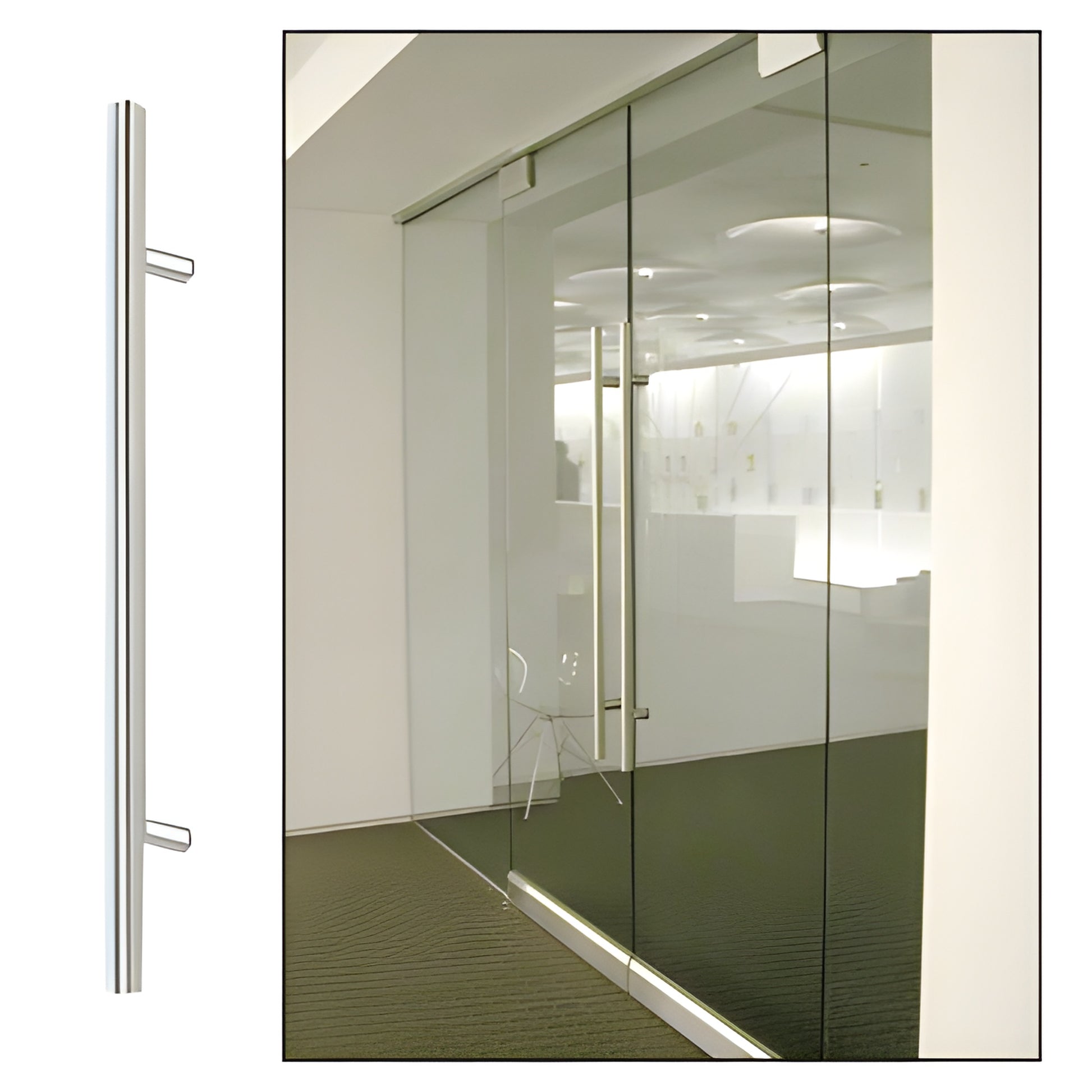

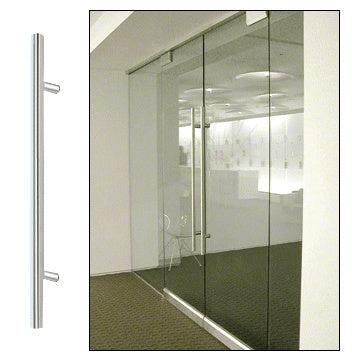

CRL Straight Style Ladder Pulls (SKU: 48LPSPS) include two mid-posts and fasteners for mounting back-to-back on 3/8"–3/4" (10–19 mm) tempered glass, making them ideal as ladder door pulls for tempered glass doors and storefront glass entrances. Fasteners for 1-3/4" (44 mm) wood or aluminum doors are sold separately. Custom ladder pulls can include additional mid-posts for extra support; maximum mid-post spacing is 72" (1.83 m).
Specifications
- Glass: 3/8"–3/4" (10–19 mm) thick tempered glass
- Doors: 1-3/4" (44 mm) thick aluminum or wood doors
Construction
- 1-1/4" (32 mm) diameter 304 grade stainless steel tubing
Glass Fabrication
- Requires two 5/8" (16 mm) diameter holes
Why choose these ladder door pulls? Durable 304 stainless construction, available in multiple finishes, and configurable for custom commercial glass door and storefront projects. Suitable for high-traffic entrances where a clean, modern ladder-style pull is required.
NOTE: View all back-to-back ladder pulls in available sizes and finishes.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Ready to specify? Contact CRL or order custom ladder pulls with SKU 48LPSPS for tempered glass door projects.
