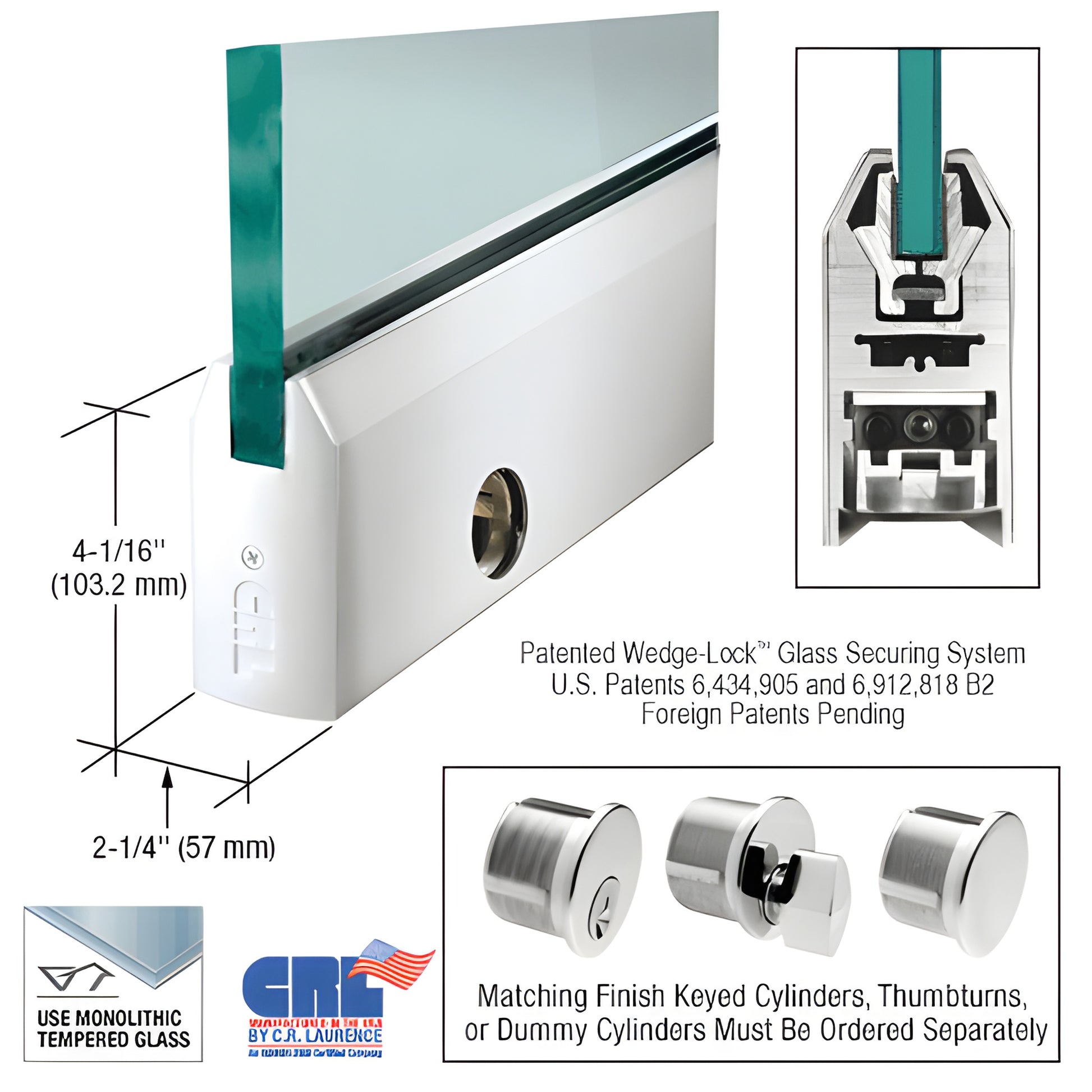

CRL Polished Stainless 4" Tapered Rail 5/8" Glass w/ Lock - Custom

• Custom Length for 5/8" Glass (16 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). This wedge-action design secures monolithic tempered glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is drawn down with socket head cap bolts, angled extrusions engage the door rail wedge, compressing the specially designed door retaining gasket to generate very high clamping force (over 900 lbs. in the 9" Corner Rail).

The Wedge-Lock® system is engineered for faster installation and long-term reliability. Door rails ship fully fabricated and ready-to-install with end caps installed. Installers can prepare a door for hanging in minutes; just attach your chosen door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

• Adjustable Door Alignment System — Standard on top and bottom rails; field-adjustable 1/8" (3.2 mm) toward or away from the jamb without removing the door.
• Low-Profile Adjustable Slide — Allows pivot placement other than the American Standard Setback of 2-3/4" (69.8 mm) to accommodate out-of-square openings.
• Durable Construction — Single-component rigid housing that resists shifting and maintains alignment; internal components remain in place for quick install.
• Longevity — Glass retaining pads designed for extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms, pivots, keyed cylinders, and thumbturns must be ordered separately to meet job requirements.

Ordering Information:

• All door rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots sold separately.
• Models with locks ship with the lock mechanism installed; matching
