CRL Polished Stainless 6" Square Sidelite Rail for 3/4" Glass 120" Length
CRL Polished Stainless 6" Square Sidelite Rail for 3/4" Glass 120" Length
Regular price
$1,421.33 CAD
Regular price
Sale price
$1,421.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR6SPS34SL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

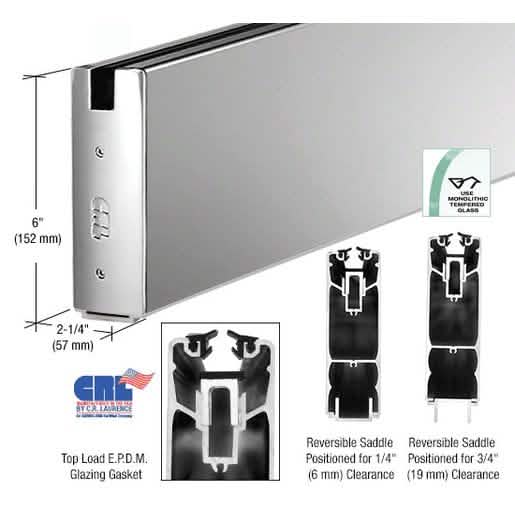

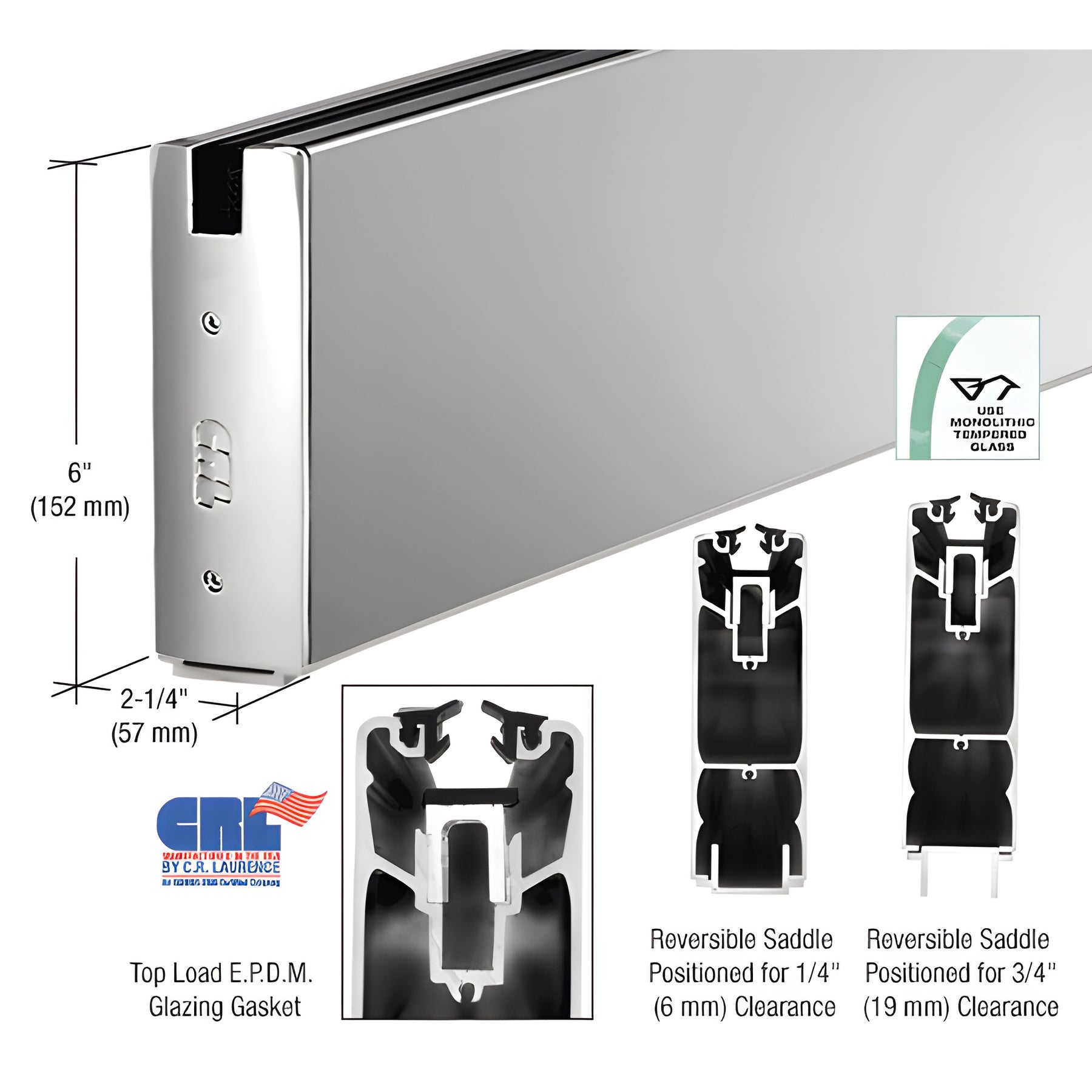

Description
Finish/Color | Polished Stainless Steel |
Floor Mount Saddle Included FMS | 3SA |
Glazing Thickness | 3/4 in. (19 mm) |
Height 6 in. | (152 mm) |
Width 2-1/8 in. | (54 mm) |
Overview
The CRL 6" (152 mm) Square Sidelite Rail is a top choice for office and storefront applications, providing secure installation of fixed glass panels.
This reversible extruded saddle matches either 1/4" or 3/4" door clearances and aligns perfectly with our Door Rails for an even sightline.
It comes ready-to-ship with vinyl for 3/4" glass, while vinyl for 5/8" glass can be ordered separately.
Available in 120" lengths, these rails ensure easy glass installation using the 'lift and drop' method and are finished with a Top Load EPDM Roll-in Glazing Gasket to avoid messy silicone applications.
This reversible extruded saddle matches either 1/4" or 3/4" door clearances and aligns perfectly with our Door Rails for an even sightline.
It comes ready-to-ship with vinyl for 3/4" glass, while vinyl for 5/8" glass can be ordered separately.
Available in 120" lengths, these rails ensure easy glass installation using the 'lift and drop' method and are finished with a Top Load EPDM Roll-in Glazing Gasket to avoid messy silicone applications.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
