CRL Stainless Steel 6x10 LH Center Push Button Lock with Housing
CRL Stainless Steel 6x10 LH Center Push Button Lock with Housing
Regular price
$6,198.23 CAD
Regular price
Sale price
$6,198.23 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL610LCPS
Shipping Weight: 17.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Handing
Left Hand
Height
10 in. (254 mm)
Width
6 in. (152 mm)
Overview
- Requires no electrical connections
- Complies with A.D.A. standards
- Five finishes available
- Use monolithic tempered glass

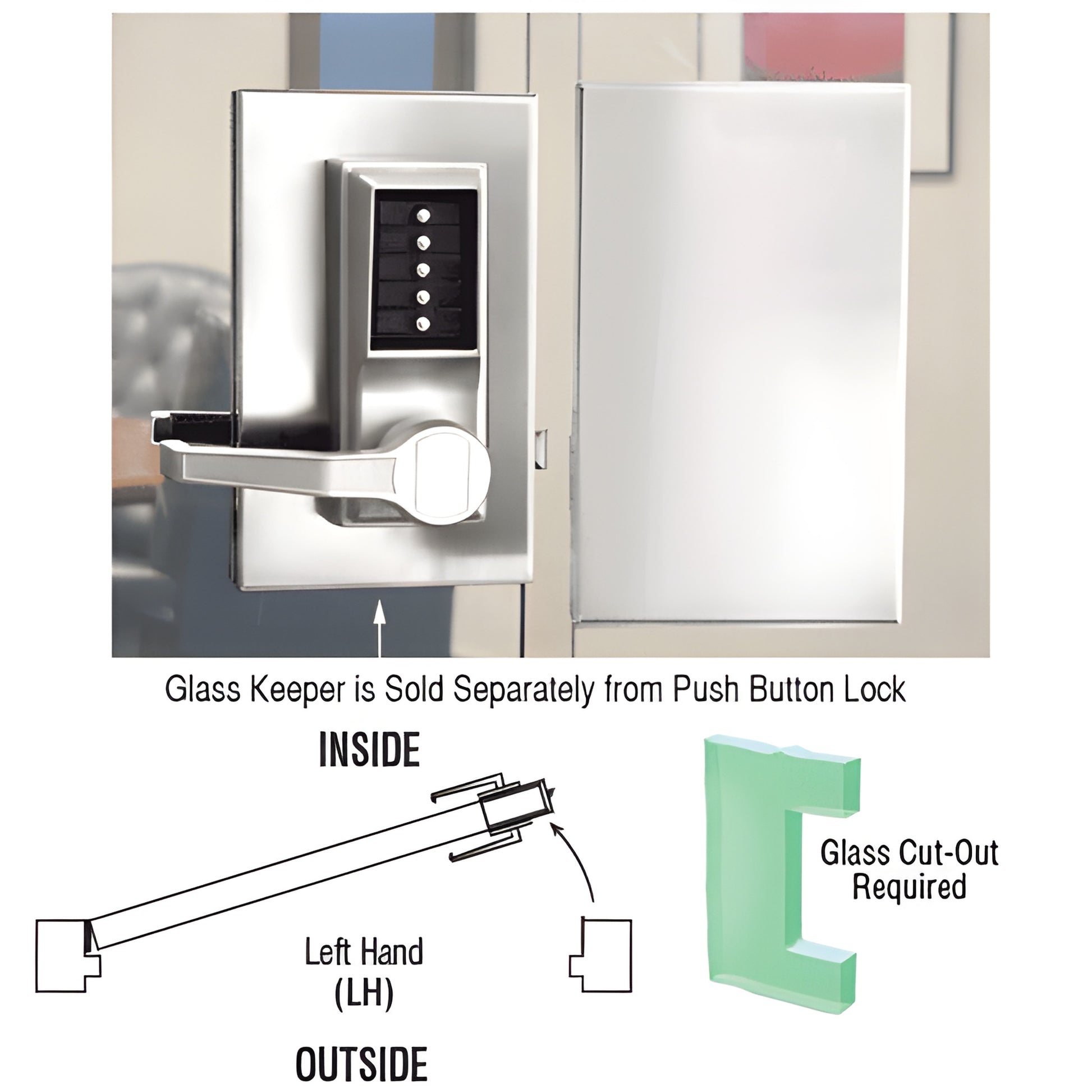

CRL Push Button Lock and Glass Keeper (SKU: DL610LCPS) assemblies require no electrical connections—mounting is the same as our other 6" x 10" (152 x 254 mm) center locks. Exterior side features a vertical keypad with five sequential push buttons; interior side has a lever that operates the latchbolt at all times. Ideal for high-frequency use in hospitals, commercial and industrial entrances, apartments, condominiums, and schools, this ADA-compliant push button lock is designed for frameless glass doors and storefront glass doors.
The center lock glass keeper (sold separately) is specially machined to accept the strike from the Push Button Lock. If a center lock glass keeper is not required, a strike plate for the jamb is supplied with the push button lock assembly.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Differentiators: No-wiring push button lock for glass doors, ADA-compliant design, five finish options, compatible with 6" x 10" center lock cutouts, optional machined glass keeper for precise strike alignment.
Order SKU DL610LCPS or contact CRL for pricing and availability.
