CRL 6x10 Polished Stainless Center Door Lock w/ Deadlatch RHR Office

• Five lock functions: Office, Entrance, Passage, Storeroom, and Classroom
• Fits 1/2" (12 mm) monolithic tempered glass; custom units for other glass thicknesses available by special order
• Ships in under a week
• Available in five finishes
• Hassle-free installation — no cement or silicone required
• Jamb-mount strike plates available on special order

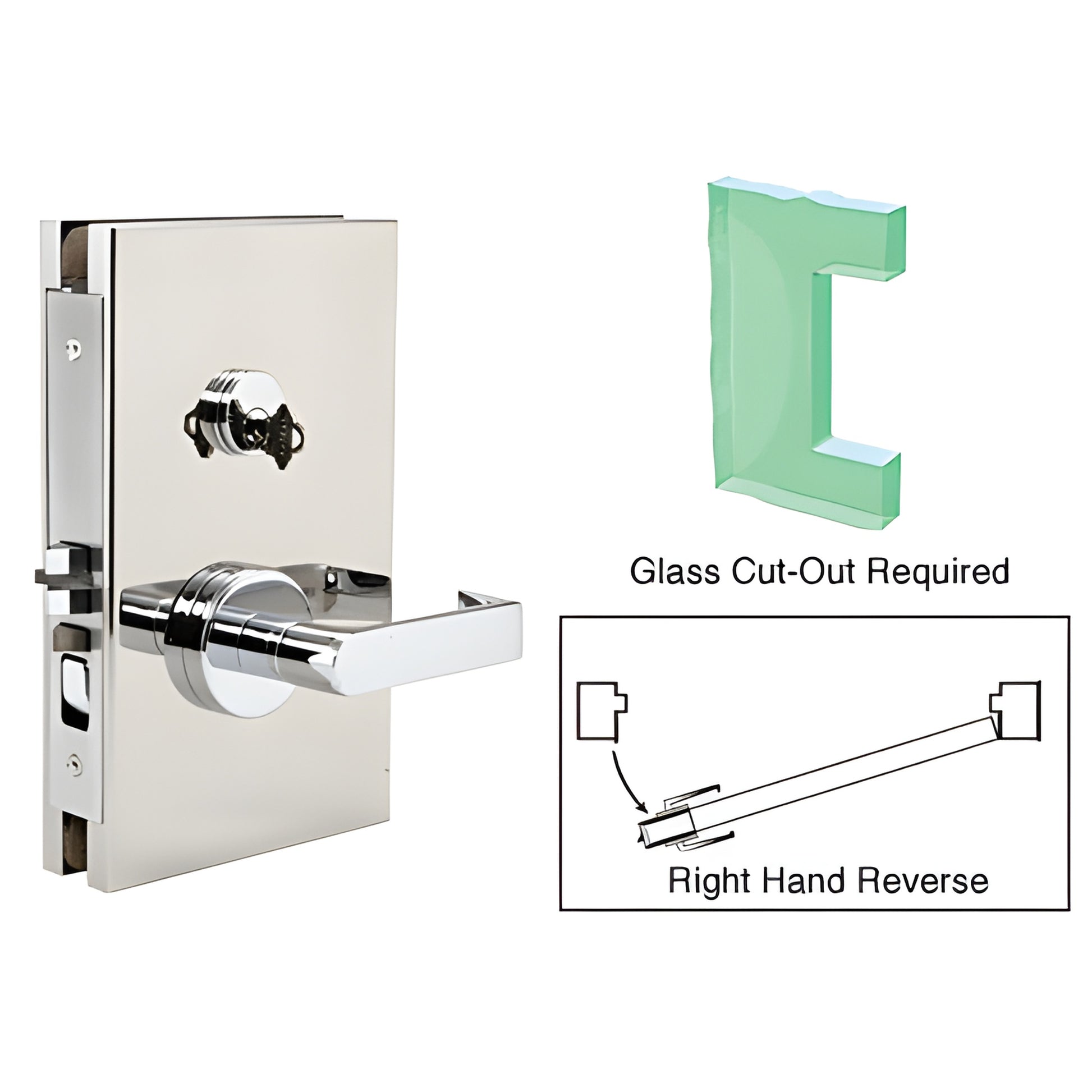

CRL 6" x 10" Center Locks with Deadlatch deliver versatile security for commercial and architectural glass doors. Designed for 1/2" (12 mm) tempered glass, these center locks require only a simple glass cut-out and are available left- and right-handed. Offered in five finishes, they provide reliable deadlatch protection without messy cement or silicone — a fast solution for storefronts, offices, and institutional glazing.

Office Lock Function: Latchbolt is operated by lever on either side (unless the outside lever is locked by the faceplate rocker) or by key from the outside. An auxiliary latchbolt deadlocks the main latchbolt to resist jimmying. Turning the inside lever always retracts the mechanism for safe egress.

Entrance Lock: Latchbolt operates by lever on either side except when the deadbolt is projected. Deadbolt is operated by key outside and thumbturn inside. Turning the inside lever retracts both latchbolt and deadbolt for immediate exit.

Passage Lock: Latchbolt operates by lever on either side. The inside lever always retracts the mechanism to allow exiting.

Storeroom Lock: Latchbolt operated by lever inside and by key outside; the outside lever is fixed. An auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Turning the inside lever always allows exit. Commonly specified with electric strikes.

Classroom Lock: Latchbolt operates by lever on either side except when the outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever remains operable for egress.

Stainless Steel Advisory:

Order the CRL 6" x 10" center lock for 1/
