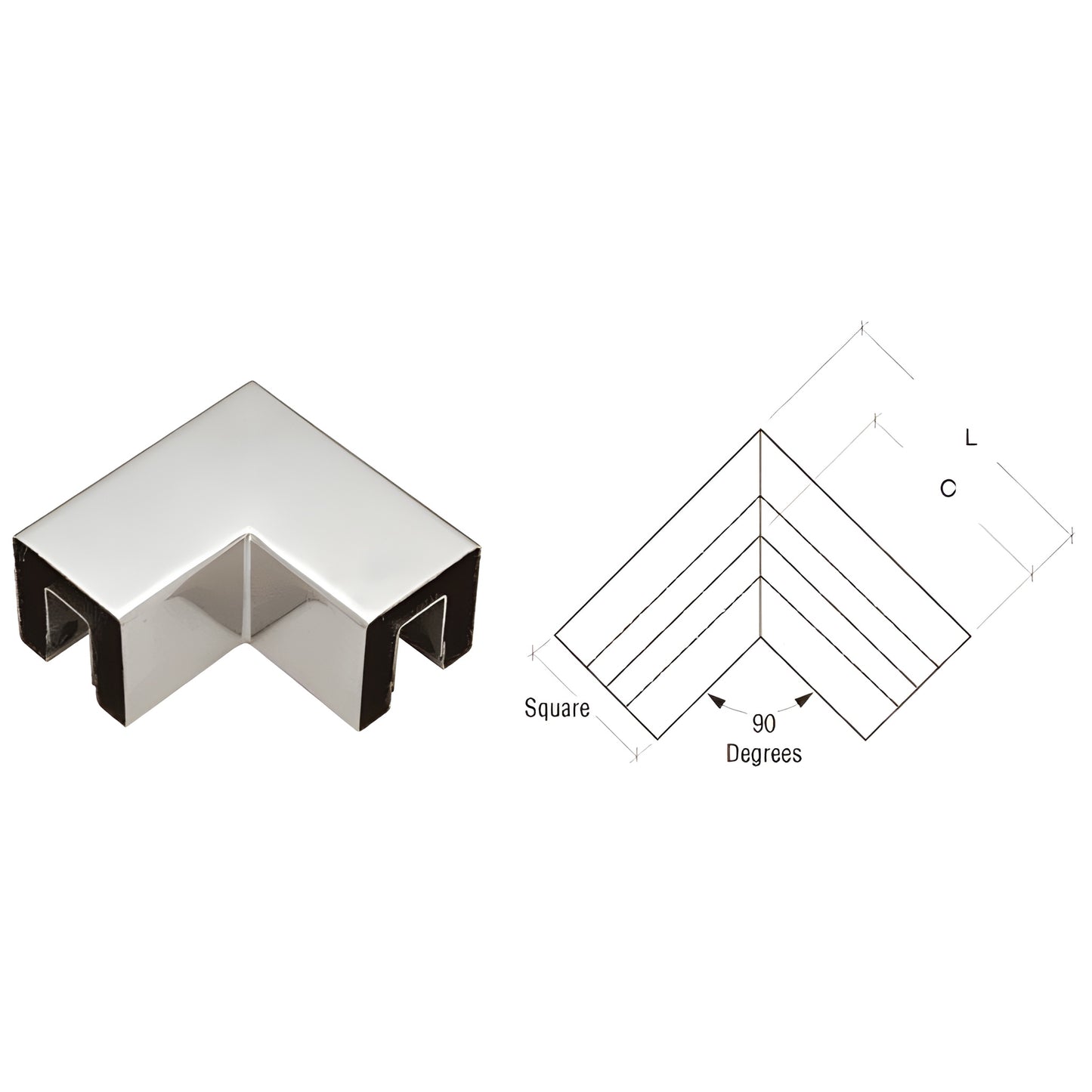

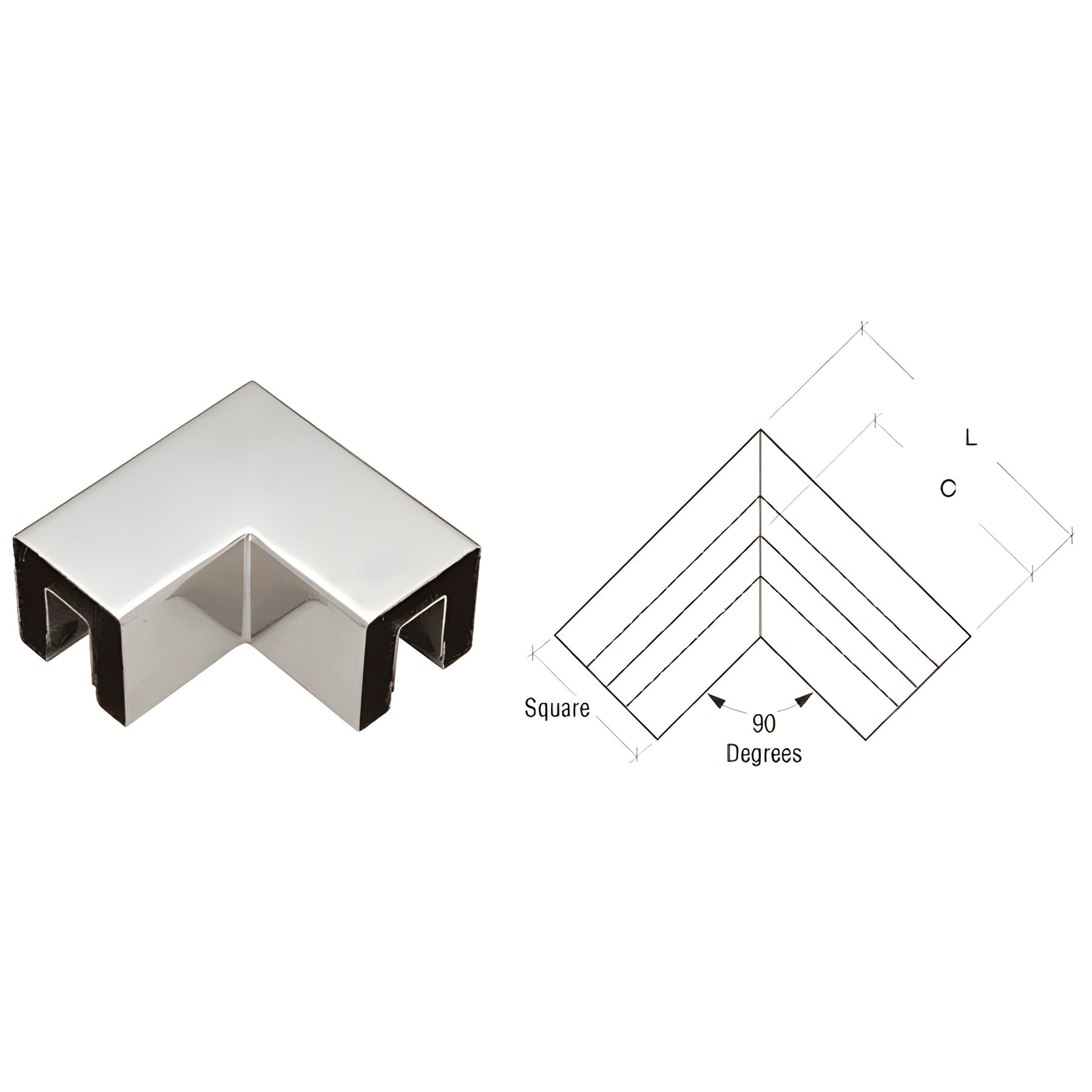

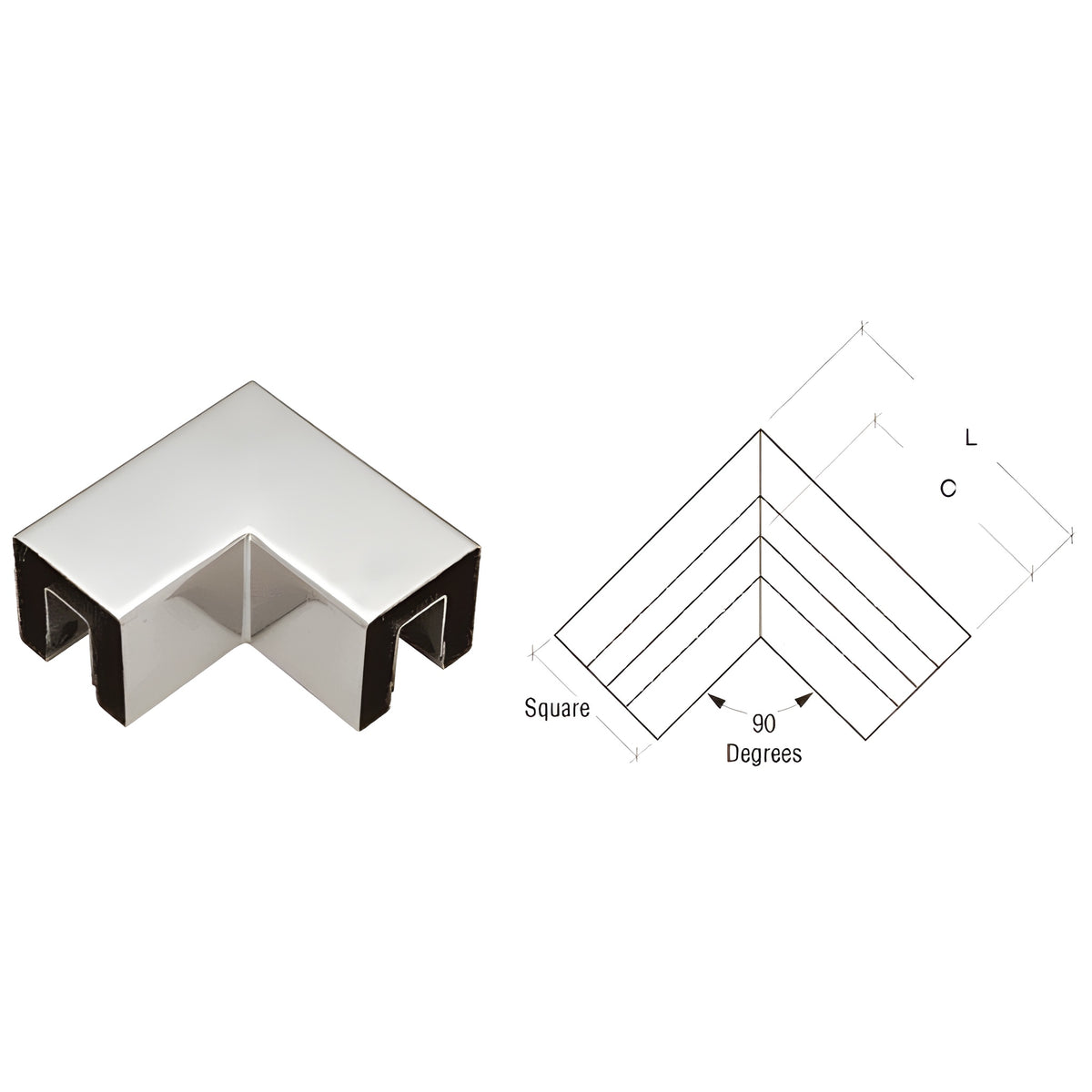

CRL Polished Stainless 90° Corner for 1-1/2" Square Glass Cap Rail

• New square profile — ready-to-install
• Welded and finished to match CRL Premium Cap Rail
• For 1/2" (12 mm) to 5/8" (16 mm) thick glass
• Two finishes available (standard 304 stainless; 316 available by special order)
• Requires two connector sleeves (not included)

CRL Interior Slip-Fit Horizontal Corners — SKU: GRS15HPS for 1/2" (12 mm) to 5/8" (16 mm) glass provide hairline joint assemblies with straight lengths of CRL Square Cap Rail. These stainless steel cap rail corners are fabricated, welded, finished, and individually packed for easy installation. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner (sleeves sold separately).

Each horizontal corner is finished to match CRL Premium Cap Rail. Standard alloy is 304 stainless steel; 316 stainless is available on special order — contact CRL Technical Sales for quotes or lead times.

Installation notes: Except for the GRS15 series cap rail corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. When using GRS15 series corners with 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.

Stainless Steel Advisory:

Need help or a quote for GRS15HPS stainless steel cap rail corners? Contact CRL Technical Sales or Customer Service to order or request pricing.
