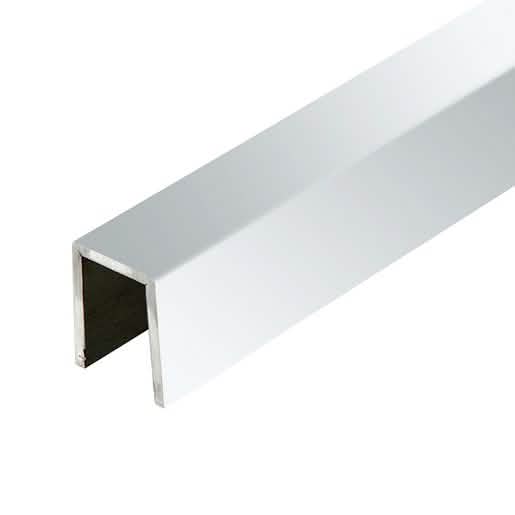

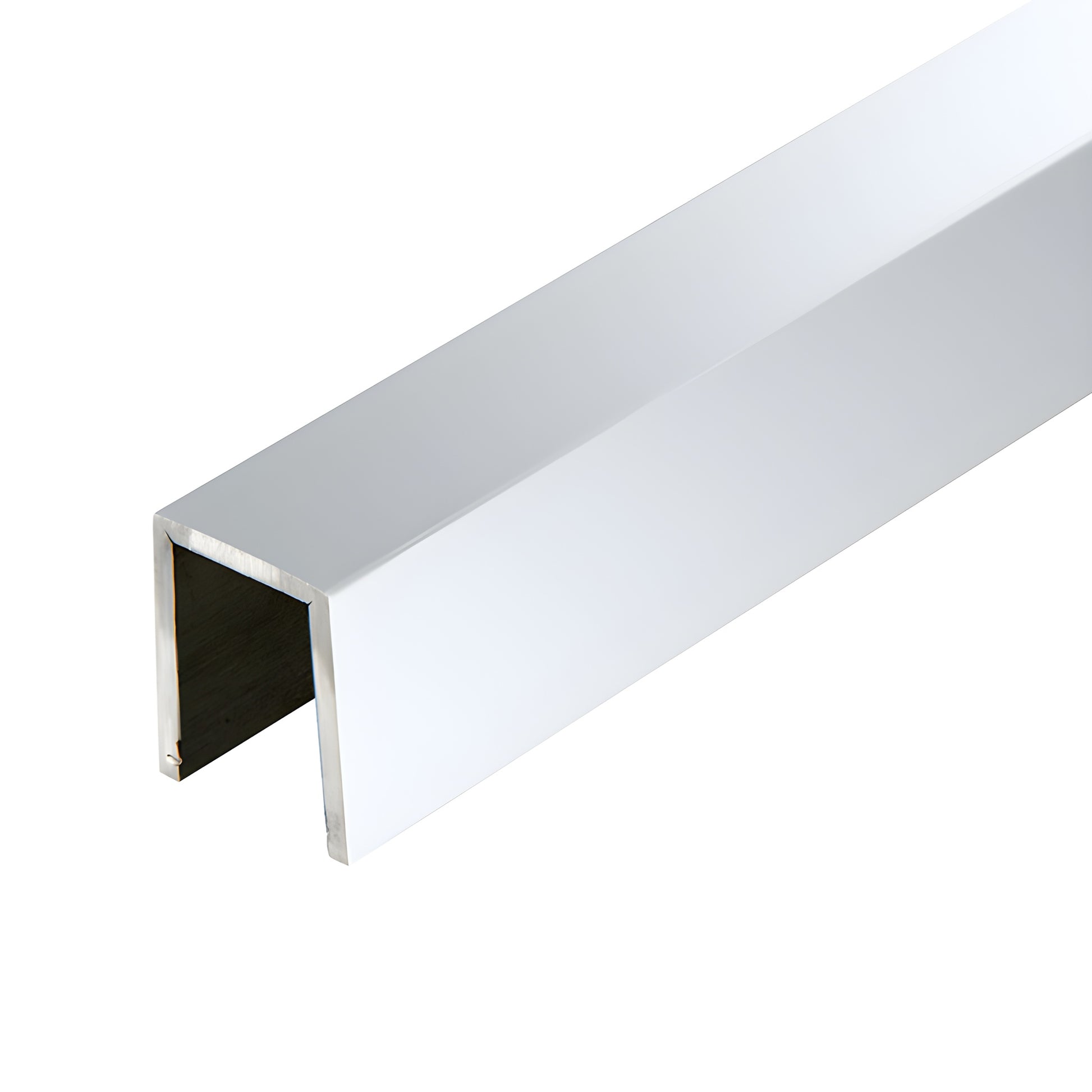

CRL Polished Stainless Steel 11-Gauge Cap Rail Crisp Corner
CRL Polished Stainless Steel 11-Gauge Cap Rail Crisp Corner
Regular price
$980.50 CAD
Regular price
Sale price
$980.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRLC10PS
Shipping Weight: 17.5 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.5 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)

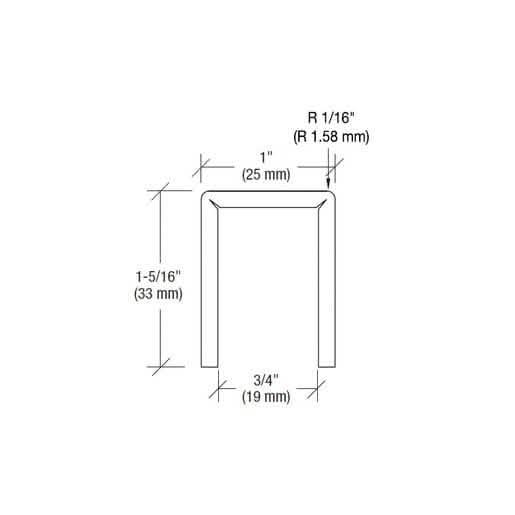

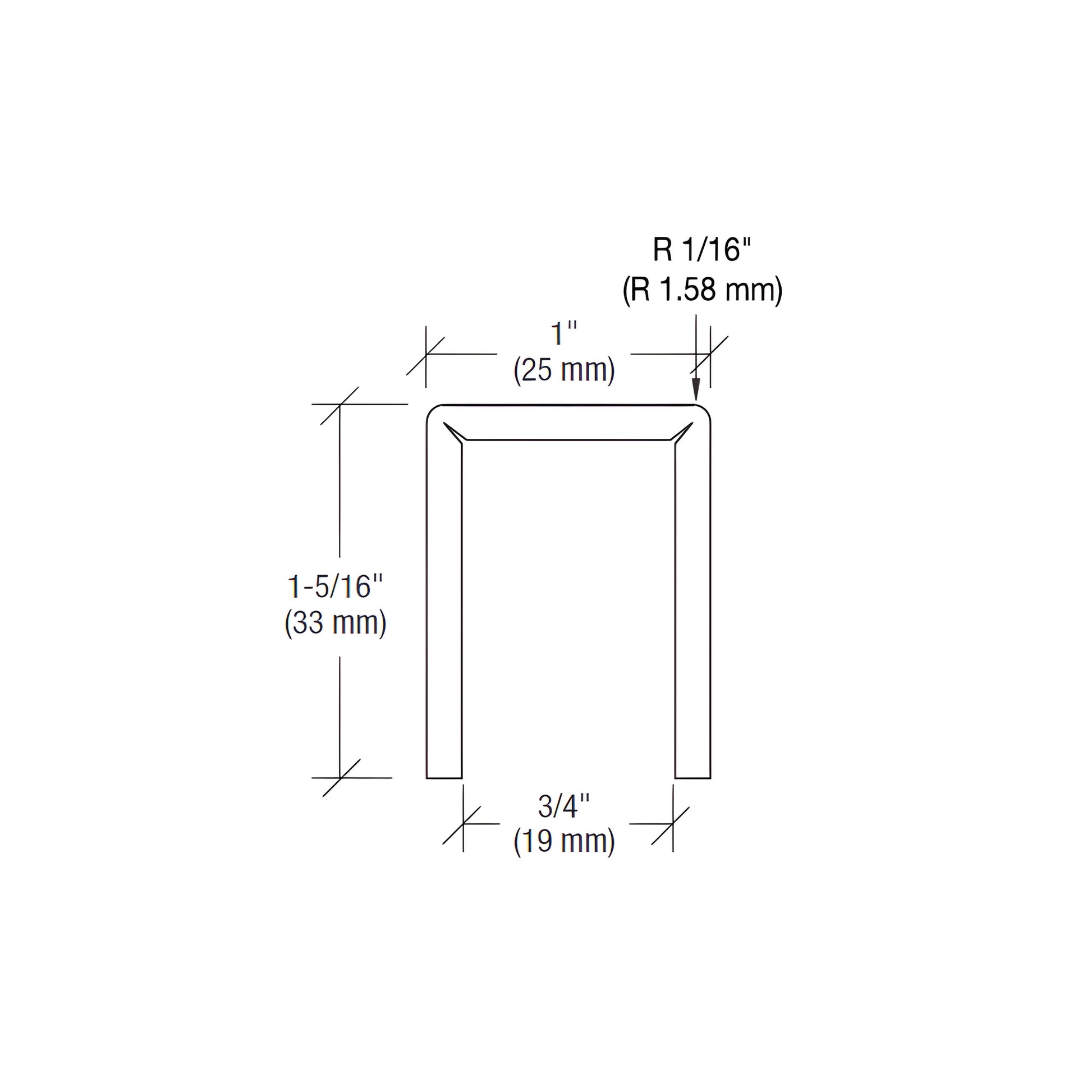

Height
1-5/16 in. (33 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Width
1 in. (25 mm)
Overview
- Crisp corner profile for 1/2" (12 mm) or 5/8" (16 mm) monolithic glass
- Designed as a low-profile top rail for glass guard rail applications
- Protects glass edges and secures glass panels together
- Available in two architectural finishes
- Connects to fabricated corners and end caps
CRL Crisp Corner Low Profile Cap Rail (SKU: GRLC10PS) is fabricated from 11 gauge 304 stainless steel to protect glass edges and secure panels in cap railing and guard rail systems. Its low-profile design provides a clean, continuous top rail for commercial and residential glass balustrades.
Installation Notes: For use with 1/2" (12 mm) glass, use GR5PV cap rail vinyl plus 95CBL silicone. For 5/8" (16 mm) glass, secure with 95CBL silicone and appropriate shims.
SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: 11 Gauge
Stock Length: 10' (3.05 m)
Typical Uses: Glass edge protection and panel retention in cap railing and guard rail installations
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the GRLC10PS low profile stainless steel cap rail today to protect glass edges and create a sleek guard rail top—contact us for pricing and availability.
